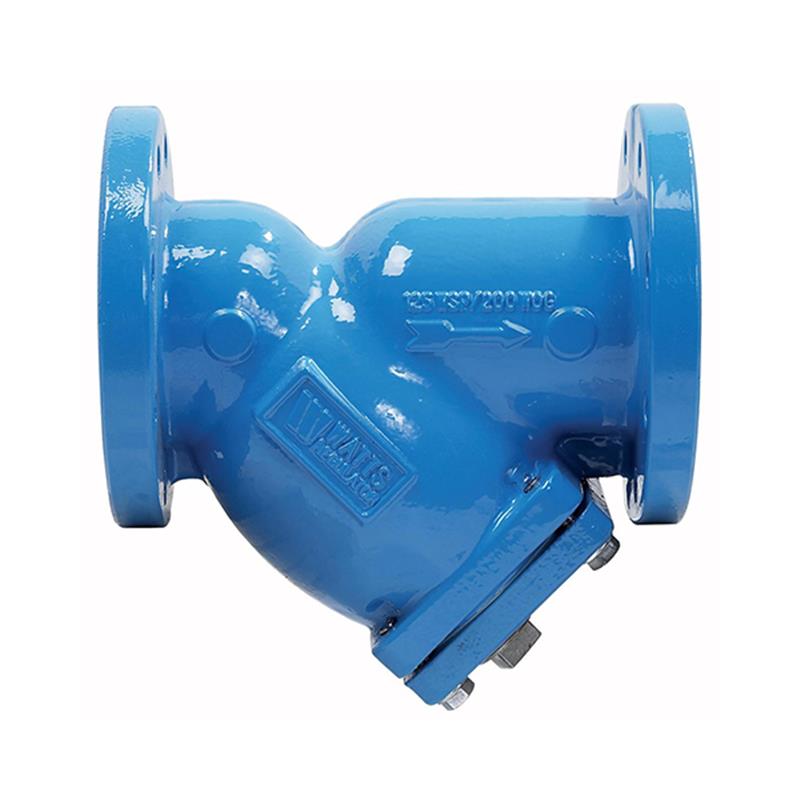

77F-DI-FDA-125 2 1/2" Watts Flanged X Flanged Cast Iron Epoxy Coated Interior/Exterior

Item Number: 0825210
1 1
$1,125.69
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 2 1/2 inch
  • Weight: 38.1 lb
  • Body Material: Lead Free Cast Iron
  • Screen Material: 304 Stainless Steel
  • Screen Perforation: 1/16 inch
  • Pattern: Wye
  • Coating: FDA Approved Epoxy Coated Interior/Exterior
  • Maximum Operating Pressure (WOG): 200 PSI @ 210°F
  • Certified to NSF/ANSI 372

Description

This Watts 77F-DI-FDA-125 is a 2 1/2 inch flanged wye pattern cast iron strainer, specifically engineered for FDA approved sanitary water applications. It features a durable Lead Free cast iron body with a double-coated, heat-fused epoxy finish on both interior and exterior surfaces, ensuring compliance and corrosion resistance. Filtration is handled by 304 stainless steel perforated screens, effectively removing debris. The strainer includes a cast iron flanged retainer cap and a drain/blowoff connection with a closure plug for easy maintenance. Its flanges conform to ANSI B16.1 Class 125, making it compatible with standard flanged piping systems. Certified to NSF/ANSI 372, it provides reliable performance up to 200 PSI WOG. Item number 0825210.

Help Me Connect

The Watts 77F-DI-FDA-125 strainer features flanged connections that conform to American National Standards Institute (ANSI) B16.1 Class 125 and WW-S-2739 Type 2. This means it is designed to connect to compatible flanged piping systems of the same size and pressure class.

  • The flanges connect to corresponding 2 1/2 inch Class 125 ANSI B16.1 flanges.
  • Ensure proper alignment and gasketing during installation for a secure, leak-free connection.
View full details

Additional Details

The Watts 77F-DI-FDA-125 is a 2 1/2 inch flanged wye pattern cast iron strainer designed for water service in FDA approved sanitary applications.

This strainer features 304 stainless steel perforated screens, a cast iron flanged retainer cap, and a drain/blowoff connection furnished with a closure plug for effective debris removal and easy maintenance.

Key Features

  • Lead Free* cast iron body, with wetted surfaces containing less than 0.25% lead by weight.
  • Double coated, heat fused epoxy coating on the interior and exterior surfaces ensures compliance for FDA approved sanitary applications.
  • Equipped with 304 stainless steel perforated screens for efficient filtration.
  • Includes a cast iron flanged retainer cap with gasket, tapped for a closure plug.
  • A drain/blowoff connection is furnished with a closure plug for convenient system flushing.
  • Flanges conform to American National Standards Institute (ANSI) B16.1 Class 125 and WW-S-2739 Type 2.

Specifications

  • Size: 2 1/2 inch
  • Body Material: Lead Free* Cast Iron (*wetted surface contains less than 0.25% lead by weight)
  • Screen Material: AISI 304 Stainless Steel
  • Screen Perforation: 1/16 inch
  • Pattern: Wye
  • Connection Type: Flanged
  • Flange Standard: ANSI B16.1 Class 125, WW-S-2739 Type 2
  • Coating: Double coated, heat fused epoxy (interior and exterior)
  • Maximum Operating Pressure (WOG, non-shock): 200 PSI @ 210°F (99°C)
  • Maximum Operating Pressure (WSP): 125 PSI @ 353°F (178°C)

Certificates & Approvals

  • NSF International Certified
  • Certified to NSF/ANSI 372

FAQs

What is the primary use of the Watts 77F-DI-FDA-125 strainer?

This strainer is primarily designed for water service in FDA approved sanitary applications, where it removes debris and particulates from the flow.

What material is the body of the strainer made from?

The body of the strainer is constructed from Lead Free cast iron, with wetted surfaces containing less than 0.25% lead by weight for compliance.

Is the interior and exterior of this strainer coated?

Yes, it features a double-coated, heat-fused epoxy coating on both the interior and exterior surfaces, which is suitable for FDA approved sanitary applications.

What type of screens are used in this strainer and what is their perforation size for the 2 1/2" model?

It uses 304 stainless steel perforated screens. For the 2 1/2 inch model, the screens have 1/16 inch perforations.

What are the pressure ratings for this strainer?

The maximum operating pressure is 200 PSI WOG (non-shock) at 210°F (99°C) and 125 PSI WSP at 353°F (178°C).
