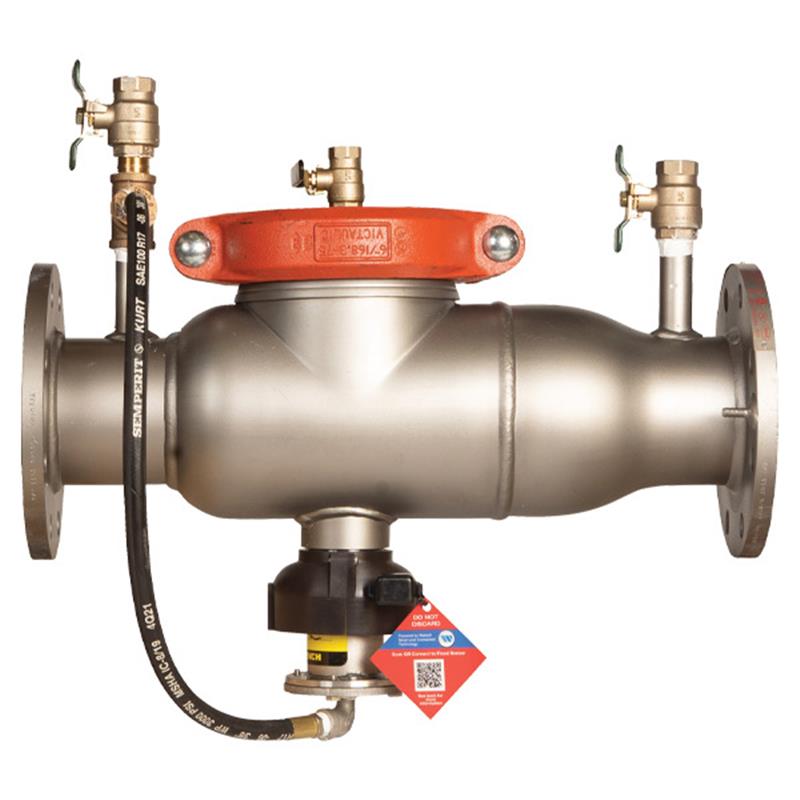

8 4000SS-LG-FS

Item Number: F0690467
1 1
$21,064.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 8 inch Reduced Pressure Zone Backflow Preventer
  • Weight: 225.0 lb
  • Lead Free Stainless Steel construction
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Flood sensor with SentryPlus Alert® technology
  • Less shutoff valves (LG option)
  • Short end-to-end dimensions for easy retrofit
  • Approved to ASSE 1013, CSA B64.5

Description

This 8 inch lead free reduced pressure zone backflow preventer assembly (LG option) is engineered to safeguard potable water supplies from contamination due to backsiphonage and backpressure from hazardous cross-connections. Featuring a lightweight, corrosion-resistant stainless steel body and a patented cam-check assembly, it ensures maximum flow with low pressure drop. The integrated SentryPlus Alert® flood sensor detects excessive relief valve discharges, providing early notification when paired with an optional connection kit. With compact dimensions for easy retrofitting and a maximum working pressure of 175 psi, this assembly is ideal for continuous pressure piping applications. Item number F0690467.

Help Me Connect

Flood Sensor Activation

This backflow preventer includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges. To activate the alert features, an add-on connection kit is required. Without this kit, the flood sensor functions as a passive component with no external communication. Compatible connection kit options include:

  • Building Management System (BMS) integration
  • Cellular communication
  • Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform via Wi-Fi

Installation

This assembly is supplied without shutoff valves (LG option) and is designed for flanged connections. It should be installed in continuous pressure piping applications to protect potable water supplies from health hazards at cross-connections.

View full details

Additional Details

This 8 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure.

Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly without the shutoff valves consists of a short lay length lightweight stainless steel body, test cocks, corrosive resistant stainless steel bottom mounted relief valve, and a patented cam-check assembly. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.

Key Features

  • Stainless steel construction provides long-term corrosion resistance and maximum strength.
  • Body is half the weight of competitive designs, reducing installation and shipping costs.
  • Short end-to-end dimensions make retrofitting easy.
  • Cam-check assembly provides maximum flow at low pressure drop.
  • No special tools required for servicing.
  • Compact construction allows for smaller enclosures.
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.
  • Integrated flood sensor on relief valve for flood detection.
  • Flood alert feature activated with an add-on sensor connection kit, compatible with BMS and cellular network communication, and Sensor Control Monitor for BAS integration via RS-485 Modbus or Nexa® platform via Wi-Fi.

An add-on connection kit is required to activate the flood sensor's alert features. Without this kit, the flood sensor is a passive component with no communication. Use of the flood sensor does not replace the need for proper drainage in the event of a discharge, nor does it replace compliance with all required installation, operation, and maintenance instructions, codes, and regulations.

Specifications

General

  • Size: 8 inch
  • Assembly Type: Reduced Pressure Zone (RPZ) Backflow Preventer
  • Lead Free: Yes (<0.25% lead by weight)
  • Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Shutoff Valves: Less Gates (LG option)
  • Relief Valve: Stainless steel, bottom mounted, balanced rolling diaphragm
  • Flood Sensor: Included (SentryPlus Alert® technology)
  • End-to-End Dimension: 52 1/2 inches (1334 mm)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Flange Dimension: AWWA Class D
  • Weight (Less Gates): 179 lb (81 kg)

Certificates & Approvals

  • ASSE 1013
  • CSA B64.5
  • UL Classified (for OSY models)
  • FM Approved (for OSY models)

FAQs

What is the primary purpose of this backflow preventer?

This 8 inch reduced pressure zone (RPZ) backflow preventer is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply. It protects against both backsiphonage and backpressure in continuous pressure piping applications and at health hazard cross-connections.

Does this backflow preventer come with shutoff valves?

No, this specific model (LG option) is supplied without shutoff valves. It is designed to be installed between existing isolation valves in your piping system.

How does the flood sensor work, and is it active out of the box?

The assembly includes a SentryPlus Alert® flood sensor on the relief valve to detect excessive water discharges. To activate its alert features, an add-on connection kit is required. Without this kit, the sensor is a passive component and does not communicate.

What materials are used in the construction of this backflow preventer?

The main valve body and all internal metal parts are constructed from 300 Series stainless steel for long-term corrosion resistance and strength. The check assembly is made of Noryl®.

What are the operating pressure and temperature limits for this device?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 33°F to 110°F (0.5°C to 43°C).
