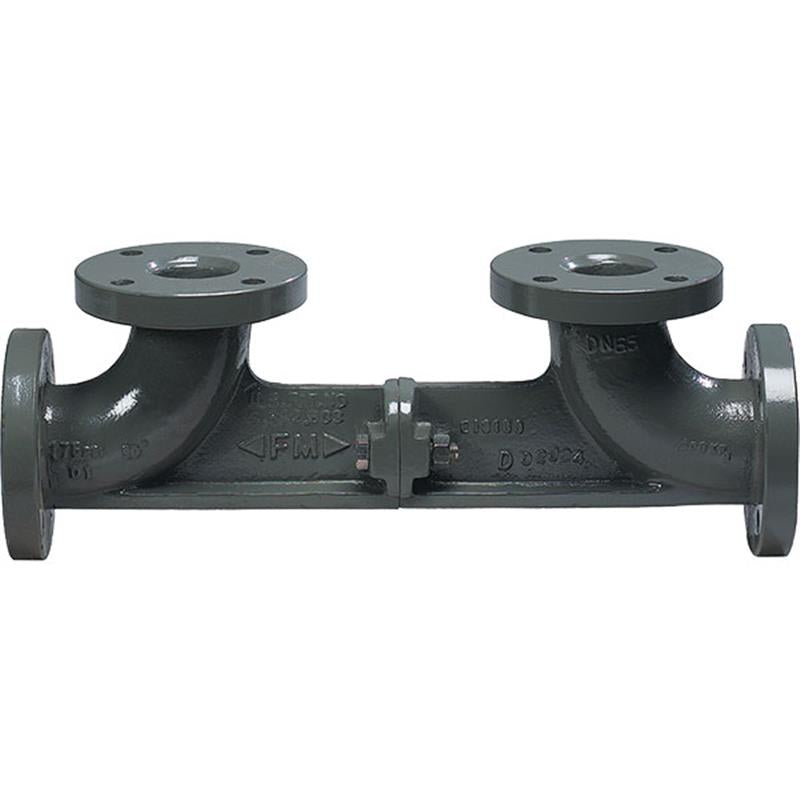

8 611-Flange x Flange

Item Number: 905208
1 1
$2,391.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 8 Inch Flange x Flange connection
  • Weight: 323.0 lb
  • Fusion epoxy coated ductile iron construction
  • Maximum Working Pressure: 175 PSI
  • Operating Temperature Range: 32°F to 140°F
  • Eliminates thrust block requirements
  • ANSI AWWA C153 A21.53-88 Flanges
  • Stainless steel fasteners
  • Lead Free* construction (< 0.25% lead by weight)

Description

The 8-inch FEBCO Series 611 Valve Setter is a flange by flange mechanical joint designed to simplify the installation of MasterSeries N-pattern backflow prevention valves, including models LF870V, LF876VST, and LF880V. Constructed from durable fusion epoxy coated ductile iron with stainless steel fasteners, it provides integral support between elbows, eliminating the need for thrust blocks. This corrosion-resistant setter has a maximum working pressure of 175 PSI and operates in temperatures from 32°F to 140°F. Its Lead Free* construction ensures compliance.

Help Me Connect

Compatibility & Connections

This 8 inch valve setter is specifically designed to augment the installation of MasterSeries N-pattern backflow preventers, including models LF870V, LF876VST, and LF880V. It features flange by flange connections to integrate seamlessly into your piping system.

  • Connects to MasterSeries N-pattern backflow preventers.
  • Uses flange x flange connections.
  • Note: Mechanical joint accessories, flange bolts, and gaskets are not included, except for the center joint.
View full details

Additional Details

This 8 inch flange by flange valve setter, part of the FEBCO 611 Series, is constructed of fusion epoxy coated ductile iron. It is designed to augment the installation of MasterSeries N-pattern backflow prevention valves, providing integral support and eliminating the need for thrust blocks downstream between elbows.

Features

  • Corrosion resistant fusion epoxy coated.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Flanges comply with ANSI AWWA C153 A21.53-88 standards.

Construction & Compliance

  • Body Material: Ductile iron A536 GR 65-45-12.
  • Coating: Fusion epoxy coated internal and external (AWWA C550).
  • Bolts & Nuts: Stainless steel.
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free* installation requirements.

Specifications

  • Series: 611
  • Size: 8 inch (200mm)
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Flange Standard: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of the FEBCO 611 Valve Setter?

It is designed to augment the installation of MasterSeries N-pattern backflow prevention valves by providing integral ductile iron support between elbows. This feature eliminates the need for thrust blocks or other restraints at the point of installation.

What backflow preventer models is this valve setter compatible with?

This 8-inch valve setter is specifically designed to facilitate the installation of MasterSeries N-pattern backflow preventers, including models LF870V, LF876VST, and LF880V.

What materials are used in the construction of this valve setter?

The body is constructed from durable ductile iron (A536 GR 65-45-12) with a fusion epoxy coating internally and externally (AWWA C550). It features stainless steel bolts and nuts for secure connections.

What are the maximum pressure and temperature ratings for this unit?

The FEBCO 611 Valve Setter has a maximum working pressure of 175 PSI (12.1 bar) and is rated for a temperature range of 32°F to 140°F (0°C to 60°C).

Are additional components required for installation, and are they included?

Mechanical joint accessories, flange bolts, and gaskets are generally not included with the valve setter, except for the center joint, and must be sourced separately for complete installation.
