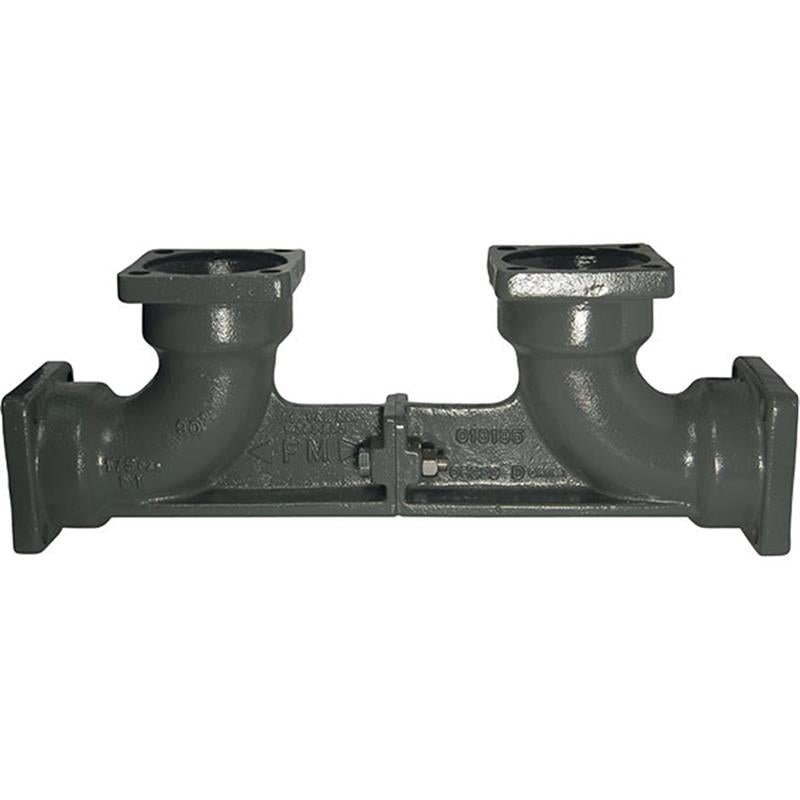

8 611-Mechanical Joint x Mechanical Joint

Item Number: 905332
1 1
$2,391.95
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 8 inch (200 mm)
  • Weight: 335.0 lb
  • Connection Type: Mechanical Joint
  • Body Material: Ductile iron A536 GR 65-45-12
  • Corrosion resistant fusion epoxy coated
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Lead Free* construction
  • Eliminates thrust block requirements

Description

The FEBCO 8 inch 611 Series Mechanical Joint valve setter is designed to simplify and enhance the installation of "N" series backflow prevention valves, including MasterSeries LF870V, LF876VST, and LF880V models. Constructed from fusion epoxy coated ductile iron with stainless steel fasteners, it offers excellent corrosion resistance and durability. This valve setter eliminates the need for external thrust blocks by integrating support that transfers downstream thrust. It features mechanical joint connections and complies with Lead Free installation requirements, making it suitable for non-health hazard applications. Item number 905332.

Help Me Connect

This 8 inch FEBCO 611 Series Valve Setter is designed with Mechanical Joint (MJ) connections on both ends.

It is specifically engineered to augment the installation of "N" series backflow prevention valves, particularly the MasterSeries LF870V, LF876VST, and LF880V models. The valve setter's integral design facilitates connection directly into your piping system using standard mechanical joint restraint devices as required by local conditions.

  • Connecting Components Not Included: Please note that mechanical joint accessories, flange bolts, and gaskets are not included with this valve setter, except for the center joint components. These must be acquired separately for a complete installation.
View full details

Additional Details

The FEBCO 8 inch 611 Series Mechanical Joint by Mechanical Joint valve setter is designed to augment the installation of "N" series backflow prevention valves, particularly MasterSeries LF870V, LF876VST, and LF880V models. Its integral ductile iron support between elbows transfers downstream thrust, eliminating the need for thrust block requirements between elbows.

Features

  • Corrosion resistant fusion epoxy coating ensures longevity.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Lead Free* construction meets installation requirements. *The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Construction Details

  • Body is constructed from ductile iron A536 GR 65-45-12.
  • Internal and external surfaces are fusion epoxy coated to AWWA C550 standards.
  • Bolts and nuts are made of stainless steel for durability.

Specifications

  • Size: 8 inch (200 mm)
  • Connection Type: Mechanical Joint (MJ)
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Certificates & Approvals

  • FM Approved
  • Flange Standard: ANSI AWWA C153 A21.53-88 (for integral flanges)

FAQs

What is the primary purpose of the FEBCO 611 Series Valve Setter?

The FEBCO 611 Series Valve Setter is designed to augment the installation of "N" series backflow prevention valves, such as MasterSeries LF870V, LF876VST, and LF880V, by providing integral support and eliminating the need for thrust blocks.

What materials are used in the construction of this valve setter?

The valve setter features a body made of ductile iron A536 GR 65-45-12, internal and external fusion epoxy coating to AWWA C550 standards, and stainless steel bolts and nuts.

What are the maximum operating pressure and temperature limits for this product?

This valve setter has a maximum working pressure of 175 psi (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

Are connecting accessories like bolts and gaskets included with the valve setter?

No, mechanical joint accessories, flange bolts, and gaskets are generally not included with the valve setter, except for the center joint components.

Is the FEBCO 611 Series Valve Setter considered Lead Free?

Yes, it features Lead Free* construction. The wetted surface of this product, when contacted by consumable water, contains less than 0.25% of lead by weight, complying with Lead Free installation requirements.
