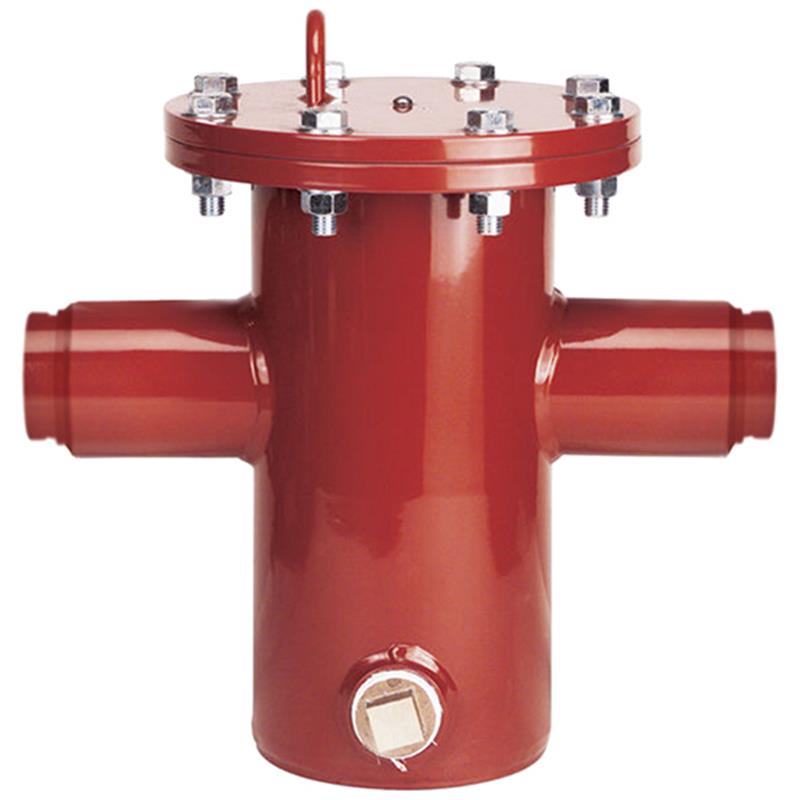

8 7001-1-Clean Out-Flange x Flange

Item Number: 0690891
1 1
$15,058.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Product Type: Fire Service Strainer
  • Weight: 535.0 lb
  • Size: 8 inch (200mm)
  • Body Material: Epoxy Coated Steel
  • Screen Material: 304 Stainless Steel
  • Connection Type: Flange x Flange
  • Maximum Operating Pressure: 175 PSI
  • One Cleanout Port
  • UL Listed and FM Approved

Description

The 8 inch Ames Fire and Waterworks Series 7001 fire service strainer is an epoxy-coated steel basket strainer designed for non-potable water spray systems. It protects sprinkler heads and other fire system components from clogging due to large particles. Featuring flange by flange connections and one cleanout port, this strainer has a 304 stainless steel element with 0.25 inch perforations. It is UL Listed 321 and FM Approved Class 5551, with a maximum working pressure of 175 psi. The design allows for filter removal without taking the body out of line. Item number 0690891.

Help Me Connect

Connections

  • The 8 inch flanged connections are designed to mate with AWWA Class "D" flanges, typically found in fire service systems.
  • This strainer is installed upstream of fire system devices such as meters, backflow preventers (or detector check valves), and flow alarms to protect them from large particles.
View full details

Additional Details

This 8 inch Ames Fire and Waterworks Series 7001 fire service strainer is designed for use in non-potable water spray systems to protect against clogging caused by particles fouling sprinkler heads.

The strainer is typically installed upstream of devices like meters, backflow preventers, and flow alarms to protect them from damage by large particles.

Features

  • Epoxy coated fabricated steel body and cover
  • Flange x flange connections
  • Single cleanout port
  • Large solids trap designed to minimize screen blockage
  • Strainer element made of 304 stainless steel with 0.25 inch diameter perforations
  • Designed for easy removal of the filter without removing the body from the line

Materials

  • Body & Cover: Fusion-bonded epoxy coated steel
  • Screen: 304 stainless steel, 0.25 inch diameter perforation
  • Clean-Out Plug: Brass or Bronze
  • Flanges: AWWA Class "D"

WARNING: This product is illegal for use in plumbing systems providing water for human consumption in the United States. Always consult local water authorities, building, and plumbing codes before installation.

Specifications

  • Product Type: Fire Service Strainer
  • Series: 7001
  • Size: 8 inch (200mm)
  • Body Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation: 0.25 inch diameter
  • Clean-Out Plug Material: Brass or Bronze
  • Connection Type: Flange x Flange
  • Flange Standard: AWWA Class "D"
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary purpose of the 8 inch Ames Series 7001 fire service strainer?

Its primary purpose is to protect water spray systems and their components, such as sprinkler heads, meters, and backflow preventers, from clogging or damage caused by large particles in non-potable water.

What type of connections does this strainer use?

This strainer features 8 inch flange by flange connections, adhering to AWWA Class "D" flange standards for fire system compatibility.

What material is the strainer body and internal screen made from?

The body and cover are made from fusion-bonded epoxy coated steel, while the strainer element (screen) is constructed from 304 stainless steel with 0.25 inch diameter perforations.

What is the maximum operating pressure and temperature for this strainer?

The strainer has a maximum working pressure of 175 psi (12.1 bar) and can handle water temperatures up to 140°F (60°C).

Is this product approved for fire service use?

Yes, the Ames Series 7001 strainer is CULUS Listed 321 and FM Approved Class 5551, indicating its suitability and certification for fire protection applications.
