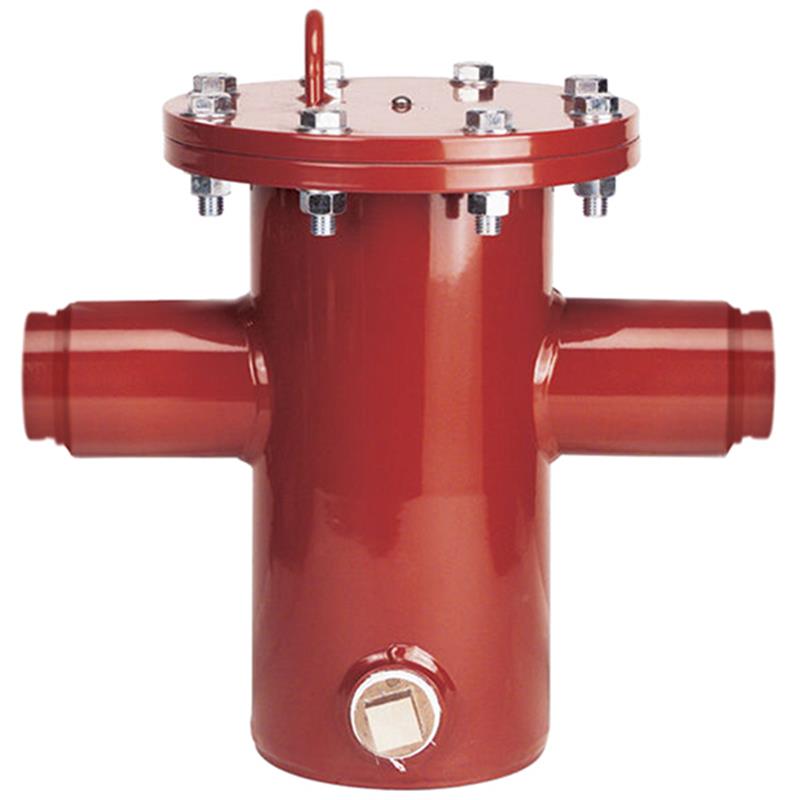

8 7001-1-Clean Out-Groove x Groove

Item Number: 0690974
1 1
$15,058.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 8 inch
  • Weight: 500.0 lb
  • Body Material: Fusion-bonded epoxy coated steel
  • Connections: Grooved
  • Cleanout Ports: 1
  • Strainer Screen Material: 304 Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • UL Listed and FM Approved
  • Designed for non-potable fire spray systems

Description

The Ames Fire & Waterworks 8 inch Series 7001 fire service strainer is an essential component for protecting water spray fire systems. This robust strainer prevents clogging caused by particles 1/8 inch or larger, safeguarding critical devices such as sprinkler heads, meters, and backflow preventers from damage. Constructed with a fusion-bonded epoxy coated steel body and a 304 stainless steel strainer element, it offers excellent durability. Featuring 8 inch grooved connections and one cleanout port for simplified maintenance, it is UL Listed and FM Approved, ensuring reliability and compliance for non-potable fire protection applications. It operates at a maximum working pressure of 175 PSI.

Help Me Connect

Installation & Compatibility

The Ames Fire & Waterworks Series 7001 strainer is designed to be installed in fire service protection applications utilizing water spray systems. It features 8 inch grooved connections for easy integration into existing or new piping systems.

  • Typically installed upstream of fire devices such as meters, backflow preventers (or detector check valves), and flow alarms to protect them from debris.
  • Compatible with piping systems requiring an 8 inch grooved connection.
View full details

Additional Details

The 8 inch Ames Fire & Waterworks Series 7001 Fire Service Strainer is designed for fire service protection applications. It safeguards water spray systems from clogging by trapping foreign particles and debris before they can foul sprinkler heads and damage upstream devices like meters, backflow preventers, and flow alarms.

Connections

  • Features 8 inch grooved connections for both inlet and outlet.

Features

  • Equipped with one cleanout port for easy maintenance.
  • Designed with a large solids trap to minimize screen blockage.
  • Internal 304 stainless steel strainer element for effective debris capture.
  • Body and cover are made from fusion-bonded epoxy coated steel for durability and corrosion resistance.

Application

  • Used in non-potable water spray systems to protect against clogging from particles 1/8 inch diameter or larger.
  • Protects fire system devices such as meters, backflow preventers, and flow alarms from damage caused by large particles.

Specifications

General

  • Product Series: 7001
  • Nominal Size: 8 inch (200 mm)
  • Body and Cover Material: Fusion-bonded epoxy coated steel
  • Strainer Screen Material: 304 Stainless Steel
  • Screen Perforation: 0.25 inch diameter
  • Clean-Out Plug Material: Brass or Bronze
  • Groove Standard: AWWA C606 "D"
  • Cleanout Ports: 1

Performance

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)

Certificates & Approvals

  • UL Listed
  • FM Approved
  • Massachusetts State Approved (MA 321)

FAQs

What is the primary purpose of the Ames Series 7001 Fire Service Strainer?

The primary purpose is to protect water spray fire systems from clogging and damage caused by foreign particles. It prevents debris 1/8 inch or larger from fouling sprinkler heads and other sensitive fire system devices.

What type of connections does this 8-inch strainer have?

This 8-inch Series 7001 strainer features grooved connections on both the inlet and outlet. These connections are designed to meet AWWA C606 'D' standards.

What materials are used in the construction of this strainer?

The body and cover are made from fusion-bonded epoxy coated steel for corrosion resistance and durability. The internal strainer element is constructed from 304 stainless steel.

Is this strainer suitable for potable water systems?

No, this product is specifically designed for non-potable water applications. It is illegal to use this product in plumbing systems providing water for human consumption, such as drinking or dishwashing, in the United States.

What are the certifications for the Ames Series 7001 strainer?

The Ames Series 7001 strainer is UL Listed, FM Approved, and approved by the State of Massachusetts (MA 321) for fire service applications.
