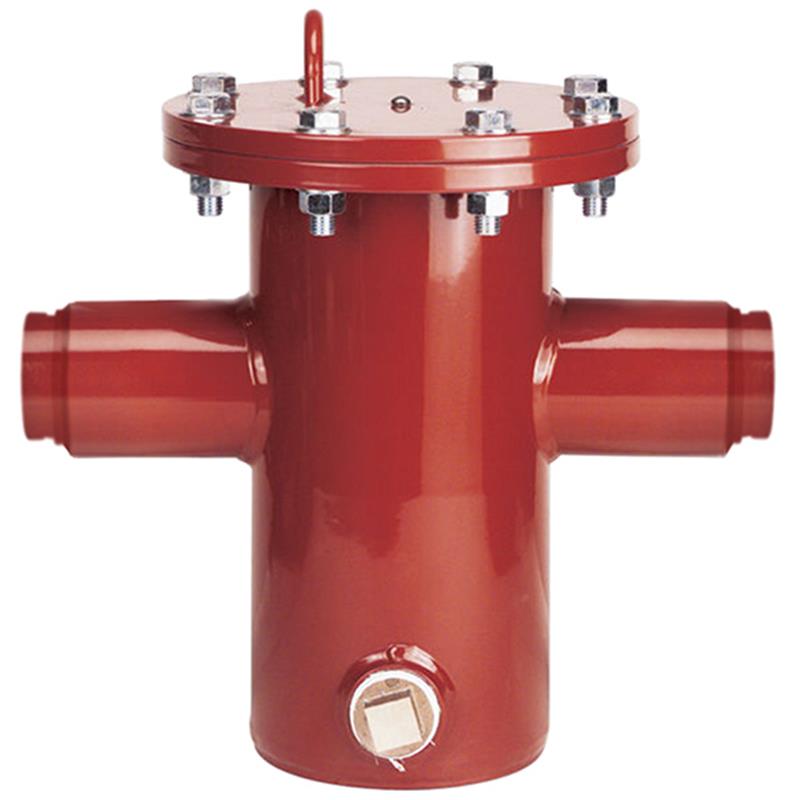

8 7002-2-Clean Outs-Flange x Flange

Item Number: 0691002
1 1
$15,058.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 8 inch fire service basket strainer
  • Weight: 570.0 lb
  • Fusion-bonded epoxy coated steel body
  • 304 stainless steel strainer element
  • Flange x Flange connections
  • Two cleanout ports included
  • Maximum Working Pressure: 175 PSI
  • UL Listed 321
  • FM Approved Class 5551

Description

This 8 inch Ames Fire & Waterworks Series 7002 fire service strainer is designed to protect water spray systems from clogging by trapping large particles. It features a durable epoxy-coated steel body, 304 stainless steel strainer element, and two cleanout ports for easy maintenance. Equipped with flange x flange connections, this strainer is suitable for non-potable fire protection applications. It boasts a maximum working pressure of 175 PSI and is UL Listed and FM Approved. This strainer ensures critical fire system components remain free of debris, enhancing system reliability and longevity. Item number 0691002.

Help Me Connect

Connections

  • The 8 inch flanges connect to matching 8 inch AWWA Class "D" flanged piping components.
  • Typically installed upstream of devices like meters, backflow preventers, or flow alarms in fire sprinkler systems.
View full details

Additional Details

This 8 inch Ames Fire & Waterworks Series 7002 fire service strainer is designed for use in non-potable water spray systems to protect against clogging from large particles.

Applications

  • Used in non-potable water spray systems to protect against clogging caused by particles fouling sprinkler heads.
  • Designed to trap foreign material 1/4 inch diameter or larger.
  • Typically installed upstream of devices in the system, including meters, backflow preventers (or detector check valves), and flow alarms.

Construction & Features

  • Features an epoxy-coated fabricated steel body.
  • Equipped with flange x flange connections.
  • Includes two cleanout ports for easy maintenance.
  • Large solids trap design helps to minimize screen blockage.
  • Strainer element is constructed from 304 stainless steel with .25 inch diameter perforations.
  • Designed to permit removal of the filter for replacement and repair without removing the body from the line.
It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult your local water authority, building, and plumbing codes before installation.

Specifications

  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation Diameter: .25 inch
  • Clean-Out Plug Material: Brass or Bronze
  • Connection Type: Flange x Flange
  • Flange Standard: AWWA Class "D"
  • Size: 8 inch
  • Cleanouts: Two
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)
  • Nominal Rated Flow: 2100 GPM (7980 LPM)

Certificates & Approvals

  • UL Listed 321
  • FM Approved Class 5551

FAQs

What is the primary use of this 8 inch fire service strainer?

This strainer is used in non-potable water spray systems to protect them from clogging by trapping foreign particles 1/4 inch in diameter or larger, safeguarding critical components like sprinklers, meters, and backflow preventers.

What materials are used for the body and strainer element?

The body and cover are made from fusion-bonded epoxy coated steel for durability, and the strainer element is constructed from 304 stainless steel with .25 inch diameter perforations.

What type of connections does this strainer have?

This strainer features flange x flange connections, designed to connect to matching AWWA Class "D" flanged piping components in a fire protection system.

What is the maximum working pressure for this device?

The maximum working pressure for this 8 inch fire service strainer is 175 PSI (12.1 bar).

How many cleanout ports does this specific model have?

This Series 7002 strainer is equipped with two cleanout ports, facilitating easier maintenance and debris removal.
