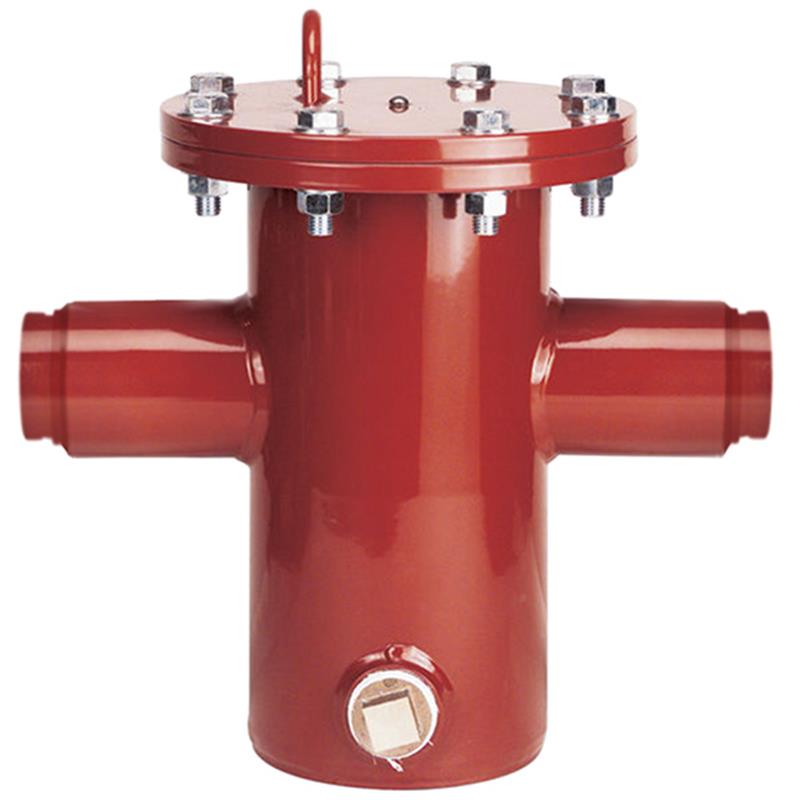

8 7002-2-Clean Outs-Groove x Groove

Item Number: 0691047
1 1
$15,058.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 8 Inch Fire Service Strainer
  • Weight: 500.0 lb
  • Two Cleanout Ports
  • Groove x Groove Connections
  • Epoxy Coated Steel Body
  • 304 Stainless Steel Strainer Element
  • Maximum Working Pressure: 175 psi
  • UL Listed, FM Approved
  • Protects fire systems from clogging

Description

The Ames Fire & Waterworks Series 7002 is an 8 inch UL/FM approved fire service basket strainer, specifically engineered to protect non-potable water spray systems from clogging. Its durable epoxy-coated steel body and 304 stainless steel screen with 0.25 inch perforations effectively trap particles 1/4 inch or larger. Featuring two cleanout ports and groove x groove connections, this strainer simplifies maintenance and installation. It operates up to 175 psi and 140°F, safeguarding meters, backflow preventers, and flow alarms from debris damage in fire protection applications.

Help Me Connect

Connections

This 8 inch fire service strainer features grooved connections on both ends, designed for easy installation into compatible grooved piping systems. It is typically installed upstream of critical fire system devices such as meters, backflow preventers (detector check valves), and flow alarms to protect them from particle damage and clogging.

Compatibility

  • Designed for use in non-potable water spray systems for fire protection.
  • Compatible with piping systems utilizing AWWA C606 grooved couplings.
  • Suitable for systems with maximum working pressures up to 175 psi and water temperatures up to 140°F.
View full details

Additional Details

This 8 inch Ames Fire & Waterworks Series 7002 fire service strainer is designed for non-potable fire protection systems. It safeguards water spray systems and other devices by trapping large particles, preventing clogging of sprinkler heads and damage to upstream equipment.

Features

  • Equipped with an epoxy coated fabricated steel body for durability.
  • Features two cleanout ports for easy maintenance and to minimize screen blockage.
  • Internal 304 stainless steel strainer element with 0.25 inch diameter perforations effectively traps foreign material 1/4 inch diameter or larger.
  • Designed for groove x groove connections.
  • The strainer element can be removed for replacement or repair without removing the body from the line.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult your local water authority, building and plumbing codes before installation.

Specifications

  • Product Series: 7002
  • Nominal Size: 8 inch (200mm)
  • Connection Type: Groove x Groove
  • Number of Cleanouts: 2
  • Body & Cover Material: Fusion-bonded epoxy coated steel
  • Screen Material: 304 stainless steel
  • Screen Perforation Diameter: 0.25 inch
  • Clean-Out Plug Material: Brass or Bronze
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Maximum Water Temperature: 140°F (60°C)
  • Friction Loss (plugged): Not to exceed 10 psi (69 kPa)
  • Friction Loss (clean filter, rated flow): Not to exceed 3 psi (21 kPa)
  • Open Screen Area: At least 6 times nominal pipe size open area
  • Filter Withstand Pressure: 125 psi (8.6 bar)

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary purpose of this fire service strainer?

This 8 inch Ames Fire & Waterworks Series 7002 strainer is designed to protect non-potable water spray systems by trapping foreign material 1/4 inch or larger. It prevents clogging of sprinkler heads and safeguards sensitive devices like meters and backflow preventers from damage caused by large particles.

What are the connection types for this strainer?

This strainer features 8 inch groove x groove connections, designed for straightforward installation into compatible grooved piping systems.

What materials are used in the construction of this strainer?

The body and cover are made from fusion-bonded epoxy coated steel, ensuring durability and corrosion resistance. The strainer element is 304 stainless steel with 0.25 inch perforations, and the clean-out plugs are brass or bronze.

What is the maximum operating pressure and temperature for this unit?

This strainer is rated for a maximum working pressure of 175 psi (12.1 bar) and can handle water temperatures up to 140°F (60°C).

Does this strainer have certifications for fire protection use?

Yes, the Ames Fire & Waterworks Series 7002 strainer is CULUS Listed 321 and FM Approved Class 5551, confirming its suitability and reliability for fire service applications.
