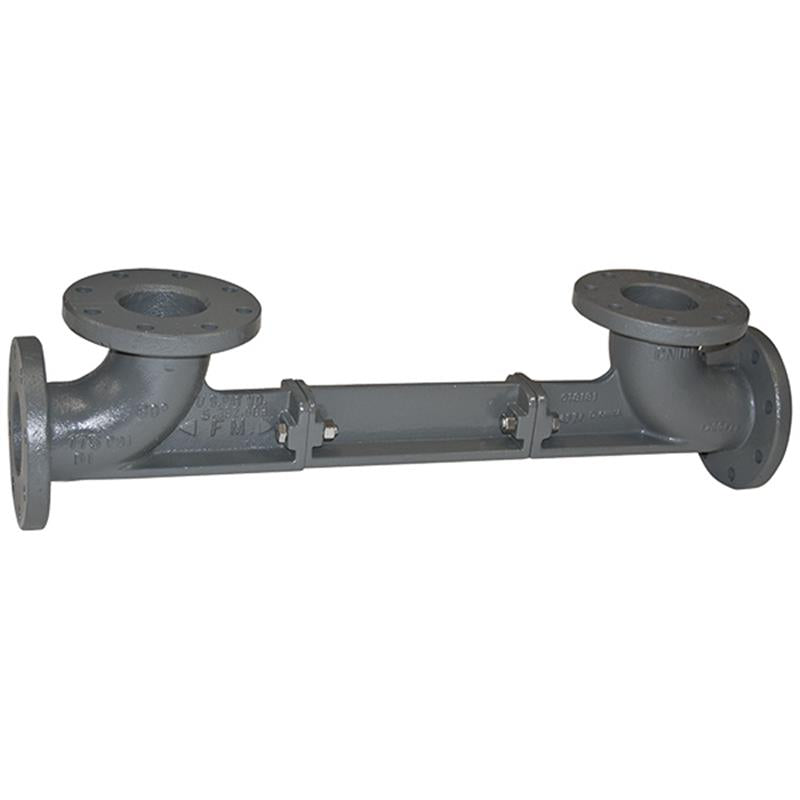

8 AVS-C Flange x Flange

Item Number: 0693213
1 1
$3,147.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 8 inch (200 mm)
  • Weight: 379.0 lb
  • Connection Type: Flange by Flange
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Lead Content: Less than 0.25% by weight
  • Eliminates thrust blocks at installation point

Description

The 8 inch Ames Series AVS-C Flange x Flange valve setter is constructed from fusion epoxy coated ductile iron, designed to augment the installation of "N" series backflow prevention valves. It features integral support between elbows, eliminating the need for thrust blocks at the installation point. This corrosion-resistant setter has a maximum working pressure of 175 psi and operates within a 32°F to 140°F temperature range. Its wetted surfaces contain less than 0.25% lead, making it suitable for consumable water applications. It is compatible with C400NBFG and C500NBFG models.

Help Me Connect

Compatibility & Installation

This Ames Series AVS valve setter is specifically designed to augment the installation of "N" series backflow prevention valves. It is intended for use with C400NBFG and C500NBFG models.

The unit features flange by flange connections. While the integral ductile iron support eliminates the need for thrust blocks between elbows, mechanical joint restraint devices may be used at pipe connections based on local conditions.

Note: Mechanical joint accessories, flange bolts, and gaskets are not included, except for center joints.

View full details

Additional Details

The 8 inch Ames Series AVS-C valve setter with flange by flange connections is designed to augment the installation of "N" series backflow prevention valves. This valve setter eliminates the need for thrust blocks at the point of installation.

Construction

  • Constructed of fusion epoxy coated ductile iron for corrosion resistance.
  • Features integral ductile iron support between elbows to transfer thrust downstream.

Features

  • Corrosion resistant fusion epoxy coated.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Flanges conform to ANSI B16.1 Class 125 (Standard) and ANSI AWWA C153 A21.53-88.
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

General

  • Size: 8 inch (200 mm)
  • Product Type: Valve Setter
  • Product Model: AVS-C
  • Connection Type: Flange by Flange

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Materials

  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel

Dimensions & Weight (8 Inch Flange x Flange)

  • Overall Length (A): 58 5/8 inches (1489 mm)
  • Dimension B: 40 5/8 inches (1032 mm)
  • Dimension C: 9 inches (229 mm)
  • Weight: 272 lbs (123 kgs)

Certificates & Approvals

  • Flange Standard: ANSI B16.1 Class 125
  • Flange Standard: ANSI AWWA C153 A21.53-88

FAQs

What is the primary purpose of the Ames Series AVS-C valve setter?

The valve setter is designed to augment the installation of "N" series backflow prevention valves, providing integral ductile iron support between elbows to transfer thrust downstream.

What are the connection types for this specific 8-inch AVS-C model?

This specific 8-inch AVS-C valve setter features flange by flange connections. Other AVS models may have mechanical joint by flange or mechanical joint by mechanical joint connections.

What is the maximum operating pressure and temperature range for this valve setter?

The valve setter has a maximum working pressure of 175 psi (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

What materials are used in the construction of the Ames Series AVS-C valve setter?

The body is made from ductile iron A536 GR 65-45-12, coated internally and externally with fusion epoxy (AWWA C550). The bolts and nuts are stainless steel.

Does this valve setter require thrust blocks during installation?

No, the integral ductile iron support between the elbows is designed to transfer thrust downstream, eliminating the need for thrust blocks or other restraints at the point of installation.
