8 C200N-NRS

Item Number: 0191220
1 1
$21,393.06
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 8 inch Double Check Valve Backflow Preventer
  • Weight: 706.0 lb
  • Housing & Sleeve: 304 (Schedule 40) Stainless Steel
  • Maximum Operating Pressure: 175 psi
  • Non-Rising Stem (NRS) Resilient Seated Gate Valves
  • Lead Free Construction: Wetted surface < 0.25% lead
  • Patented Tri-Link Check modules for lowest pressure loss
  • Compact design, 70% lighter than traditional models
  • Approved for N Pattern Horizontal installation

Description

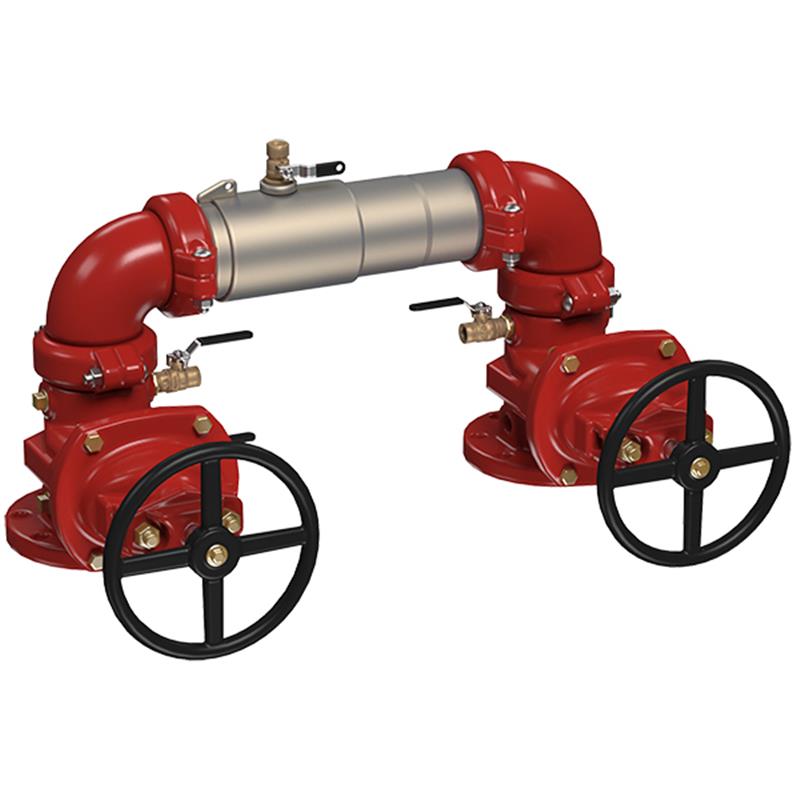

The Colt 8 inch Lead Free Double Check Valve Backflow Preventer Assembly (C200N-NRS) prevents reverse flow of non-potable substances into potable water systems. Designed for non-health hazard applications like fire sprinkler systems, this assembly features a compact, lightweight 304 stainless steel body, non-rising stem (NRS) resilient seated gate valves, and patented Tri-Link checks for low pressure loss. It supports N Pattern horizontal installation and has groove fittings for easy pipeline adjustment. With a maximum working pressure of 175 psi and Lead Free* construction, it ensures reliable protection for cross-connections. Item number 0191220.

Help Me Connect

This 8 inch double check valve backflow preventer assembly features groove end connections for integral pipeline adjustment.

It is specifically designed and approved for N Pattern Horizontal installation, aligning with the direction of flow. Ensure connections are made to compatible grooved piping systems.

View full details

Additional Details

This Colt™ 8 inch lead free double check valve backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure in accordance with national plumbing codes and water authority requirements.

It is ideal for protection at cross-connections identified as non-health hazards such as on fire sprinkler systems and from other contaminants found at the service line entrance.

Construction & Design

  • Features an extremely compact modular design with a single access sleeve for easy maintenance
  • Approximately 70% lighter than traditional designs
  • Consists of a 304 (Schedule 40) stainless steel body, Tri-Link check valves, non-rising stem resilient seated gate valves, and test cocks
  • Groove fittings allow integral pipeline adjustment for easier installation

Performance

  • Patented Tri-Link check modules provide the lowest pressure loss
  • Unmatched ease of serviceability with components removable without special tools
  • Reversible elastomer check disc rubber for extended lifespan

The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Size: 8 inch
  • Model: C200N (NRS Shutoff Valves)
  • Configuration: N Pattern Horizontal
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C)
  • Lead Content: Wetted surface contains less than 0.25% of lead by weight

Materials

  • Housing & Sleeve Material: 304 (Schedule 40) Stainless steel
  • Elastomer Material: EPDM, silicone, and Buna 'N'
  • Tri-Link Check Material: Noryl®, stainless steel
  • Check Disc Material: Reversible silicone or EPDM
  • Test Cock Material: Lead Free* bronze body
  • Pins & Fasteners Material: 300 series stainless steel
  • Spring Material: Stainless steel

Dimensions (Approximate)

  • A: 49 3/4 in (1264 mm)
  • C: 37 3/4 in (959 mm)
  • D: 6 11/16 in (170 mm)
  • G: 54 1/8 in (1375 mm)
  • H: 27 7/16 in (697 mm)
  • J: 15 11/16 in (399 mm)
  • P: 17 3/16 in (437 mm)

Weight (Approximate)

  • Weight: 314 lb (142 kg)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1015
  • CSA B64.5

FAQs

What is the primary function of this backflow preventer assembly?

This assembly is designed to prevent the reverse flow of non-potable water or fire protection substances from entering the potable water supply due to backsiphonage or backpressure.

Is this product suitable for potable water connections?

Yes, it features Lead Free* construction, meaning its wetted surface contains less than 0.25% lead by weight, making it suitable for use with consumable water to comply with reduced lead content requirements.

What type of shutoff valves does this model use?

This C200N model is equipped with non-rising stem (NRS) resilient seated gate valves for reliable shutoff control.

What installation patterns are supported for this backflow preventer?

This specific assembly is approved for N Pattern Horizontal installations, ensuring proper functionality in designated flow directions.

What is the maximum operating pressure and temperature range for this device?

The maximum working pressure for this backflow preventer is 175 psi (12.1 bar), and it operates within a temperature range of 33°F to 140°F (0.5°C to 60°C).
