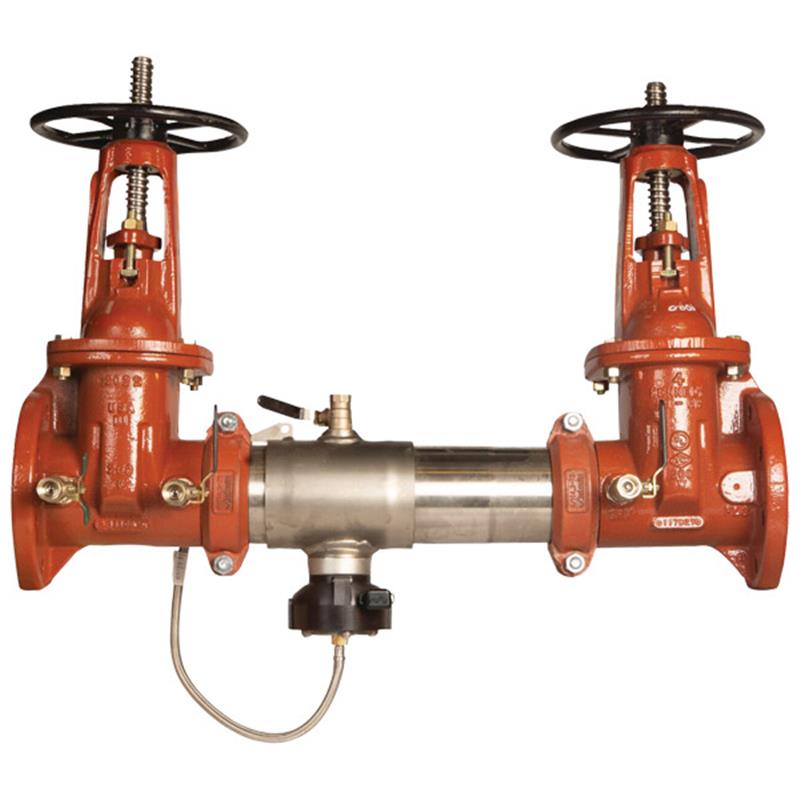

8 C400-OSY-FS

Item Number: F0191274
1 1
$22,618.06
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 8 inch Reduced Pressure Zone Backflow Preventer
  • Weight: 639.0 lb
  • Lead Free Type 304 Stainless Steel construction
  • Features SentryPlus Alert flood sensor
  • Resilient seated OS&Y gate valves
  • Extremely compact and lightweight design
  • Groove couplings for easy installation
  • Horizontal, N-pattern, or Z-pattern installation
  • Approved to ASSE 1013, CSA B64.4, UL, FM, NSF

Description

The Colt 8 inch Lead Free Series C400 Reduced Pressure Zone Backflow Preventer assembly protects potable water systems from contamination caused by backsiphonage and backpressure. Ideal for health hazard applications, it features a SentryPlus Alert flood sensor for flood detection, resilient seated OS&Y gate valves, and durable Type 304 stainless steel construction. Its compact, lightweight design with groove couplings ensures easy installation. This model is approved for horizontal, N-pattern, and Z-pattern configurations, offering robust protection for continuous pressure piping applications. Item number F0191274.

Help Me Connect

Installation & Connectivity

  • This backflow preventer is designed for horizontal installation and must be installed in accordance with the direction of the flow arrow. It is also configurable for N-pattern and Z-pattern installations.
  • The assembly utilizes groove couplings for straightforward pipe alignment and connection.
  • The integrated SentryPlus Alert® flood sensor requires an add-on connection kit for active alert functionality. Connection kit options include integration with Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor for connection to BAS via RS-485 Modbus or the Nexa® platform via Wi-Fi.
View full details

Additional Details

The Colt™ 8 inch Lead Free Series C400 Reduced Pressure Zone Backflow Preventer assembly protects potable water systems from contamination due to backsiphonage and backpressure in health hazard applications. It prevents the reverse flow of fire protection substances and non-potable water into the potable water supply, making it ideal for continuous pressure piping applications.

This assembly features a SentryPlus Alert® flood sensor to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, the sensor activates to relay alerts for potential flooding events via BMS, cellular communication, or the Sensor Control Monitor for integration with BAS (RS-485 Modbus) or the Nexa® platform (Wi-Fi).

Construction & Design

  • Lead Free* construction (wetted surface contains less than 0.25% of lead by weight)
  • Durable Type 304 (Schedule 40) stainless steel housing and sleeve
  • Extremely compact design, up to 70% lighter than traditional models
  • Patented link check modules designed for lowest pressure loss
  • Torsion spring check modules and quick access sleeve for unmatched ease of serviceability
  • Replaceable check disc rubber for extended lifespan
  • Resilient seated OS&Y (Outside Stem and Yoke) gate valves for drip-tight shutoff, with an option for an integrated supervisory switch
  • Groove couplings for easy installation and integral pipeline adjustment

Inquire with governing authorities for local installation requirements. Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Size: 8 inch
  • Model: C400-OSY-FS
  • Housing Material: Type 304 (Schedule 40) Stainless Steel
  • Body Material: Stainless Steel (Housing and Sleeve)
  • Lead Content: Lead Free (less than 0.25% of lead by weight)
  • Shutoff Valves: Resilient Seated OS&Y Gate Valves
  • Check Valves: Torsion Spring Link Check Modules, Replaceable Disc Rubber
  • Sensor: SentryPlus Alert Flood Sensor
  • Installation: Horizontal, N-Pattern, Z-Pattern configurable

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCC & HR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF Certified

FAQs

What is the primary use of the Colt C400 Reduced Pressure Zone Backflow Preventer?

This backflow preventer is designed to protect potable water systems from contamination by preventing the reverse flow of non-potable water and fire protection substances caused by backsiphonage or backpressure, especially in health hazard applications and continuous pressure piping.

What does "Lead Free" construction mean for this product?

"Lead Free" means the wetted surface of this product, which comes into contact with consumable water, contains less than 0.25% of lead by weight, complying with Lead Free installation requirements.

How does the SentryPlus Alert flood sensor function?

The SentryPlus Alert flood sensor detects excessive water discharges from the relief valve. When an add-on connection kit is used, it activates to relay alerts via various communication methods like BMS, cellular, or Wi-Fi to notify personnel of potential flooding.

Can this backflow preventer be installed in different orientations?

Yes, this assembly is approved for horizontal installation. It is also configurable for N-pattern and Z-pattern installations, providing flexibility for different site requirements.

What materials are used in the construction of the C400 series?

The C400 series features a durable Type 304 (Schedule 40) stainless steel housing and sleeve. It also includes replaceable check disc rubber and resilient seated OS&Y gate valves.
