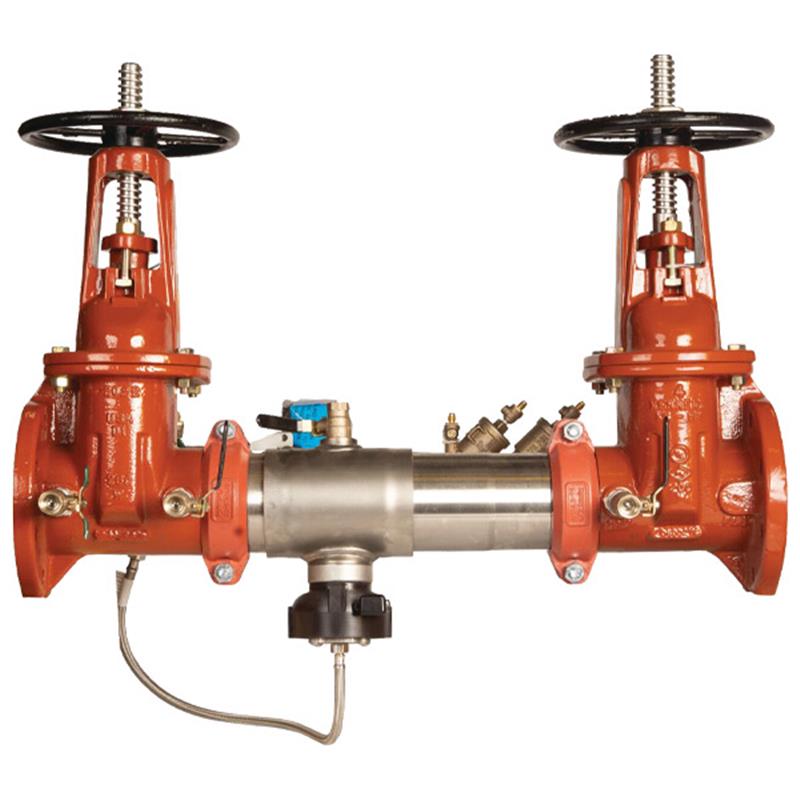

8 C500-DOSY-C-FS

Item Number: F0206498
1 1
$25,820.04
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 8 inch
  • Weight: 647.0 lb
  • Body Material: 304 Stainless Steel
  • Valve Type: OSY Resilient Seated Gate Valves
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Features: Flood sensor with SentryPlus Alert® technology
  • Includes: Cubic feet per minute bypass meter
  • Connection Type: Groove couplings

Description

The Colt 8 inch stainless steel reduced pressure detector backflow preventer assembly offers critical protection against the reverse flow of non-potable water and fire protection substances into potable water supplies. It features a durable 304 stainless steel body, OSY resilient seated gate valves, and groove couplings for straightforward installation. An integrated SentryPlus Alert® flood sensor detects relief valve discharge, providing advanced leak detection capabilities when paired with an optional connection kit. This assembly is approved by FCCCHR-USC, AWWA, UL, and FM, ensuring reliable performance in health hazard cross-connection applications, including fire sprinkler systems.

Help Me Connect

This 8-inch reduced pressure detector backflow preventer assembly is designed for installation in horizontal pipelines. Its groove couplings facilitate easy integration and precise pipeline alignment. The assembly includes domestic OSY resilient seated gate valves for secure shutoff.

The integrated SentryPlus Alert® flood sensor requires an add-on connection kit (sold separately) for activation and communication. These kits enable connection to Building Automation Systems (BAS) via RS-485 Modbus, cellular communication, or Wi-Fi through the Nexa® platform or Sensor Control Monitor, allowing for remote monitoring and alert delivery for potential flooding events.

View full details

Additional Details

The Colt™ 8 inch stainless steel reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply. It protects against backsiphonage and backpressure in health hazard cross-connections, such as fire sprinkler systems and service line entrances.

This assembly includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve, offering enhanced monitoring capabilities when paired with an add-on connection kit.

A WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Features

  • Reduced Pressure Detector Assembly for critical backflow prevention
  • Includes a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve
  • Add-on sensor connection kit extends flood monitoring on compatible assemblies (sold separately)
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa® platform by Wi-Fi connectivity
  • Stainless steel housing and sleeve (304 Schedule 40)
  • Drip-tight shutoff valves (domestic OSY resilient seated gate valves)
  • Furnished with a cubic feet per minute meter for leak and unauthorized water use detection
  • Bronze body nickel plated test cocks
  • Bottom-mounted cast stainless steel relief valve
  • Groove couplings allow for easy installation and pipeline alignment
  • Patented link check for lowest pressure loss
  • Unmatched ease of serviceability with replaceable check disc rubber
  • Extremely compact design and 70% lighter than traditional models
  • Includes an integrated supervisory switch as an option on each gate valve of the OS&Y model

Specifications

General

  • Size: 8 inch
  • Model: C500-OSY-C-FS
  • Product Type: Reduced Pressure Detector Backflow Preventer
  • Flood Sensor Technology: SentryPlus Alert®

Materials

  • Housing & Sleeve: 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: Domestic OSY Resilient Seated Gate Valves
  • Relief Valve: Bottom-Mounted Cast Stainless Steel
  • Test Cocks: Lead Free* Bronze Body, Nickel Plated
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Detection Meter: Cubic Feet Per Minute Meter

Approvals

  • Approved By: Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California (FCCCHR-USC)
  • AWWA Standard: C511-97
  • UL Classified: Yes (OSY type)
  • FM Approved: Yes (OSY type)

Dimensions & Weight (Approximate)

  • Length (Overall A): 49 3/4 inches (1264 mm)
  • Length (OSY C): 37 3/4 inches (959 mm)
  • Weight: 441 lbs (200 kg)
  • Configuration: Horizontal

FAQs

What is the primary purpose of this backflow preventer assembly?

Its primary purpose is to protect potable water supplies from contamination caused by the reverse flow of non-potable water or fire protection substances due to backsiphonage or backpressure, particularly in health hazard cross-connection applications like fire sprinkler systems.

Does this assembly include a flood sensor? How does it work?

Yes, it includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. To activate the sensor for alerts, an add-on connection kit (sold separately) is required.

What are the main components of this assembly's construction?

This assembly is constructed with a 304 (Schedule 40) stainless steel housing and sleeve, two independent link check modules, a bottom-mounted cast stainless steel relief valve, and two domestic OSY resilient seated gate valves. It also features Lead Free* bronze body nickel-plated test cocks.

What is the maximum operating pressure and temperature range for this device?

The maximum working pressure for this 8-inch assembly is 175 psi (12.1 bar). It operates within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Is this backflow preventer approved by regulatory bodies?

Yes, this assembly is approved by the Foundation for Cross-Connection Control and Hydraulic Research at USC (FCCCHR-USC), meets AWWA C511-97 standards, and is both UL Classified and FM Approved for OSY type configurations.
