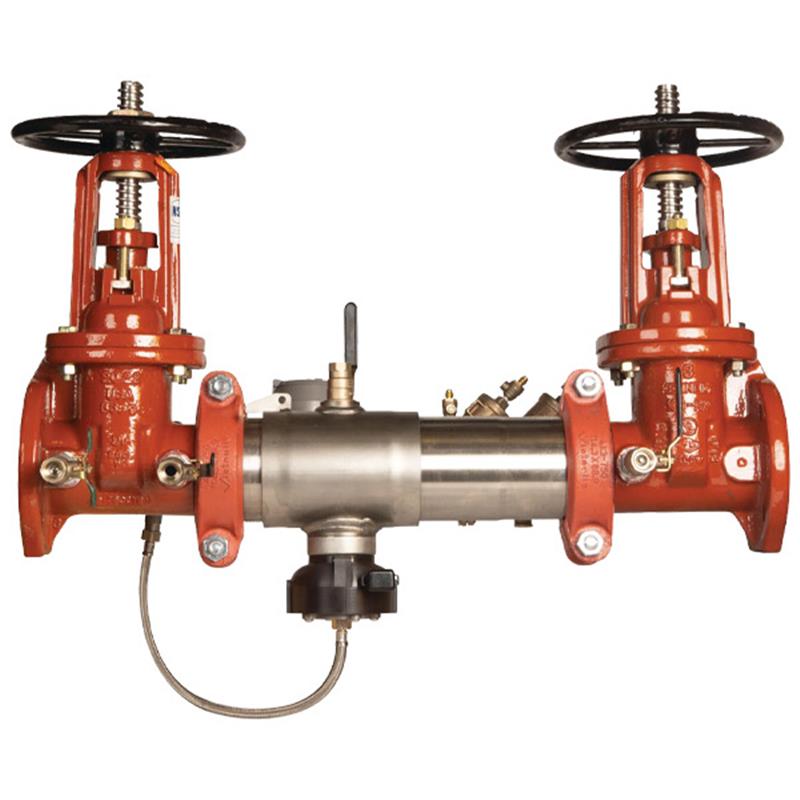

This Colt™ 8 inch reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality into the potable water supply due to backsiphonage or backpressure. It is ideal for protection at health hazard cross-connections, such as on fire sprinkler systems and at service line entrances.

A WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Always consult your local water authority, building, and plumbing codes before installation.

The C500 Reduced Pressure Detector Assembly offers protection for drinking water supplies from dangerous cross-connections, adhering to national plumbing codes and water authority requirements for health-hazard non-potable service applications like irrigation, fire lines, or industrial processing. This model includes a SentryPlus Alert® flood sensor to detect excessive water discharges from the relief valve.

Features

• Extremely compact design, up to 70% lighter than traditional designs.
• Housing and sleeve constructed from 304 (Schedule 40) stainless steel.
• Includes groove fittings for integral pipeline adjustment and easy installation.
• Features a patented link check for lowest pressure loss.
• Offers unmatched ease of serviceability with replaceable check disc rubber.
• Equipped with outside stem and yoke (OSY) resilient seated gate valves.
• Bottom-mounted cast stainless steel relief valve.
• Metered bypass (gallon per minute meter) to detect leakage or unauthorized water use from the fire sprinkler system.
• Integrated supervisory switch is an option on each gate valve for the OS&Y model.

Flood Sensor Technology

• Features a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
• An add-on sensor connection kit is required to activate the flood sensor and enable communication.
• When paired with a connection kit, the sensor can trigger multichannel alerts (call, email, text) to notify personnel of potential flooding events.
• Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
