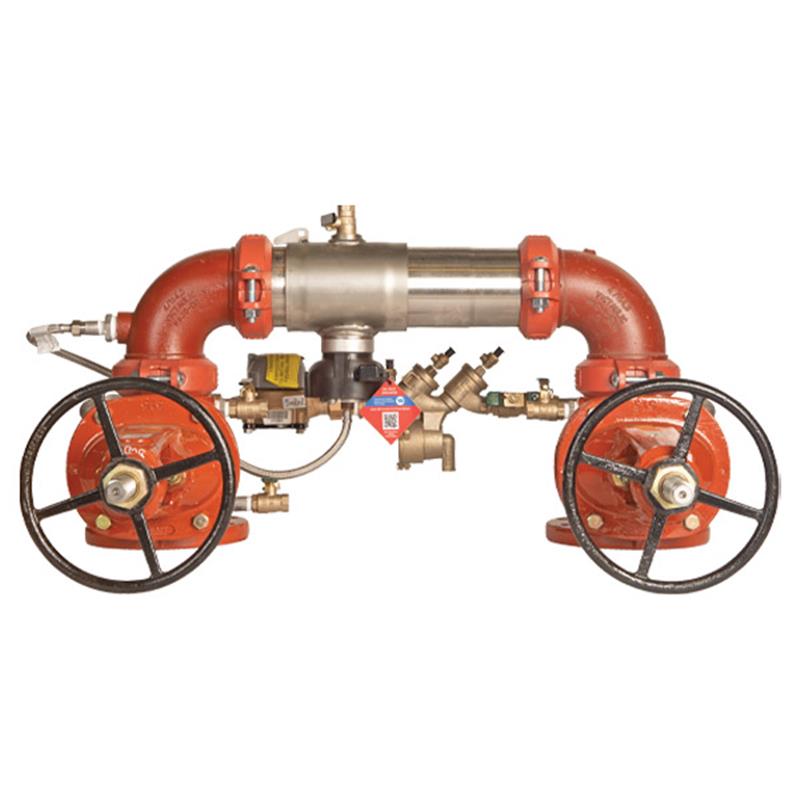

This Colt™ 8 inch stainless steel reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water from entering the potable water supply due to backsiphonage or backpressure.

This compact modular design is approved for horizontal N pattern installation and includes a flood sensor with SentryPlus Alert® technology.

A WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Features

• Provides protection to drinking water supplies from dangerous cross-connections in accordance with national plumbing codes.
• Includes a flood sensor to detect excessive water discharges from the relief valve, capable of triggering multichannel alerts when activated with an add-on connection kit.
• Integrated supervisory switch is an option on each gate valve of the OS&Y model.
• Extremely compact design, approximately 70% lighter than traditional designs.
• Constructed with a 304 (Schedule 40) stainless steel housing and sleeve.
• Groove fittings for integral pipeline adjustment and easy installation.
• Patented link check for lowest pressure loss.
• Unmatched ease of serviceability with replaceable check disc rubber.
• Available with grooved butterfly valve shutoffs (this model includes OSY gate valves).
• Bottom-mounted cast stainless steel relief valve.
• Metered bypass to detect leakage or theft of water from the fire sprinkler system.

Construction & Design

• Consists of two independent Link Check modules, a differential pressure relief valve, two drip tight shutoff valves, and required test cocks.
• Link Check modules and relief valve are contained within a single accessible housing made from 304 (Schedule 40) stainless steel pipe with groove end connections.
• Bypass assembly includes a meter for gallon or cubic measurements and a reduced pressure zone assembly.
• OS&Y model includes an integrated supervisory switch that activates within two turns from open and sends a tamper signal when the valve is closed or removed.
