Body Material: Epoxy Coated Cast Iron with ArmorTek®
Domestic OSY Resilient Seated Gate Valves
Maximum Working Pressure: 175 PSI
Modular design for easy maintenance and in-line repairs
Replaceable stainless steel seats
No special tools required for servicing
Approved for vertical flow up installation (4"-10" sizes)
Description

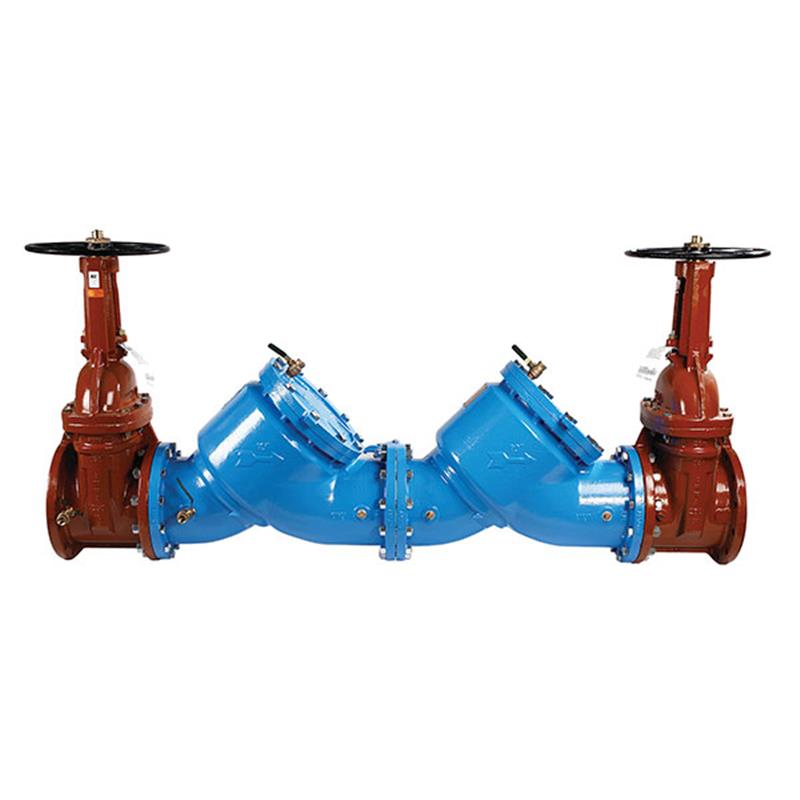

This 8 inch Lead Free Double Check Valve Backflow Preventer Assembly with Domestic OSY Shutoff is designed to prevent the backflow of polluted water into potable water systems. Ideal for non-health hazard cross-connections and continuous pressure piping, it features a durable epoxy coated cast iron body with patented ArmorTek® technology for corrosion resistance. The modular design simplifies maintenance with a single access cover and no special tools required. It includes replaceable stainless steel seats and captured spring assemblies, ensuring reliable performance up to 175 PSI. The assembly is approved by major industry standards like ASSE, AWWA, CSA, UL, and NSF. Item number 0792170.
This 8 inch Lead Free double check valve backflow preventer assembly is designed to prevent the reverse flow of polluted water from entering into the potable water system due to backsiphonage and/or backpressure.
It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards.
Design and Construction
Features a compact modular design that facilitates easy maintenance with a single access cover for in-line repairs.
Consists of an epoxy coated cast iron body, domestic outside stem and yoke (OSY) resilient seated gate valves, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.
The coating on this backflow assembly utilizes ArmorTek®, a patented 3-part advanced epoxy coating system engineered to reduce both microbial-induced corrosion (MIC) and exposed metal substrate corrosion.
Approved for vertical flow up installation for sizes 4 inches to 10 inches.
Performance and Maintenance
Offers maximum flow at low pressure drop.
Features replaceable stainless steel seats.
No special tools are required for servicing.
Complies with Lead Free* installation requirements, with wetted surfaces containing less than 0.25% lead by weight.
Check Modules: Two In-Line Independent Positive Seating
Seats: Replaceable Stainless Steel
Springs: Captured Assemblies
Maximum Working Pressure: 175 psi (12.1 bar)
Temperature Range (Continuous): 33°F - 110°F (0.5°C - 43°C)
Temperature Range (Intermittent): 140°F (60°C)
Certificates & Approvals
ASSE No. 1015
AWWA C510-92
CSA B64.5
UL Classified File No. EX3185
NSF Certified to NSF/ANSI 61-G
IAPMO PA 31
USC Manual for Cross-Connection Control, 8th Edition
Approved by Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
FM Approved: For 4" to 10" vertical "flow up" with OSY gate valves only
Lead Free: Yes (less than 0.25% lead by weight in wetted surfaces)
FAQs
What is the primary purpose of this 8 inch backflow preventer?
This 8 inch Lead Free double check valve backflow preventer assembly is designed to prevent the reverse flow of polluted water from entering into the potable water supply, specifically in non-health hazard installations and continuous pressure piping applications.
What material is the body of this backflow preventer made from?
The body is constructed from epoxy coated cast iron. It features ArmorTek®, a patented three-part advanced epoxy coating system designed to resist both microbial-induced corrosion (MIC) and exposed metal substrate corrosion.
Does this backflow preventer require special tools for maintenance?
No, this double check valve assembly is designed for easy maintenance. It features a modular design concept that facilitates complete maintenance and assembly, and no special tools are required for servicing.
What is the maximum operating pressure and temperature for this assembly?
This backflow preventer has a maximum working pressure of 175 psi (12.1 bar). The continuous temperature range is 33°F - 110°F (0.5°C - 43°C), with an intermittent maximum of 140°F (60°C).
Is this product suitable for vertical installations?
Yes, this 8 inch model is approved for vertical flow up installation. For sizes 4 inches to 10 inches, it is approved for both horizontal and vertical 'flow up' orientations.
