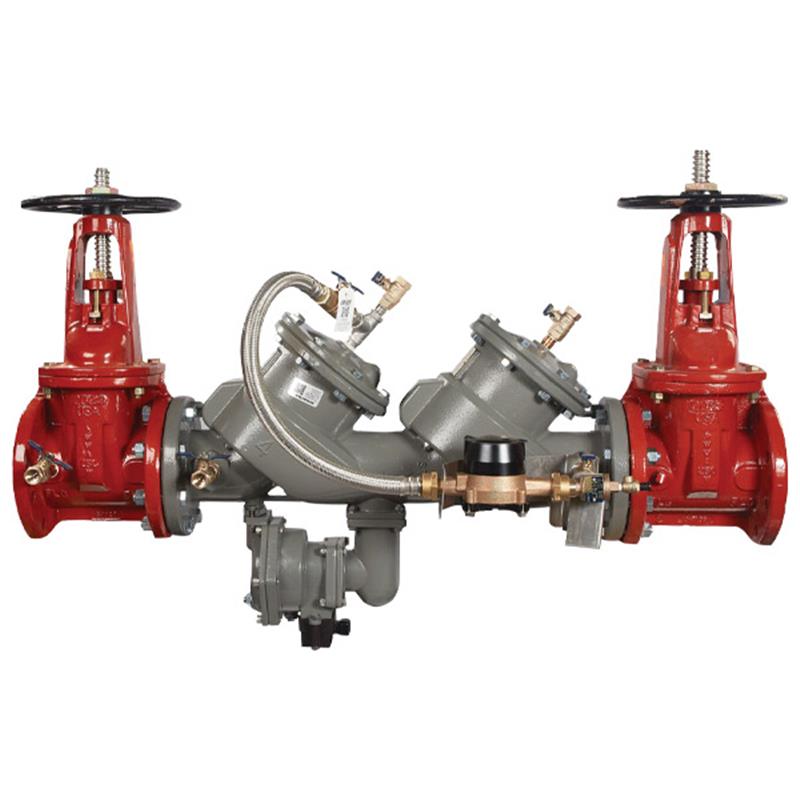

8 LF866-DOSY-GPM-FS

Item Number: F683170
1 1
$42,857.02
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 8 inch
  • Weight: 835.0 lb
  • Lead Free Construction: Less than 0.25% lead by weight
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® advanced epoxy for corrosion resistance
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F to 140°F
  • Approvals: ASSE 1047, UL Classified, FM Approved, NSF
  • Features: Flood sensor with SentryPlus Alert® technology

Description

The FEBCO MasterSeries LF866 is an 8 inch Lead Free Reduced Pressure Zone Detector Backflow Preventer Assembly engineered for high hazard and toxic applications in potable water systems. Its robust ductile iron body features ArmorTek® 3-part epoxy coating for superior corrosion resistance and extended durability. Equipped with UL Classified and FM Approved OS&Y shutoff valves and a metered bypass, this assembly provides reliable protection against backpressure and backsiphonage. A built-in flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge, offering advanced monitoring when paired with an optional connection kit. Approved by ASSE 1047, UL, FM, and NSF, it ensures compliance and safety. Item number F683170.

Help Me Connect

Connections

  • This 8 inch backflow preventer assembly features flanged end connections designed to comply with ASME B16.1 Class 125 and AWWA Class D Flange standards.
  • It is designed for installation on potable water supply lines to protect against high hazard backpressure and backsiphonage conditions.
  • The integrated flood sensor requires an add-on connection kit (BMS, cellular communication, or Sensor Control Monitor for BAS via RS-485 Modbus or Nexa® platform through Wi-Fi) to activate its alert capabilities.
View full details

Additional Details

The 8 inch FEBCO MasterSeries® LF866 Lead Free Reduced Pressure Zone Detector Backflow Preventer assembly is designed to protect potable drinking water systems against backpressure and backsiphonage of high hazard/toxic fluids. It is commonly used in industrial installations and applications where local governing codes mandate protection.

This assembly features a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When paired with an add-on connection kit (sold separately), the sensor is activated to relay alerts for potential flooding events via BMS, cellular communication, or integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Construction & Features

  • Ductile iron body construction with patented ArmorTek® 3-part advanced epoxy coating for enhanced resistance to microbial-induced corrosion (MIC) and exposed metal substrate corrosion.
  • Equipped with UL Classified and FM Approved OS&Y resilient wedge gate shutoff valves for reliable control.
  • Features stainless steel relief valve seat and stainless steel check components for maximum performance and durability.
  • Inline serviceable assembly design allows for maintenance without special tools.
  • Includes a metered bypass assembly with a 5/8" x 3/4" gallons per minute (GPM) water meter to detect leaks or unauthorized water usage.
  • Lead Free construction meets low lead installation requirements (wetted surface contains less than 0.25% lead).
  • Utilizes four properly located resilient seated test cocks.

Important: An add-on connection kit is required to activate the flood sensor for communication; without it, the sensor is passive. The flood sensor does not replace the need for proper drainage or compliance with installation and maintenance codes.

Specifications

General

  • Product Type: Reduced Pressure Zone Detector Backflow Preventer Assembly (Type II)
  • Size: 8 inch
  • Model: LF866
  • Brand: FEBCO MasterSeries®
  • Application: High hazard/toxic backpressure and backsiphonage protection in potable water systems
  • Valve Body Design: Ductile Iron
  • Connection Type: Flanged

Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Relief Valve Body: Ductile iron Grade 65-45-12
  • Coating: ArmorTek powder coating (internal and external surfaces)
  • Shutoff Valves: OSY resilient wedge gate valve (UL Classified and FM Approved)
  • Check Seats: Stainless steel
  • Relief Valve Seat: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1047
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • AWWA Class D Flange Compliant
  • ASME B16.1 Class 125 Compliant
  • NSF Certified to NSF/ANSI/CAN 61 & 372

FAQs

What is the primary function of the FEBCO MasterSeries LF866 backflow preventer?

This backflow preventer is designed to protect potable drinking water systems from contamination due to backpressure and backsiphonage of high hazard or toxic fluids. It is typically used in industrial installations.

Is this backflow preventer compliant with lead-free regulations?

Yes, the FEBCO MasterSeries LF866 is Lead Free, meaning its wetted surfaces contain less than 0.25% lead by weight, complying with low lead installation requirements.

How does the integrated flood sensor work?

The flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate its communication capabilities and relay alerts (e.g., via call, email, text), an add-on connection kit (sold separately) is required.

What are the main components that contribute to its durability?

Its durability stems from a ductile iron body with a patented ArmorTek® 3-part advanced epoxy coating for corrosion resistance, along with stainless steel relief valve seats and check components for maximum performance.

What is the maximum operating temperature for this backflow preventer?

The maximum continuous operating temperature range for this assembly is 33°F to 140°F (0.5°C to 60°C).
