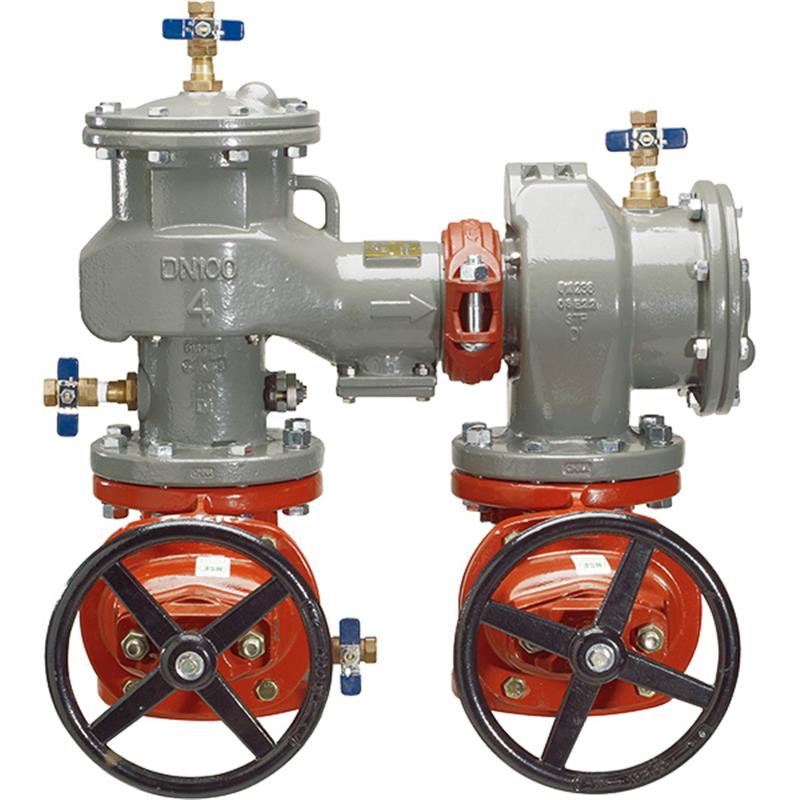

8 LF870V-DNRS

Item Number: 0683120
1 1
$26,832.40
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 8 inch
  • Weight: 1095.0 lb
  • Lead Free construction (<0.25% lead in wetted surface)
  • ArmorTek® epoxy coating for corrosion resistance
  • Max. Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Ductile iron body with stainless steel components
  • In-line serviceable design
  • Approved for horizontal (N-pattern) and vertical-up (Z-pattern) installations

Description

The 8 inch FEBCO MasterSeries® LF870V is a lead-free double check valve backflow preventer assembly engineered to protect potable water supplies from pollution caused by backpressure or backsiphonage. Featuring an ArmorTek® epoxy-coated ductile iron body and stainless steel internal components, it resists corrosion, including microbial-induced corrosion. This assembly is approved for both horizontal (N-pattern) and vertical-up (Z-pattern) installations, offering a maximum working pressure of 175 PSI. Its modular design allows for easy in-line servicing without special tools, ensuring compliance with water utility codes. Item number 0683120.
View full details

Additional Details

This 8 inch lead free FEBCO MasterSeries® LF870V Double Check Valve Backflow Preventer Assembly is designed to protect potable water systems from backpressure and backsiphonage conditions in non-health hazard (pollutant) applications. It is ideal for continuous pressure piping and cross-connections with non-toxic contaminants.

The assembly features a compact modular design for easy in-line maintenance, ensuring compliance with national plumbing codes and water authority requirements.

Features

  • In-line serviceable assembly for simplified maintenance
  • Approved for Horizontal N-pattern installations and Vertical up Z-pattern installations
  • No special tools required for servicing, making repairs efficient
  • Features a captured modular spring assembly, reversible and replaceable discs, and field replaceable seats
  • Constructed with a ductile iron valve body design and stainless steel check components
  • Utilizes ArmorTek® coating technology to resist corrosion, including microbial-induced corrosion (MIC)
  • Includes a winterization feature with disc retainers and valve body drain ports
  • Equipped with a clapper check assembly and captured O-ring design
  • Commonality between 1st and 2nd check components for streamlined parts management

The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Product Type: Double Check Valve Assembly
  • Size: 8 inch
  • Model: LF870V
  • Operating Orientation: Horizontal (N-pattern) or Vertical Up (Z-pattern)
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek Powder Coating
  • Shutoff Valves: NRS Resilient Wedge Gate Valve (AWWA C509 Standard)
  • Check Seats Material: Stainless Steel
  • Disc Holder Material: Stainless Steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless Steel
  • Clamp Material: AWWA C606

Pressure & Temperature Ratings

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Minimum Working Pressure: 10 PSI (0.7 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous

Dimensions (N-Pattern)

  • Dimension A: 37 3/8 inch (953 mm)
  • Dimension B: 18 1/2 inch (470 mm)
  • Dimension C: 9 1/4 inch (235 mm)
  • Dimension D: 36 3/8 inch (924 mm)
  • Dimension E: 24 7/8 inch (632 mm)
  • Dimension F: 20 3/4 inch (527 mm)
  • Nominal Weight (with NRS gate valves): 782 lb (355 kg)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • NSF Certified to NSF/ANSI 61-G

FAQs

What type of backflow protection does the FEBCO LF870V provide?

The FEBCO LF870V Double Check Valve Assembly is designed to protect against backpressure and backsiphonage conditions for non-health hazard (pollutant) applications. It prevents non-potable quality water from entering potable drinking water systems.

Is this 8 inch backflow preventer lead-free?

Yes, the FEBCO MasterSeries LF870V features Lead Free* construction. The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with low lead installation requirements.

What is ArmorTek® coating technology and what are its benefits?

ArmorTek® is a patented three-part advanced epoxy system applied to the iron components of the backflow preventer. It is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate, delivering integrated protection against electrochemical corrosion.

Can this backflow preventer be installed in different orientations?

Yes, the FEBCO LF870V is approved for both horizontal (N-pattern) and vertical-up (Z-pattern) installations. The assembly is shipped in the standard N-pattern configuration.

What are the primary materials used in the construction of this assembly?

The main valve body is made of Ductile Iron Grade 65-45-12 with ArmorTek® powder coating. It features stainless steel check seats, disc holders, and springs, with silicone elastomer discs and AWWA C606 clamps. Shutoff valves are NRS resilient wedge gate valves.
