8 LF876V-OSY-GPM

Item Number: 0124487
1 1
$38,261.61
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 8 inch
  • Weight: 815.0 lb
  • Lead Free: Yes (Wetted surfaces <0.25% lead)
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Advanced Epoxy Powder Coating
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F to 140°F (continuous)
  • Installation: Horizontal (N-Pattern) or Vertical-Up (Z-Pattern)
  • Bypass Meter: Gallons Per Minute (GPM) Meter

Description

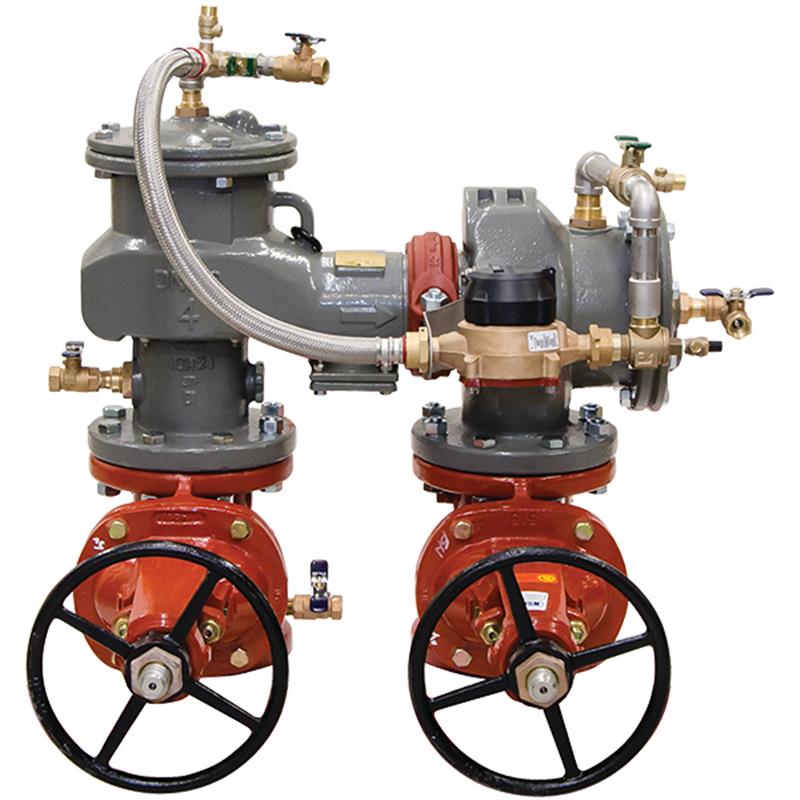

This 8 inch FEBCO MasterSeries LF876V Double Check Detector Backflow Preventer Assembly with OSY shutoff valves and a GPM meter is engineered to protect potable drinking water and fire sprinkler systems from pollution caused by backpressure or backsiphonage. Its lead-free, ductile iron body features ArmorTek® advanced epoxy coating to resist microbial-induced corrosion. The assembly is configurable for horizontal (N-pattern) or vertical-up (Z-pattern) installations and includes a bypass line with a GPM meter for leak detection. It offers a maximum working pressure of 175 psi and is UL Classified, FM Approved, and ASSE 1048 Listed. Item number 0124487.

Help Me Connect

Applications

  • This backflow preventer is specifically designed for installation on potable drinking water systems and fire sprinkler systems. It is essential for applications requiring protection against backpressure and backsiphonage in non-health hazard (pollutant) scenarios, as mandated by local governing water utility codes.

Installation Flexibility

  • The LF876V assembly offers flexible installation with both horizontal (N-Pattern) and vertical-up (Z-Pattern) orientations. These configurable designs can help optimize the installation footprint and reduce associated costs.
  • End connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards, ensuring compatibility with standard piping systems.
View full details

Additional Details

The 8 inch FEBCO MasterSeries LF876V Double Check Detector Backflow Preventer Assembly with OSY shutoff valves and a GPM meter is designed to protect potable water supplies from pollution due to backpressure or backsiphonage. This lead-free assembly is primarily used on potable drinking water systems and fire sprinkler systems where local codes require protection against non-potable water flowing back into the system.

The unit features a configurable design allowing for both N-pattern (horizontal) and Z-pattern (vertical-up) installations, which helps reduce installation footprint and costs. It includes a bypass line with a gallons per minute (GPM) meter to detect potential system leakage or unauthorized water usage.

Construction & Coating

  • Main valve body made from ductile iron Grade 65-45-12.
  • All iron components, including internal and external surfaces, are coated with ArmorTek®, a patented three-part advanced epoxy system.
  • This coating is engineered to resist microbial-induced corrosion (MIC) and protect exposed metal substrate.
  • Wetted surfaces contain less than 0.25% lead by weight, meeting lead-free requirements.

Main Valve Features

  • In-line serviceable design.
  • Horizontal N-pattern and Vertical-Up Z-pattern installation capabilities.
  • Servicing requires no special tools, with access through independent top entry covers.
  • Features a captured modular spring assembly and captured O-ring design.
  • Equipped with reversible and replaceable discs, and field-replaceable seats.
  • Includes stainless steel check components and a clapper check assembly.
  • A winterization feature is included with disc retainers and valve body drain ports.
  • Commonality between 1st and 2nd check components for ease of maintenance.

Auxiliary Bypass Features

  • Compact bypass design that remains within the main valve assembly profile.
  • In-line serviceable 3/4 inch check assembly.
  • No special tools required for servicing the bypass.
  • Features field replaceable seat and disc in the bypass.
  • Equipped with a 5/8 x 3/4 inch Water Meter to detect potential underground water leaks or unauthorized water usage.

Specifications

General

  • Size: 8 inch
  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Model: LF876V Type II
  • Configuration: N-Pattern (Horizontal) and Z-Pattern (Vertical-Up)
  • Lead Free: Yes (Wetted surfaces <0.25% lead)

Pressure & Temperature

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F to 140°F (0.5°C to 60°C) continuous

Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Coating: ArmorTek® advanced epoxy powder coating (internal and external surfaces)
  • Shutoff Valves: OSY resilient wedge gate valve AWWA C515 (UL/FM)
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Bypass Meter

  • Type: Gallons Per Minute (GPM) Meter (5/8 inch x 3/4 inch)
  • Compliance: ANSI/AWWA Standard C700

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Listed: ASSE 1048
  • Classified: UL Classified (U.S. & Canada)
  • Approved: FM Approved
  • Approved: IAPMO/CUPC
  • Compliant: AWWA Standard C510
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

Dimensions & Weight (Approximate)

  • Weight (with OSY Shutoff Valves): 827 lbs (375 kg)

FAQs

What is the primary purpose of the FEBCO MasterSeries LF876V 8 inch backflow preventer?

Its primary purpose is to protect potable drinking water systems and fire sprinkler systems from contamination caused by backpressure or backsiphonage of non-potable water, as required by local codes.

What does the ArmorTek® coating on this backflow preventer do?

The ArmorTek® coating is a patented three-part advanced epoxy system applied to all iron components. It is designed to reduce microbial-induced corrosion (MIC) and protect exposed metal surfaces, extending the product's lifespan.

Can this 8 inch backflow preventer be installed in different orientations?

Yes, the configurable design allows for both horizontal (N-Pattern) and vertical-up (Z-Pattern) installations. This flexibility can help optimize the installation footprint and reduce costs.

What is the function of the GPM meter in the auxiliary bypass line?

The Gallons Per Minute (GPM) meter in the auxiliary bypass line is designed to detect potential underground water leaks or unauthorized water usage within the system, providing an important monitoring capability.

Is this 8 inch backflow preventer suitable for use with potable water?

Yes, this assembly is lead-free, meaning the wetted surfaces contain less than 0.25% lead by weight, making it safe and compliant for use with potable drinking water systems.
