8 LF876WZ-LG-GPM

Item Number: 88007360
1 1
$23,922.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 8 inch
  • Weight: 610.0 lb
  • Lead Free: Yes, <0.25% lead content
  • Z-Pattern for competitor drop-in replacement
  • ArmorTek coating for corrosion resistance
  • Maximum Working Pressure: 175 PSI
  • Features GPM metered bypass for leak detection
  • ASSE 1048, UL Classified, FM Approved, IAPMO/CUPC
  • In-line serviceable check modules for easy maintenance

Description

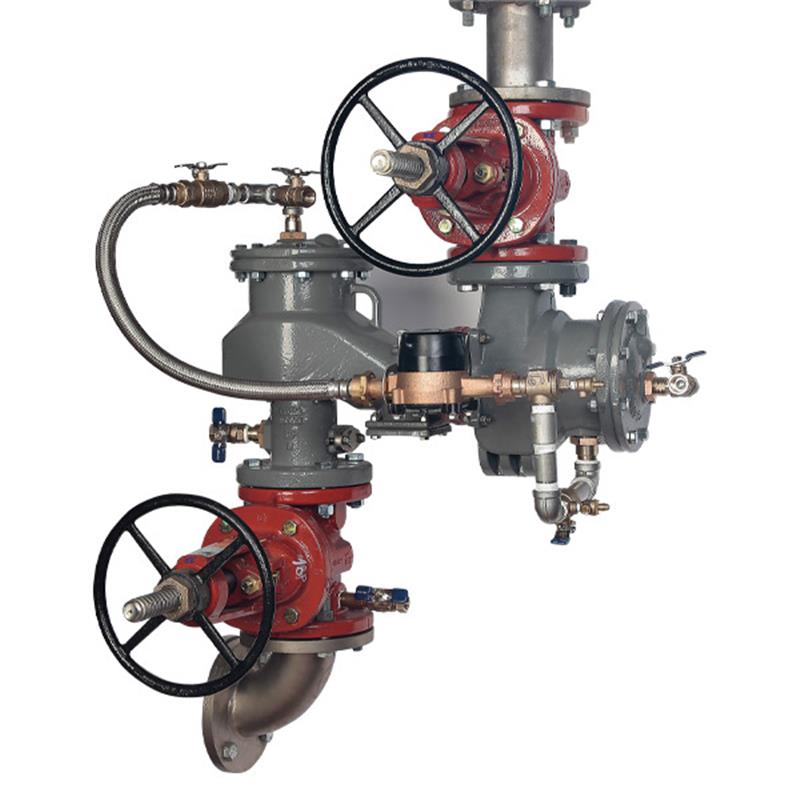

The 8 inch FEBCO MasterSeries LF876WZ Double Check Detector Backflow Preventer is a lead-free assembly designed for non-health hazard applications in potable water and fire sprinkler systems. It prevents reverse flow due to backpressure or backsiphonage. Featuring an ArmorTek coated ductile iron body for superior corrosion resistance and a Z-Pattern lay-length, it offers a direct drop-in replacement for competitor valves. This model includes a GPM metered bypass for leak detection and is approved for both horizontal and vertical installations. It is ASSE 1048, UL Classified, FM Approved, and IAPMO/CUPC certified.

Help Me Connect

Compatibility and Installation

  • This 8 inch FEBCO MasterSeries LF876WZ Double Check Detector Assembly is designed for drop-in replacement of competitor's Z-pattern backflow preventer valves, featuring a compatible longer lay-length.
  • It is suitable for installation on potable drinking water systems and fire sprinkler systems to prevent backpressure and backsiphonage of non-health hazard (pollutant) water.
  • The assembly is approved for both horizontal and vertical-up installation, providing flexibility for various site requirements.
  • End connections are compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards, ensuring broad compatibility with standard piping systems.
  • The integral Gallons Per Minute (GPM) metered bypass is ideal for detecting system leaks or unauthorized water usage within the connected system.
View full details

Additional Details

The 8 inch FEBCO MasterSeries LF876WZ Double Check Detector Assembly (Type II) is a lead-free backflow preventer designed to protect potable water supplies and fire sprinkler systems from non-health hazard pollution caused by backpressure or backsiphonage. This model features a longer lay-length for drop-in replacement of competitor’s Z-pattern valves and includes a gallons-per-minute (GPM) metered bypass for leak detection.

Key Features

  • Lead Free construction ensures the wetted surface contains less than 0.25% lead by weight.
  • ArmorTek Coating Technology provides advanced three-part epoxy protection against microbial-induced corrosion (MIC) and exposed metal substrate corrosion on internal and external ductile iron components.
  • Designed for Z-Pattern installations, offering drop-in replacement capability for competitor valves.
  • Less Shutoff Valves configuration.
  • Includes a Gallons Per Minute (GPM) Metered Bypass to detect potential underground water leaks or unauthorized water usage.
  • Features two in-line, independently acting clapper-style check modules with field-replaceable stainless steel seats and silicone discs.
  • In-line serviceable assembly with captured modular spring design, requiring no special tools for maintenance.
  • Approved for both horizontal and vertical-up installations.

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product. Inquire with governing authorities for local installation requirements.

Specifications

General

  • Product Type: Double Check Detector Backflow Preventer Assembly
  • Model Series: LF876W/WZ MasterSeries® (Type II)
  • Size: 8 inch
  • Lead Free: Yes (Wetted surface contains <0.25% lead by weight)
  • Lay Length: Z-Pattern, Competitor Drop-in Replacement
  • Shutoff Valves: Less Shutoff Valves
  • Bypass: Type II, Gallons Per Minute (GPM) Metered
  • Installation Orientation: Horizontal or Vertical Up

Materials

  • Main Valve Body: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Powder Coating (internal and external surfaces)
  • Check Seats: Stainless Steel
  • Disc Holder: Stainless Steel
  • Elastomer Disc: Silicone
  • Spring: Stainless Steel
  • Clamp: AWWA C606

Pressure & Temperature

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Listed: ASSE 1048
  • Classified: UL Classified (U.S. & Canada)
  • Approved: FM Approved
  • Certified: IAPMO/CUPC
  • Compliant to: AWWA Standard C510
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Meter Compliant to: ANSI/AWWA Standard C700
  • B64.5

FAQs

What is the primary purpose of the FEBCO MasterSeries LF876WZ Double Check Detector Assembly?

Its primary purpose is to protect potable drinking water and fire sprinkler systems from pollution caused by backpressure or backsiphonage of non-health hazard water, while also detecting potential leaks or unauthorized water usage via its metered bypass.

What does "Lead Free" mean for this product?

"Lead Free" signifies that the wetted surfaces of this product, which come into contact with consumable water, contain less than 0.25% lead by weight, ensuring compliance with health standards.

Can this backflow preventer be used to replace other brands?

Yes, this FEBCO MasterSeries LF876WZ assembly is specifically designed with a longer Z-Pattern lay-length to serve as a direct drop-in replacement for competitor's Z-pattern valves.

What is the significance of the ArmorTek coating?

The ArmorTek coating is a patented three-part advanced epoxy system applied to the ductile iron components to reduce microbial-induced corrosion (MIC) and protect the exposed metal substrate from degradation, enhancing the assembly's longevity.

Does this model include shutoff valves?

No, the 8 LF876WZ-LG-GPM model is configured "Less Shutoff Valves" (LG). Shutoff valves would need to be sourced separately if required for the installation.
