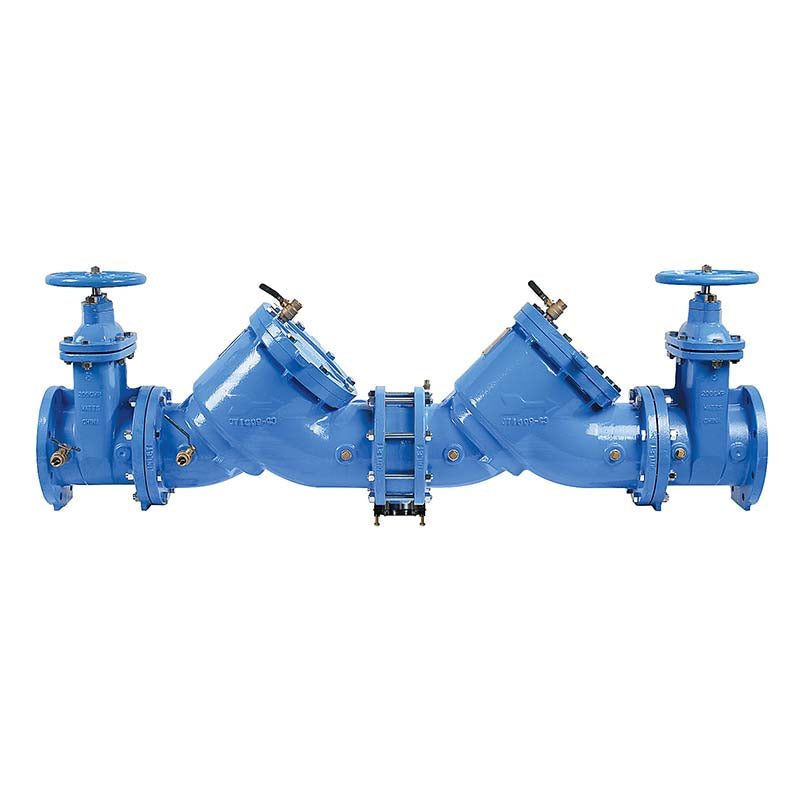

8 LF909M1-DNRS-FS

Item Number: 88009327
Skip to product information
1 of 1
Regular price $55,510.28
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts

  • Nominal Pipe Size: 8 inch
  • Weight: 1456.0 lb
  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Shutoff Valves: Domestic Non-Rising Stem (NRS) Resilient Seated Gate Valves
  • Body Material: Cast Iron with ArmorTek® Coating
  • Maximum Working Pressure: 175 psi
  • Lead Free: Yes
  • Flood Sensor: Integrated with SentryPlus Alert® technology
  • Certifications: ASSE Std. 1013, AWWA C511-92, CSA B64.4

Description

The 8 inch Watts Series LF909 Lead Free Reduced Pressure Zone Backflow Preventer Assembly provides critical protection for potable water supplies against contamination from backsiphonage and backpressure. Featuring a durable cast iron body with advanced ArmorTek® coating, it resists microbial-induced corrosion. Domestic non-rising stem resilient seated gate valves ensure reliable operation. An integrated flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge, with optional connectivity to BMS or cellular networks for alerts. This assembly is designed for continuous pressure applications and meets strict standards including ASSE 1013, AWWA C511-92, and CSA B64.4, with a maximum working pressure of 175 psi. Item number 88009327.

Help Me Connect

Flood Sensor Connectivity

  • The integrated flood sensor with SentryPlus Alert® technology requires an add-on connection kit for activation and communication. Without this kit, the sensor operates as a passive component.
  • Compatible connection kit options allow integration with Building Management Systems (BMS) and cellular communication networks.
  • When paired with the Sensor Control Monitor, the assembly can deliver maintenance alerts to BAS (Building Automation Systems) via RS-485 Modbus or connect to the Nexa® platform through Wi-Fi connectivity.

Installation Considerations

  • Installation of a drain line is recommended to manage discharge.
  • When installing a drain line, ensure a proper air gap is maintained.
View full details

Collapsible content

Additional Details

The 8 inch Lead Free Watts Series LF909 Reduced Pressure Zone (RPZ) backflow preventer assembly is designed to protect potable water supplies from cross-connection contamination due to backsiphonage and backpressure. It is suitable for continuous pressure piping applications and health hazard cross-connections.

This assembly features a robust cast iron body with domestic non-rising stem (NRS) resilient seated gate valves, captured spring check valves, replaceable seats, and a field reversible pressure differential relief valve.

Advanced Protection & Coating

  • Features ArmorTek® coating technology, a patented 3-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.
  • Lead Free* construction ensures compliance with national plumbing codes for potable water.

Relief Valve Design

  • Exclusive "air-in/water-out" relief valve design provides maximum capacity discharge performance during emergency conditions of combined backsiphonage and backpressure, even with both checks fouled.
  • Field reversible relief valve for installation flexibility.

Flood Detection & Alerts

  • Integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve, preventing potential flooding and costly damage.
  • Flood alerts are activated with an add-on sensor connection kit, enabling compatibility with BMS (Building Management Systems) and cellular network communication, or the Nexa platform via Wi-Fi.
  • Includes an industrial-strength sensing hose for reliable operation.

Durable Construction & Easy Maintenance

  • Cast iron body construction with fused epoxy coated and lined checks.
  • Stainless steel internal parts ensure long-lasting performance.
  • Designed with replaceable seats and captured spring check assemblies, requiring no special tools for servicing.
Note: An add-on connection kit is required to activate the flood sensor for communication with other devices. The flood sensor does not replace the need to comply with all installation and maintenance regulations, including providing proper drainage.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Series: LF909
  • Nominal Pipe Size: 8 inch
  • Shutoff Valves: Domestic Non-Rising Stem (NRS) Resilient Seated Gate Valves
  • Body Construction: Cast Iron
  • Coating: ArmorTek® Powder Coating
  • Maximum Working Pressure: 175 psi (12.06 bar)
  • Temperature Range: 33°F to 110°F (0.5°C to 43°C) continuous, 140°F (60°C) intermittent

Materials

  • Check Valve Body: Cast Iron
  • Relief Valve Body: Cast Iron
  • Seats: Stainless Steel
  • Trim: Stainless Steel
  • Test Cock: Lead Free* Copper Silicon Alloy

Certificates & Approvals

  • ASSE Std. 1013
  • AWWA C511-92
  • CSA B64.4
  • UL Classified File No. EX3185
  • IAPMO (UPC)
  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at USC
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary purpose of the Watts Series LF909 backflow preventer?

The primary purpose of the Watts Series LF909 backflow preventer is to protect potable water supplies from contamination caused by backsiphonage or backpressure from non-potable sources. It ensures water safety in continuous pressure piping systems and health hazard cross-connections.

What does "Lead Free" mean for this backflow preventer?

"Lead Free" for this product means that the wetted surfaces contacting consumable water contain less than 0.25% lead by weight. This complies with national plumbing codes for safe potable water installations.

How does the ArmorTek® coating benefit this assembly?

The ArmorTek® coating is a patented three-part advanced epoxy system applied to the cast iron body. It is specifically engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates, enhancing the longevity and durability of the assembly.

How does the integrated flood sensor work, and what is required to activate it?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate its communication features and relay alerts, an add-on connection kit is required. Without the kit, the sensor remains a passive component.

What type of shutoff valves are included with this 8-inch assembly?

This 8-inch Watts Series LF909 assembly includes domestic non-rising stem (NRS) resilient seated gate valves. These valves provide reliable isolation and control for the backflow prevention assembly.
