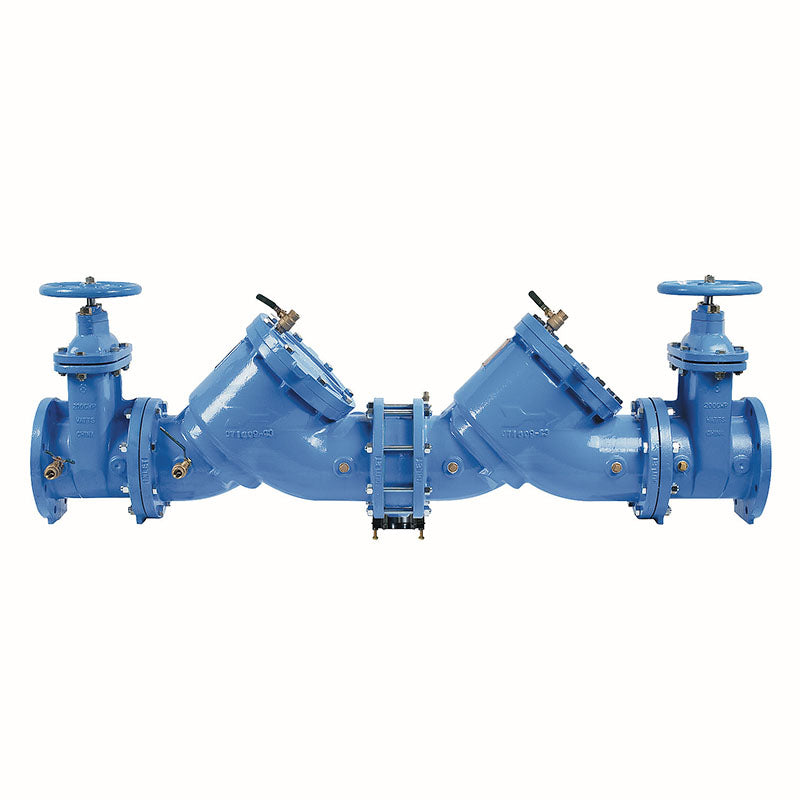

8 LF909M1-NRS-FS

Item Number: 88009312
1 1
$47,707.26
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 8 inch
  • Body Material: Cast Iron
  • Coating: ArmorTek Powder Coating
  • Maximum Working Pressure: 175 PSI
  • Shutoff Valves: Non-Rising Stem (NRS)
  • Flood Sensor: SentryPlus Alert® Technology
  • Lead Free Construction
  • Certifications: ASSE 1013, AWWA C511-92, CSA B64.4

Description

This 8 inch Lead Free reduced pressure zone backflow preventer assembly, SKU 88009312, protects potable water supplies from hazardous cross-connections and backflow. Designed for continuous pressure piping, it features a durable cast iron body with ArmorTek® advanced epoxy coating for superior corrosion resistance against MIC and metal substrate. The unique air-in/water-out relief valve ensures high discharge capacity during emergencies. Equipped with non-rising stem resilient seated gate valves and a flood sensor with SentryPlus Alert® technology, it detects excessive water discharge. An add-on kit is needed to activate the sensor for BMS, cellular, or Wi-Fi alerts.

Help Me Connect

Flood Sensor Connectivity

This backflow preventer features a flood sensor with SentryPlus Alert® technology. To activate the sensor and enable alert notifications, an add-on connection kit is required (sold separately). Without this kit, the sensor remains a passive component with no communication capabilities.

  • Connect the sensor via an add-on kit for BMS (Building Management System) integration.
  • Utilize an add-on kit for cellular communication to relay alerts.
  • Integrate with BAS (Building Automation Systems) via RS-485 Modbus using the Sensor Control Monitor kit.
  • Connect to the Nexa® platform through Wi-Fi connectivity using the Sensor Control Monitor kit.
View full details

Additional Details

This 8 inch Lead Free reduced pressure zone backflow preventer assembly prevents the reverse flow of polluted water from entering the potable water supply due to backsiphonage or backpressure. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards or other contaminants at the service line entrance.

Construction & Design

  • Features an epoxy coated cast iron body for durability.
  • Equipped with non-rising stem resilient seated gate valves.
  • Includes captured spring check valves and replaceable seats for easy maintenance.
  • Designed with a field reversible pressure differential relief valve and top mounted test cocks.
  • The unique patented air-in and water-out relief valve design provides maximum discharge capacity during emergency conditions.

Corrosion Protection

  • Features ArmorTek® coating technology, a patented 3-part advanced epoxy system, engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.

Flood Detection

  • Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • An add-on connection kit (sold separately) is required to activate the sensor and relay alerts. Connection options include BMS, cellular communication, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform via Wi-Fi.

Specifications

  • Size: 8 inch
  • Body Material: Cast Iron
  • Coating: ArmorTek Powder Coating (internal and external surfaces)
  • Seat Material: Stainless Steel
  • Trim Material: Stainless Steel
  • Relief Valve Body Material: Cast Iron
  • Test Cock Material: Lead Free Copper Silicon Alloy
  • Minimum Continuous Temperature: 33°F (0.5°C)
  • Maximum Continuous Temperature: 110°F (43°C)
  • Intermittent Temperature: 140°F (60°C)
  • Maximum Working Pressure: 175 PSI (12.06 bar)

Features

  • Shutoff Valves: Non-Rising Stem (NRS) resilient seated gate valves
  • Relief Valve Design: Air-in/Water-out (field reversible)
  • Check Assemblies: Captured Spring, Fused Epoxy Coated and Lined
  • Seats: Replaceable
  • Internal Parts: Stainless Steel
  • Flood Sensor: SentryPlus Alert® Technology (on relief valve)

Certificates & Approvals

  • ASSE: 1013
  • AWWA: C511-92
  • CSA: CSA B64.4
  • IAPMO: PS 31 (UPC)
  • SBCCI: Standard Plumbing Code
  • UL: Classified (File No. EX3185)
  • FM: Approved
  • NSF: Certified to NSF/ANSI 61-G
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

FAQs

What is the primary purpose of the Watts LF909 Reduced Pressure Zone Assembly?

The primary purpose is to prevent the reverse flow of polluted water into the potable water supply due to backsiphonage or backpressure, protecting against health hazards at cross-connections.

Is this backflow preventer compliant with "Lead Free" requirements?

Yes, the Watts Series LF909 features Lead Free construction, meaning the wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

How does the ArmorTek® coating benefit this backflow preventer?

The ArmorTek® coating is a patented three-part advanced epoxy system designed to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates, enhancing the durability and lifespan of the iron components.

How does the flood sensor feature work and what is required to use it?

The flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate the sensor and enable alert relay to facility personnel, an add-on connection kit (sold separately) is required.

What are the maximum operating pressure and temperature ratings for this assembly?

This assembly has a maximum working pressure of 175 PSI (12.06 bar) and a continuous operating temperature range of 33°F (0.5°C) to 110°F (43°C), with an intermittent temperature rating of 140°F (60°C).
