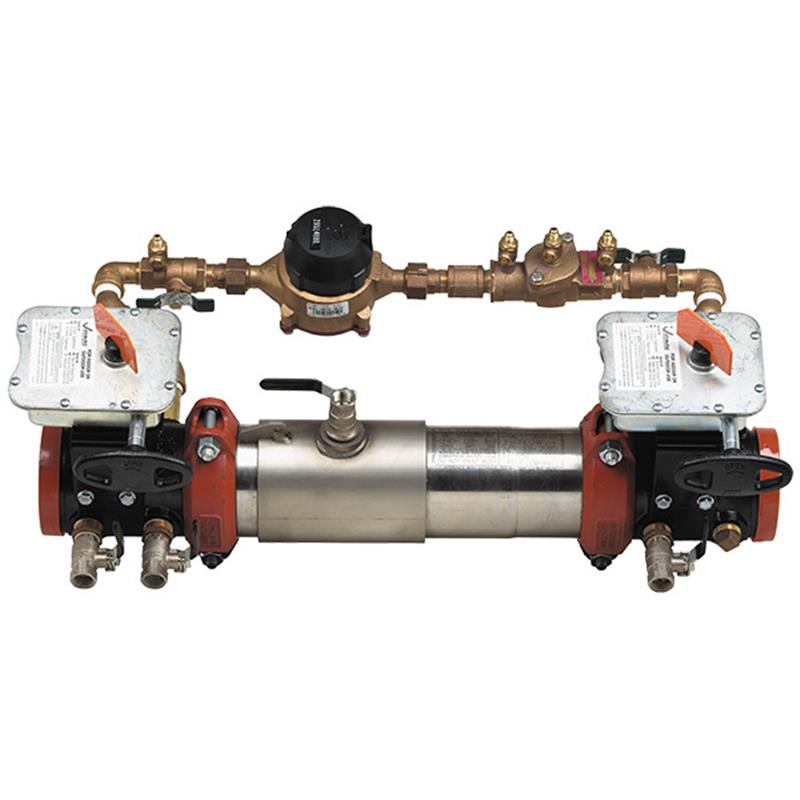

8 LFC300-BFG-GPM

Item Number: 0124596
1 1
$21,748.06
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 8 inch Lead Free Double Check Detector Backflow Preventer
  • Weight: 350.0 lb
  • Prevents backflow of pollutants in potable water systems
  • Suitable for fire sprinkler systems and non-health hazard applications
  • 304 (Schedule 40) stainless steel housing and sleeve
  • Grooved gear operated butterfly valves with tamper switch
  • Patented Tri-Link checks for low pressure loss
  • Integrated bypass assembly with gallon per minute meter
  • Approved for horizontal, vertical, or N pattern installations

Description

The Colt 8 inch lead free double check detector backflow preventer assembly (LFC300-BFG-GPM) prevents backflow of non-toxic pollutants into potable water systems. Ideal for fire line sprinkler systems and non-health hazard applications, this assembly features a compact design with a 304 stainless steel housing and sleeve. It includes grooved gear operated butterfly valves with tamper switches and patented Tri-Link checks for low pressure loss. The integrated bypass assembly comes with a gallon per minute meter to detect leaks and unauthorized water use. Approved for horizontal, vertical, or N pattern installations, ensuring versatile application. Item number 0124596.

Help Me Connect

This 8 inch Colt Double Check Detector Backflow Preventer Assembly is designed for easy integration into your plumbing system.

  • The main housing utilizes grooved end connections for secure and straightforward installation into a pipeline.
  • The integrated bypass assembly is equipped with ASME/ANSI flanged end connections.
View full details

Additional Details

This Colt™ 8 inch lead free double check detector backflow preventer assembly is designed to prevent the reverse flow of pollutants that are objectionable, but not toxic, from entering the potable water supply system. It is primarily used on fire line sprinkler systems to monitor unauthorized use of water, and for use in non-health hazard applications.

Features

  • Extremely compact design allows for smaller vaults and enclosures.
  • Constructed with 304 (Schedule 40) stainless steel housing and sleeve for durability.
  • Groove fittings allow integral pipeline adjustment and ease of serviceability.
  • Features patented Tri-Link check valves that provide the lowest pressure loss and are removable for maintenance without special tools.
  • Includes grooved gear operated butterfly valves with tamper switch for shutoff.
  • Bypass assembly includes a meter which registers in gallons per minute to detect underground leaks and unauthorized water use.
  • Suitable for horizontal, vertical, or N pattern installations.
  • Equipped with reversible elastomer check disc rubber for drip tight closure against reverse flow.

Specifications

  • Product Type: Double Check Detector Backflow Preventer
  • Size: 8 inch
  • Brand: Colt (Ames Fire & Waterworks)
  • Lead Free: Yes (wetted surface contains less than 0.25% lead by weight)
  • Housing & Sleeve Material: 304 (Schedule 40) stainless steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Tri-Link Checks Material: Noryl®, Stainless Steel
  • Check Discs Material: Reversible Silicone or EPDM
  • Test Cocks Material: Lead Free* bronze body
  • Pins & Fasteners Material: 300 Series stainless steel
  • Springs Material: Stainless steel
  • Shutoff Valves: Grooved gear operated butterfly valves with tamper switch
  • Main Connection Type: Grooved end connections
  • Bypass Connection Type: ASME/ANSI flanged end connections
  • Configurations: Horizontal, Vertical up, N pattern horizontal
  • Maximum Working Pressure: 175 psi (12.06 bar)
  • Temperature Range: 33°F - 110°F (5°C - 43°C)
  • Weight: 275 lb (125 kg)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1048
  • B64.5
  • ULUS Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 372

FAQs

What is the primary use of this Colt backflow preventer?

This backflow preventer is designed to prevent the reverse flow of objectionable, non-toxic pollutants into potable water systems. It is primarily used on fire line sprinkler systems and for non-health hazard applications.

Is this 8 inch backflow preventer considered lead free?

Yes, this Colt double check detector backflow preventer is Lead Free. The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

What type of connections does the main housing of this assembly use?

The main housing of this 8 inch Colt backflow preventer is constructed with grooved end connections. The bypass assembly features ASME/ANSI flanged end connections.

Can this backflow preventer be installed in any orientation?

Yes, this assembly is approved for horizontal, vertical up, or N pattern horizontal installations, offering flexibility for various site requirements.

What kind of shutoff valves are included with this model?

This LFC300-BFG model includes UL Classified and FM Approved grooved gear operated butterfly valves with an integrated tamper switch on each gate valve.
