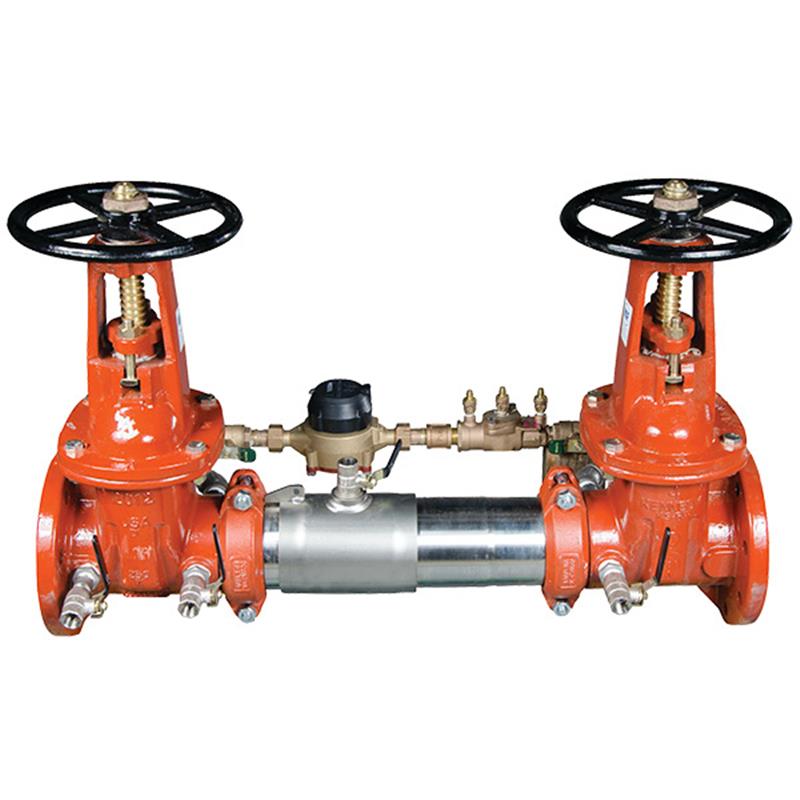

This Colt™ 8 inch lead free double check detector backflow preventer assembly (DCDA) is designed to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply due to backsiphonage and/or backpressure.

It is primarily used for cross-connections identified as non-health hazards, such as on fire sprinkler systems, and to monitor unauthorized water use or detect underground leaks at the service line entrance.

Key Features

• Lead Free construction, with wetted surfaces containing less than 0.25% lead by weight.
• Features an extremely compact design and is 70% lighter than traditional designs for easier installation and smaller vault requirements.
• Constructed with a 304 (Schedule 40) stainless steel housing and sleeve for durability.
• Equipped with two independent patented Tri-Link Check modules, designed for lowest pressure loss and unmatched ease of serviceability.
• Tri-Link Checks feature reversible elastomer discs and are removable and serviceable without special tools.
• Includes two OS&Y (Outside Stem and Yoke) resilient seated gate valves that are UL Classified and FM Approved.
• An integrated supervisory switch (UL Certified, Safety Signaling, Control No. 3L38) is an option on each gate valve, designed to send a tamper signal if the valve is closed or the switch is removed.
• Furnished with a gallon per minute meter in the bypass assembly for leak detection and monitoring water usage.
• May be used for horizontal, vertical up, or "N" pattern installations.

NOTICE: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product. Inquire with governing authorities for local installation requirements.
