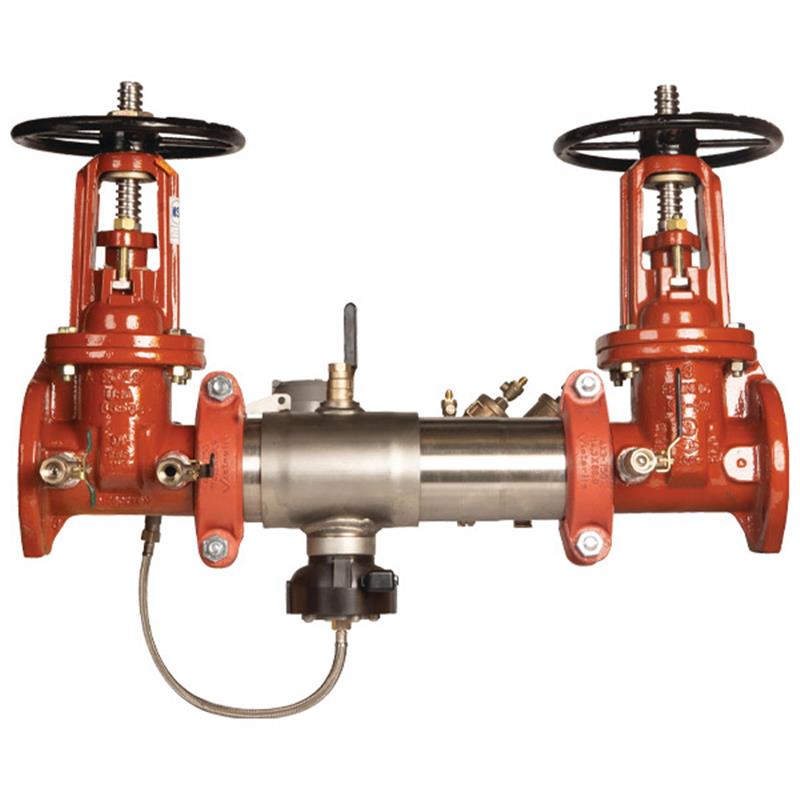

8 LFC500-OSY-G-FS

Item Number: F0124643
1 1
$28,452.95
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 8 inch
  • Weight: 647.0 lb
  • Lead Free* Reduced Pressure Detector Assembly
  • Housing & Sleeve Material: Type 304 Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Includes flood sensor with SentryPlus Alert® technology
  • UL Classified and FM Approved OSY gate valves
  • Metered bypass for leak detection

Description

The Colt LFC500 8 inch Lead Free Reduced Pressure Detector Assembly protects potable water systems from contamination due to backsiphonage and backpressure, suitable for health hazard cross-connections like fire sprinkler systems. This compact, modular unit features a durable Type 304 stainless steel body, UL Classified and FM Approved OSY gate valves, and a metered bypass for leak detection. An integrated flood sensor with SentryPlus Alert® technology monitors for relief valve discharges. It operates from 33°F to 110°F with a maximum working pressure of 175 psi. Item number F0124643.

Help Me Connect

Connections and Flood Sensor Integration

  • This 8 inch LFC500-OSY-G-FS model features grooved inlet and outlet gate connections for easy pipeline integration.
  • The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. For active alerts and communication, an add-on sensor connection kit is required.
  • Connection kit options include BMS, cellular communication, or the Sensor Control Monitor for integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

This Colt™ 8 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly is designed to protect potable water systems from contamination due to backsiphonage and backpressure. It is ideal for safeguarding against health hazards at cross-connections, such as fire sprinkler systems and service line entrances, while also monitoring for unauthorized water use.

The LFC500 series features a compact, modular design with a quick-access stainless steel sleeve and includes a flood sensor with SentryPlus Alert® technology.

Key Features

  • Provides protection against backsiphonage and backpressure contamination.
  • Lead Free* construction for potable water systems.
  • Manufactured with a Type 304 (Schedule 40) stainless steel body and sleeve for durability.
  • Features a bottom-mounted cast stainless steel relief valve with integrated flood detection sensor.
  • Includes a metered bypass with a gallon per minute meter for detecting leaks and unauthorized water usage.
  • Equipped with UL Classified and FM Approved outside stem and yoke (OSY) resilient seated gate valves.
  • Flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge; requires an add-on connection kit for active alerts.
  • Extremely compact design, 70% lighter than traditional designs.

An add-on connection kit is required to activate the flood sensor for communication; without it, the flood sensor is a passive component. Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.

Specifications

  • Size: 8 inch
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna-N
  • Link Check Material: Noryl®, Stainless Steel
  • Check Disc Material: Reversible Silicone or EPDM
  • Test Cocks Body Material: Lead Free* Bronze (Nickel Plated)
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Shutoff Valves: Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Inlet/Outlet Connection: Grooved
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Configuration: Horizontal

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC) (OSY only excluding N and Z configurations sizes 6" – 10")
  • Standard: AWWA C511-97
  • Standard: ASSE 1047
  • Standard: CSA B64.4
  • Classification: cULus Classified (BFG & OSY Only)
  • Approval: FM Approved (BFG & OSY Only)
  • Certification: NSF Certified to NSF/ANSI 372

FAQs

What type of contamination does this backflow preventer protect against?

This device protects potable water systems from contamination caused by backsiphonage and backpressure, making it suitable for health hazard cross-connections like fire sprinkler systems.

What is the main body material of the LFC500 backflow preventer?

The entire valve body and closure sleeve are manufactured from durable Type 304 (Schedule 40) stainless steel.

Does this backflow preventer include a flood detection feature?

Yes, it includes a flood sensor with SentryPlus Alert® technology on the relief valve to detect excessive water discharges. An add-on connection kit is required to activate communication and alerts.

What are the operating pressure and temperature limits for this assembly?

The maximum working pressure for this backflow preventer is 175 psi (12.1 bar), and it can operate in a temperature range of 33°F to 110°F (0.5°C – 43°C).

Are the shutoff valves on this model approved by industry standards?

Yes, this assembly is furnished with UL Classified and FM Approved outside stem and yoke (OSY) resilient seated gate valves.
