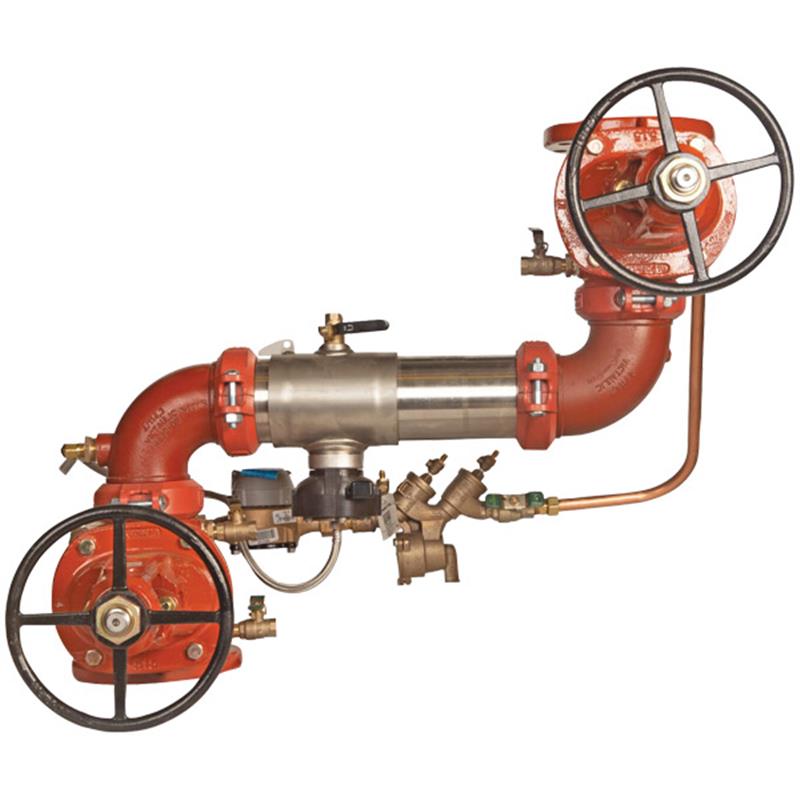

8 LFC500Z-OSY-C-FS

Item Number: F0124657
1 1
$30,996.68
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 8 inch
  • Weight: 723.0 lb
  • Lead Free Construction
  • Housing Material: Type 304 Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • Installation Configuration: Horizontal Z-Pattern
  • Flood Sensor with SentryPlus Alert® Technology
  • Bypass Meter: Cubic Feet Per Minute (CFM)
  • UL Classified and FM Approved

Description

The Colt 8 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly (LFC500) protects potable water systems from contamination by back-siphonage and backpressure. This Z-pattern unit monitors unauthorized water usage with a cubic feet per minute (CFM) bypass meter and features a flood sensor with SentryPlus Alert® technology to detect relief valve discharge. Activating the flood sensor requires an add-on connection kit. Constructed with durable Type 304 stainless steel, it is UL Classified and FM Approved, ensuring reliable performance for fire protection systems. Item number F0124657.

Help Me Connect

This backflow preventer's flood sensor requires an add-on sensor connection kit for activation to detect excessive water discharges. Without this kit, the flood sensor acts as a passive component and will not communicate with other devices. Connection kit options include Building Management System (BMS) integration, cellular communication, or the Sensor Control Monitor.

The Sensor Control Monitor enables integration with a Building Automation System (BAS) via RS-485 Modbus or with the Nexa® platform through Wi-Fi.

View full details

Additional Details

The Colt 8 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly (LFC500) provides protection to potable water systems from contamination due to backsiphonage and backpressure, commonly used in health-hazard applications. It is also designed to monitor for unauthorized water use from fire protection systems and features a flood sensor to detect excessive water discharges from the relief valve.

Features

  • Lead Free* construction to comply with installation requirements
  • Extremely compact design and 70% lighter than traditional designs
  • Type 304 (Schedule 40) stainless steel housing and sleeve for durability
  • Groove fittings for integral pipeline adjustment
  • Patented link check for lowest pressure loss and unmatched ease of serviceability
  • Replaceable check disc rubber (reversible silicone or EPDM)
  • Bottom-mounted cast stainless steel relief valve with integrated flood sensor
  • Metered bypass with cubic feet per minute (CFM) meter to detect leakage or theft of water
  • Optional integrated supervisory switch on each gate valve (for OS&Y models)
  • Flood alert feature activated by an add-on sensor connection kit to relay multichannel alerts for potential flooding

*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Product Type: Reduced Pressure Detector Assembly
  • Size: 8 inch
  • Lead Free: Yes
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna-N
  • Link Checks Material: Noryl®, Stainless Steel
  • Check Discs Material: Reversible Silicone or EPDM
  • Test Cocks Material: Lead Free* Bronze
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Configuration: Horizontal Z-Pattern
  • Bypass Meter: Cubic Feet Per Minute (CFM)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)

Certificates & Approvals

  • ASSE 1047
  • CSA B64.4
  • CULUS Classified
  • FM Approved
  • NSF/ANSI 372 Certified
  • AWWA C511-97

FAQs

What is the primary function of this backflow preventer?

This 8 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly is designed to protect potable water systems from contamination caused by back-siphonage or backpressure from fire protection systems.

How does the flood sensor work and what does it detect?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When activated with an add-on connection kit, it relays signals to notify personnel of potential flooding.

Is this product suitable for Lead-Free installations?

Yes, this assembly features Lead Free construction, meaning the wetted surfaces that contact consumable water contain less than 0.25% lead by weight, complying with Lead Free installation requirements.

What materials are primarily used in the construction of the housing?

The housing and sleeve of this backflow preventer are constructed from durable Type 304 (Schedule 40) stainless steel, offering high corrosion resistance and strength.

What type of bypass meter is included with this assembly?

This assembly is furnished with a cubic feet per minute (CFM) bypass meter, which is used to detect underground leaks and unauthorized water usage within the fire sprinkler system.
