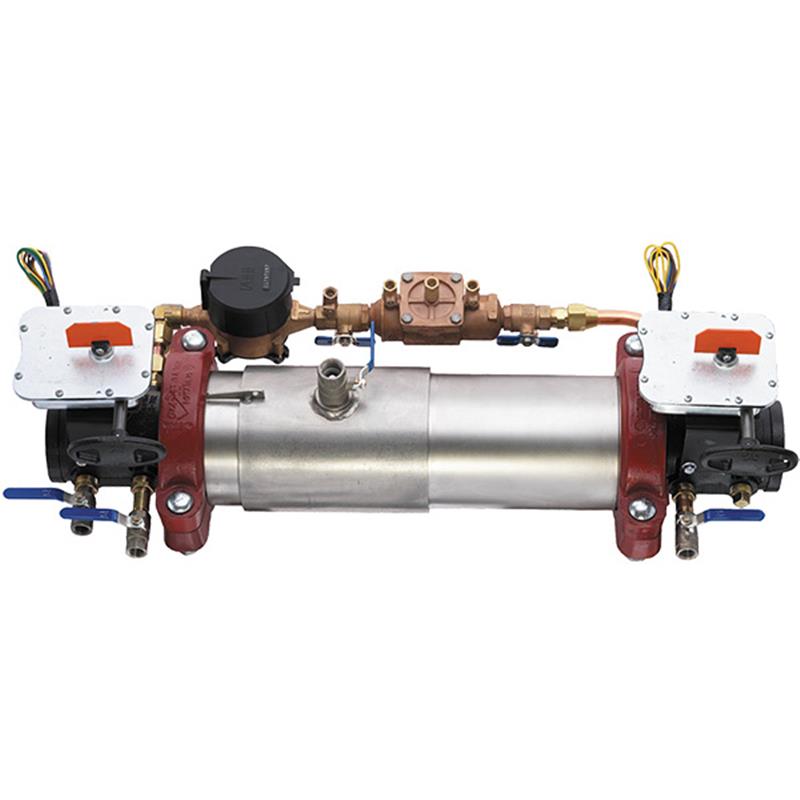

This 8 inch Maxim™ double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply. It protects against backsiphonage and backpressure in accordance with national plumbing codes and water authority requirements.

It is ideal for protecting cross-connections identified as non-health hazards, such as on fire sprinkler systems and to prevent contaminants at the service line entrance. This compact assembly is approved for horizontal or vertical installation, following the direction of the flow arrow.

Construction & Features

• Features a stainless steel body with a single access sleeve for easy maintenance.
• Equipped with tri-link check valves for the lowest pressure loss.
• Includes grooved gear operated butterfly valves with a tamper switch.
• Furnished with a gallon per minute (GPM) meter to detect underground leaks and unauthorized water use.
• Compact modular design allows for smaller vaults and enclosures.
• Stainless steel construction provides long-term corrosion protection and maximum strength.
• Features replaceable check disc rubber.
• Includes four test cocks for easy testing.

Installation Notice: The information provided is not intended to replace full product installation and safety information. A trained product installer should thoroughly read all instructions before beginning installation.
