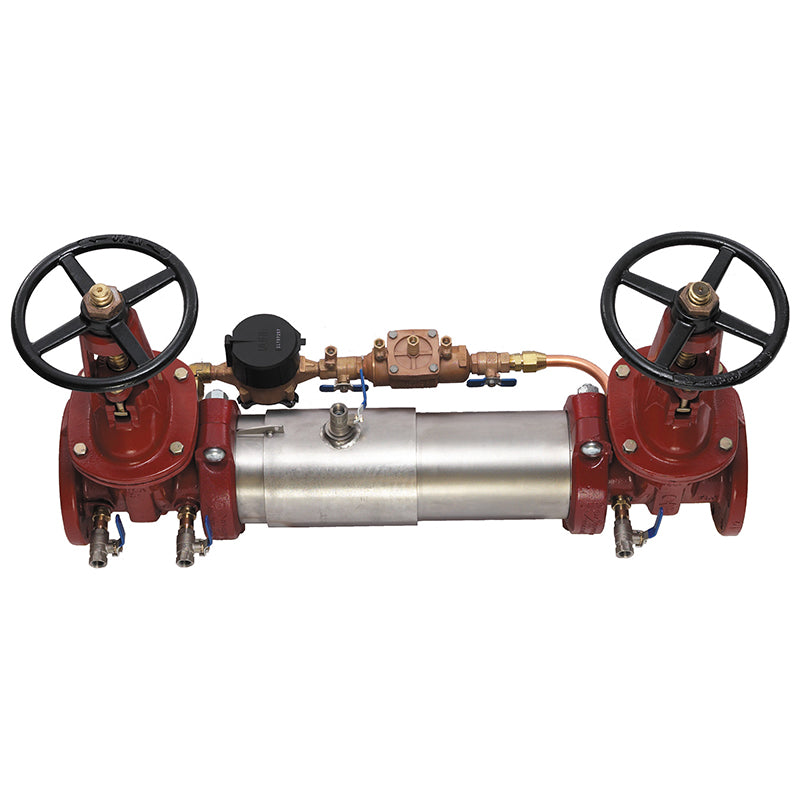

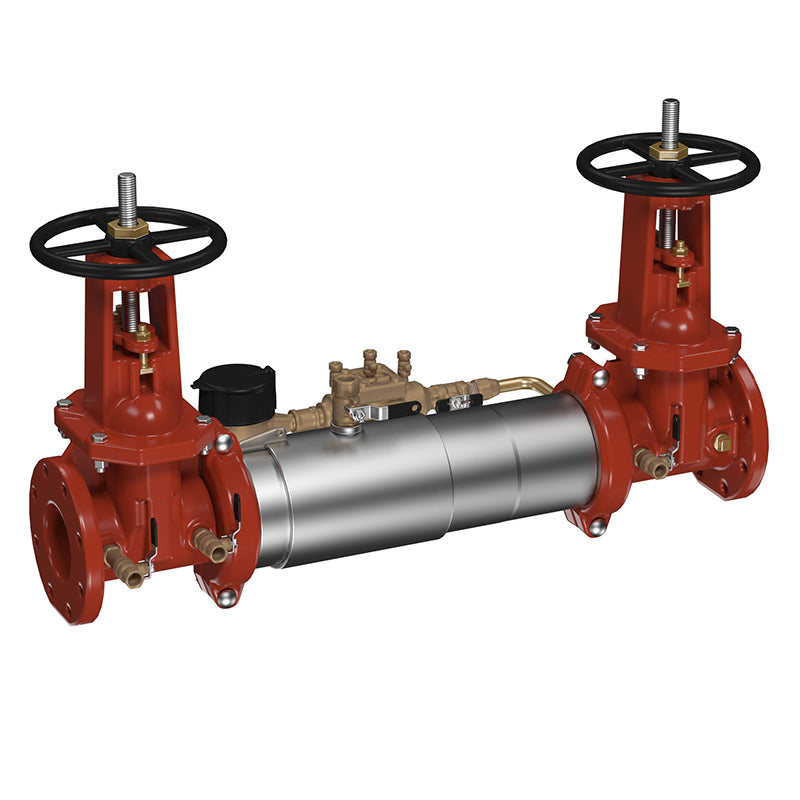

This Maxim 8 inch double check detector backflow preventer assembly is designed to protect drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements. It prevents the reverse flow of fire protection substances and non-potable quality water from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure.
It is ideal for protection at cross-connections identified as non-health hazards, such as on fire sprinkler systems and from other contaminants found at the service line entrance. The compact modular design with a single access sleeve allows for easy maintenance.
Features
- Prevents reverse flow due to backsiphonage and backpressure
- Protects potable water supplies from non-health hazard cross-connections
- Features a compact modular design and single access sleeve for easy maintenance
- Equipped with Tri-Link Check valves for lowest pressure loss
- Comes with a gallon per minute meter to detect underground leaks and unauthorized water use
- 70% Lighter than Traditional Designs
- Unmatched Ease of Serviceability
- Replaceable Check Disc Rubber
Construction
- Housing and sleeve constructed from 304 (Schedule 40) stainless steel for long-term corrosion protection and maximum strength
- Features outside stem and yoke (OSY) resilient seated gate valves
- Includes four test cocks for verification and testing
- Patented Tri-Link Check provides lowest pressure loss
- Groove Fittings Allow Integral Pipeline Adjustment
A WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.
