Valve Type: Reduced Pressure Zone Backflow Preventer Assembly
Shutoff Valves: NRS Gate Valves
Installation Pattern: Horizontal N Pattern
Weight: 70% lighter than traditional designs
Check Modules: Link Check, Torsion Spring
Features: Drip Tight Shutoff Valves
Description

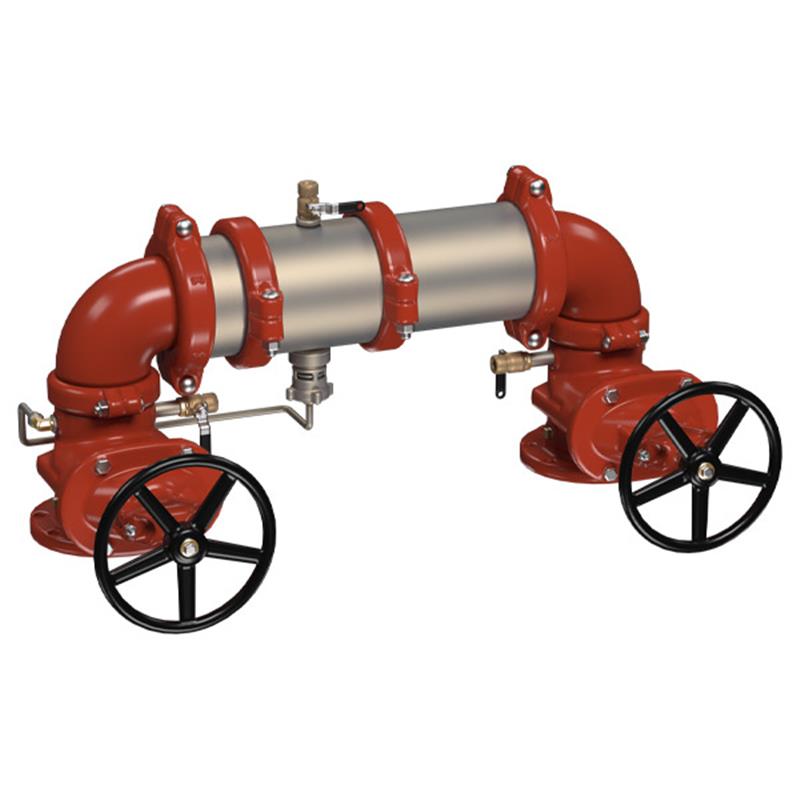

The 8 inch Maxim Reduced Pressure Zone Backflow Preventer Assembly with NRS Shutoff Valves is designed to safeguard potable water from contamination due to backsiphonage or backpressure from non-potable sources, including fire protection substances. This compact, lead-free unit features durable 304 stainless steel construction and link check modules for the lowest pressure loss. Weighing 70% less than traditional designs, it simplifies installation in continuous pressure piping applications. Approved for horizontal N pattern installation, it provides reliable protection at health hazard cross-connections.
Help Me Connect
Installation & Connections
This assembly is designed for horizontal N pattern installation and must be installed in accordance with the direction of the flow arrow.
It features groove couplings for easy installation and pipe alignment with compatible piping systems.
This Maxim™ 8 inch lead free Reduced Pressure Zone Backflow Preventer Assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure.
It is suitable for continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly is approved for horizontal N pattern installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow.
Features
Features a 304 (Schedule 40) stainless steel housing and sleeve for durability.
Equipped with replaceable check disc rubber for easy maintenance.
Extremely compact design allows for small enclosures to be used.
Torsion spring check modules provide ease of serviceability and lowest pressure loss.
Groove couplings are included for easy installation and pipe alignment.
Approximately 70% lighter than traditional designs for easier handling and installation.
Includes drip tight shutoff valves and a bottom mounted stainless steel relief valve.
Shutoff valves are resilient seated gate valves with non-rising stems (NRS).
Installation Notice: The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.
Specifications
Size: 8 inch
Assembly Type: Reduced Pressure Zone Backflow Preventer
Weight Reduction: 70% lighter than traditional designs
Pressure Loss: Lowest (with Link Check Modules)
FAQs
What is the primary function of this backflow preventer?
This Maxim 8 inch Reduced Pressure Zone Backflow Preventer Assembly is designed to prevent the reverse flow of non-potable water or fire protection substances into the potable water supply, protecting against backsiphonage and backpressure.
What materials are used for the main housing of this assembly?
The main housing and sleeve of this backflow preventer are constructed from durable 304 (Schedule 40) stainless steel, offering corrosion resistance and longevity.
What type of shutoff valves are included with this assembly?
This assembly comes with resilient seated gate valves featuring non-rising stems (NRS), which provide drip tight shutoff capabilities.
How does this backflow preventer design impact installation space and weight?
It features an extremely compact design that allows for smaller enclosures, and it is approximately 70% lighter than traditional designs, making installation easier and more flexible.
What is the benefit of the link check modules used in this assembly?
The link check modules, combined with torsion springs, provide ease of serviceability and contribute to the lowest pressure loss within the system, optimizing flow efficiency.
