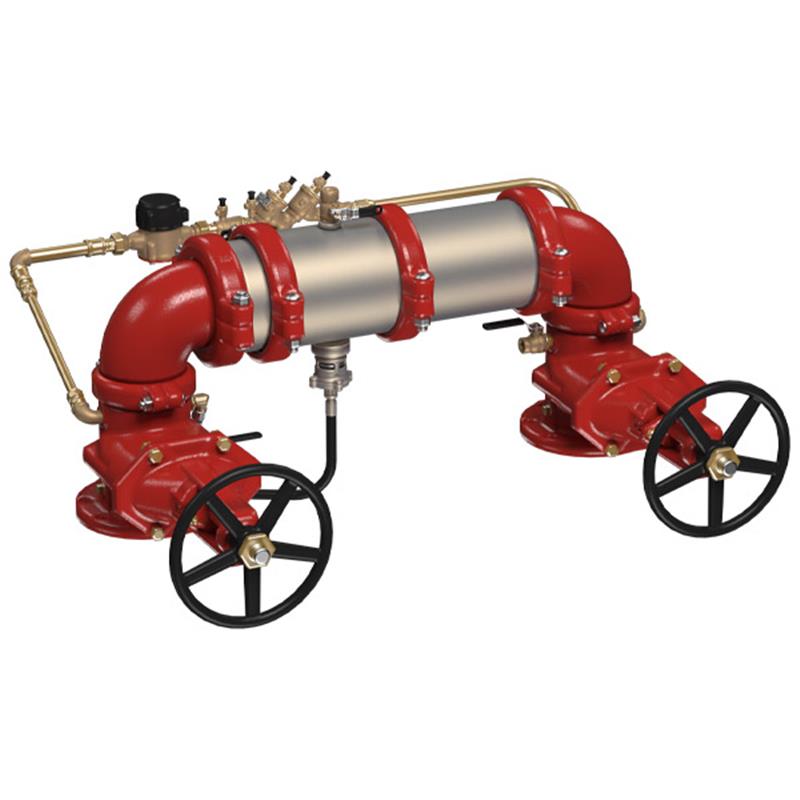

The Maxim™ 8 inch Reduced Pressure Detector Backflow Preventer Assembly is designed to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply. This assembly protects against backsiphonage and backpressure in accordance with national plumbing codes and water authority requirements, making it ideal for health-hazard cross-connections like fire sprinkler systems and service line entrances.

This compact, modular backflow preventer features a 304 stainless steel body and sleeve, OSY shutoff valves, and a gallon per minute meter for leak detection.

Features

• 8 inch nominal pipe size
• Extremely compact design, approximately 70% lighter than traditional designs
• Housing and sleeve constructed from 304 (Schedule 40) stainless steel
• Approved for horizontal N pattern installation
• Furnished with a gallon per minute meter to detect underground leaks and unauthorized water use
• Groove fittings allow for integral pipeline adjustment and easy installation
• Patented Link Check provides lowest pressure loss
• Unmatched ease of serviceability with a single access cover
• Resilient seated OSY (Outside Stem and Yoke) gate valves, UL and FM approved
• Corrosion-resistant bottom mounted pressure relief valve
• Bronze body nickel plated test cocks
• Torsion spring check modules and replaceable check disc rubber

Warning: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult state, municipal, or local water authority, building, and plumbing codes.
