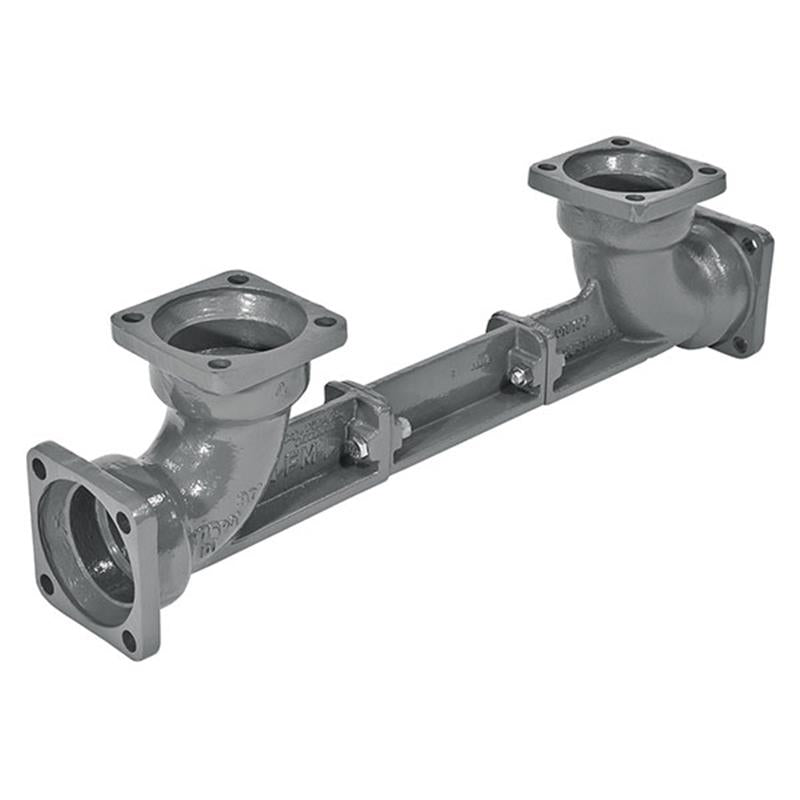

8 WVS-C Mechanical Joint x Mechanical Joint

Item Number: 0107223
1 1
$3,725.84
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 8 inch
  • Weight: 367.0 lb
  • Connection: Mechanical Joint x Mechanical Joint
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Eliminates need for thrust blocks
  • Lead Free: Less than 0.25% lead by weight

Description

The 8 inch Watts Series WVS Valve Setter with Mechanical Joint x Mechanical Joint connections is an essential component for augmenting the installation of "N" series backflow prevention assemblies. Constructed from fusion epoxy coated ductile iron, this setter provides exceptional corrosion resistance and features an integral support structure that eliminates the need for external thrust blocks. It can handle a maximum working pressure of 175 psi and operates efficiently within a temperature range of 32°F to 140°F. This durable and lead-free valve setter ensures a secure and compliant installation, adhering to standards such as ANSI B16.1 Class 125 and ANSI AWWA C153 A21.53-88.

Help Me Connect

Compatibility & Connections

  • This valve setter is specifically designed to augment the installation of Watts "N" series backflow prevention valves.
  • The Mechanical Joint connections on both ends allow for secure attachment to corresponding mechanical joint piping.
  • Mechanical joint restraint devices may be used at the pipe connections, depending on local conditions.
View full details

Additional Details

This 8 inch Watts Series WVS Valve Setter features Mechanical Joint x Mechanical Joint connections and is designed to augment the installation of "N" series backflow prevention valves. It provides stable support and eliminates the need for thrust blocks at the point of installation.

Construction & Features

  • Constructed of fusion epoxy coated ductile iron for corrosion resistance.
  • An integral ductile iron support between elbows transfers thrust downstream.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, making it a LEAD FREE product.

Connections

  • Features Mechanical Joint connections on both ends.
  • Flanges conform to ANSI B16.1 Class 125 (Standard) and ANSI AWWA C153 A21.53-88.

Specifications

  • Size: 8 inch
  • Connection Type: Mechanical Joint x Mechanical Joint
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated (internal and external) AWWA C550
  • Bolts & Nuts: Stainless steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Dimensions & Weight

  • Approximate Length (A): 55 5/8 inches (1413 mm)
  • Approximate Width (B): 40 5/8 inches (1032 mm)
  • Approximate Height (C): 7 1/2 inches (191 mm)
  • Approximate Weight: 260 lbs (118 kgs)

Certificates & Approvals

  • ANSI B16.1 Class 125 (Standard)
  • ANSI AWWA C153 A21.53-88
  • AWWA C550

FAQs

What is the primary purpose of the Watts Series WVS valve setter?

The Watts Series WVS valve setter is designed to augment and simplify the installation of Watts "N" series backflow prevention valve assemblies by providing stable support.

What type of connections does this specific 8-inch valve setter feature?

This particular valve setter features Mechanical Joint (MJ) connections on both ends, making it compatible with mechanical joint piping systems.

What material is the Watts Series WVS valve setter constructed from?

The valve setter is constructed from ductile iron (A536 GR 65-45-12) with both internal and external fusion epoxy coating (AWWA C550) for enhanced corrosion resistance.

Does this valve setter require external thrust blocks for installation?

No, the integral ductile iron support between the elbows transfers thrust downstream, which eliminates the need for traditional thrust blocks or other restraints at the point of installation.

What are the maximum pressure and temperature ratings for this valve setter?

This valve setter has a maximum working pressure of 175 psi (12.1 bar) and is rated for a temperature range of 32°F to 140°F (0°C to 60°C).
