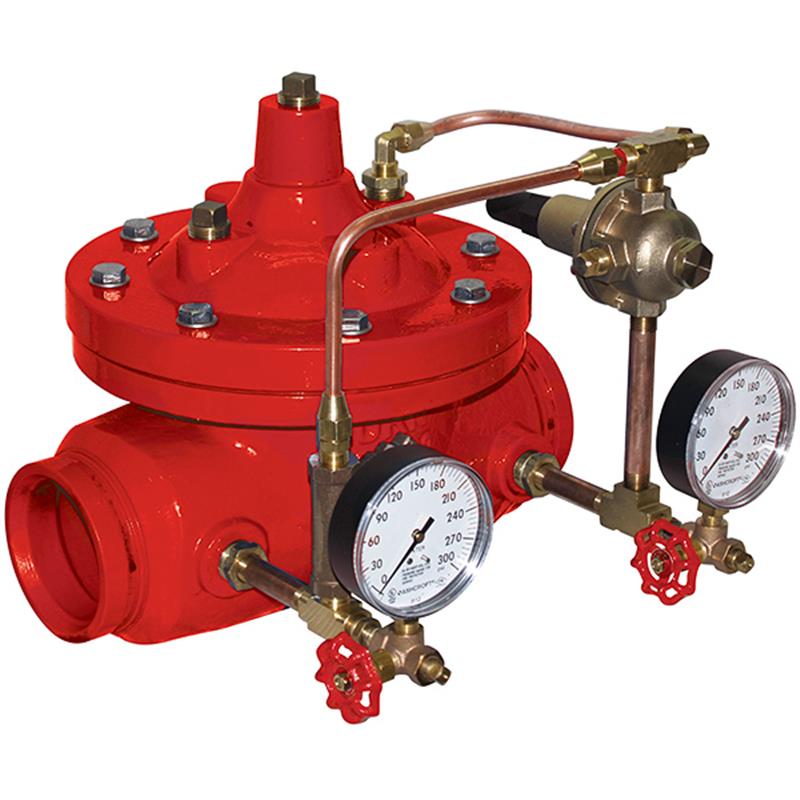

8 ZW209 PRESS REDUC FIRE VLV GLB BODY IPS GRVD SS SEAT 50-165PSI CPR TUBE

Item Number: 8-ZW209FPG
1 1
$21,538.80
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Wilkins
  • Valve Size: 8 inch
  • Body Type: Globe Body
  • End Connection: IPS Grooved
  • Pilot Spring Range: 50-165 PSI
  • Main Valve Body Material: Ductile Iron ASTM A536
  • Corrosion Protection: Internal and external epoxy coating
  • Includes isolation valves and pressure gauges
  • Certified to NSF/ANSI/CAN 61 standards

Description

The 8-inch Zurn Wilkins Model ZW209 Pilot Operated Pressure Reducing Valve is specifically designed for fire suppression systems, ensuring stable and safe downstream pressure while accommodating high flow rates. This globe-style valve features a durable ductile iron body with internal and external epoxy coating for superior corrosion resistance. Standard components include isolation valves and pressure gauges, facilitating easy maintenance and reducing total cost of ownership. Certified to ANSI/AWWA C530 and NSF/ANSI/CAN 61, it ensures reliable performance and compliance with lead-free standards. Item number 8-ZW209FPG.

Help Me Connect

This Zurn Wilkins ZW209 Pressure Reducing Valve features 8 inch IPS Grooved end connections. The grooved connections provide a secure and versatile installation for integration into your piping system, particularly within fire suppression systems. Ensure compatibility with mating grooved fittings and couplings.

View full details

Additional Details

The 8 inch Zurn Wilkins Model ZW209 Pilot Operated Pressure Reducing Valve is designed for many applications requiring the reduction of high inlet pressures to a safe and stable outlet pressure, particularly in Fire Suppression Systems where steady downstream pressure and high flow rates are essential.

The pilot assembly reacts to changes in downstream pressure, allowing the main valve to modulate between closed and open positions to ensure a constant downstream set pressure. Once the downstream pressure reaches the pilot setting, the main valve will seal shut, preventing potential downstream damage. The valve features internal and external epoxy coating for corrosion protection, and includes isolation valves and pressure gauges for simplified maintenance and repair.

Connections

  • End Connection: 8 inch IPS Grooved

Features

  • Pilot-operated design for accurate pressure regulation
  • Main valve body and bonnet constructed from Ductile Iron ASTM A536
  • All internal and external ferrous surfaces are coated with a high-quality, fusion epoxy coating
  • Includes isolation valves, pressure gauges, and a "Wye" Type Strainer as standard
  • Pilot control is field adjustable
  • Lead-free construction for potable water applications

The closing speed control (optional) on this valve should always be open at least three (3) turns off its seat.

Specifications

  • Valve Size: 8 inch
  • Body Type: Globe Body
  • End Connection: IPS Grooved
  • Body Material: Ductile Iron ASTM A536
  • Bonnet Material: Ductile Iron ASTM A536
  • Seat Material: Stainless Steel
  • Disc Material: Buna-N Rubber
  • Diaphragm Material: Nylon Reinforced Buna-N
  • Stem Material: Stainless Steel
  • Spring Material: Stainless Steel
  • Coating: Epoxy Coated, FDA Approved (internal and external)
  • Maximum Operating Pressure (Grooved): 300 PSI
  • Minimum Inlet Pressure: 10 PSI
  • Water Temperature Range: 33°F to 140°F
  • Pilot Spring Range: 50-165 PSI
  • Pilot System Tubing: Copper Tubing

Certificates & Approvals

  • ANSI/AWWA C530
  • NSF/ANSI/CAN 61 (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)

FAQs

What is the primary application of the 8-inch Zurn Wilkins ZW209 valve?

This valve is primarily used in fire suppression systems to reduce high inlet pressures to a safe and stable downstream pressure, ensuring consistent performance for fire protection.

What materials are used for the main body and seat of this pressure reducing valve?

The main valve body and bonnet are constructed from durable Ductile Iron ASTM A536, while the seat is made of Stainless Steel and the disc from Buna-N Rubber.

How does the ZW209 valve protect against corrosion?

The ZW209 features a high-quality fusion epoxy coating on all internal and external ferrous surfaces, providing excellent corrosion resistance for extended product life.

What is the specified pilot spring range for this 8-inch ZW209 model?

This specific 8-inch ZW209 model is configured with a pilot spring range of 50-165 PSI, allowing for precise adjustment of the downstream pressure setting.

What certifications does the Zurn Wilkins ZW209 hold?

The ZW209 valve meets ANSI/AWWA C530 standards and is certified to NSF/ANSI/CAN 61, ensuring compliance with health and safety requirements for potable water applications, including lead content.
