957AG-SPLASHGUARD

Item Number: 0111815
1 1
$170.62
Limited Stock (4)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Watts
  • Use with Watts 957AG air gaps
  • Weight: 0.8 lb
  • For 2 1/2 to 10 inch 957 Series RPZ assemblies
  • Manages nuisance discharge
  • Plastic construction
  • Lightweight: 0.4 lb
  • Height: 4 3/4 inches
  • Width: 2 1/2 inches
  • Approved to ANSI/ASME A112.1.2 (for associated Air Gap)

Description

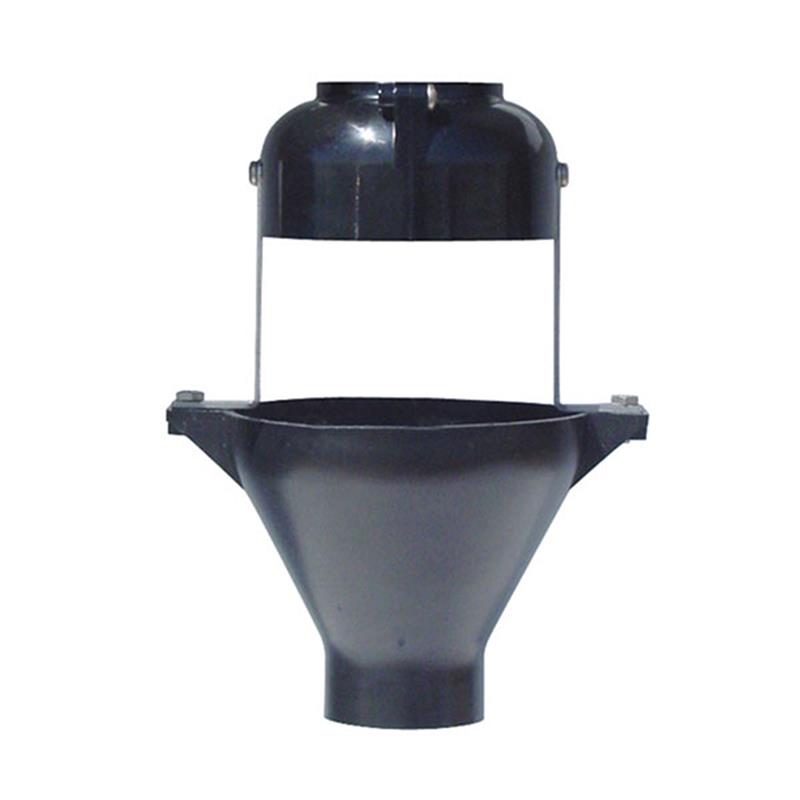

The Watts 957AG-SPLASHGUARD (0111815) is a plastic air gap splash guard designed for use with Watts 957AG air gaps. It supports 2 1/2 to 10 inch Watts 957 Series Reduced Pressure Zone (RPZ) assemblies, effectively managing nuisance discharge. This lightweight component ensures the unobstructed physical separation between the potable water supply and an open receiving vessel, maintaining system integrity and regulatory compliance. It measures 4 3/4 inches in height and weighs 0.4 lb.

Help Me Connect

This splash guard is specifically designed for use with a Watts 957AG air gap. It is compatible with 2 1/2 to 10 inch Watts 957 Series Reduced Pressure Zone (RPZ) assemblies. The splash guard assists in managing discharge from the air gap, which creates a physical separation between the potable water supply and an open receiving vessel.

View full details

Additional Details

The Watts 957AG-SPLASHGUARD (0111815) is a plastic air gap splash guard designed to work with Watts 957AG air gaps for 2 1/2 to 10 inch Watts 957 Series Reduced Pressure Zone (RPZ) assemblies.

This splash guard helps manage nuisance discharge, ensuring the proper function of the air gap which provides an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel.

Features

  • Designed for use with Watts 957AG air gaps
  • Compatible with 2 1/2 to 10 inch Watts 957 Series Reduced Pressure Zone assemblies
  • Helps manage nuisance discharge
  • Constructed from lightweight plastic

Specifications

  • Series Compatibility: Watts 957AG Air Gap, 957 Series RPZ Assemblies
  • Nominal Pipe Size Range: 2 1/2 to 10 inches
  • Construction Material: Plastic
  • Height (Dimension A): 4 3/4 inches (119 mm)
  • Width (Dimension B): 2 1/2 inches (62 mm)
  • Product Weight: 0.4 lb (0.18 kg)

Certificates & Approvals

  • ANSI/ASME A112.1.2 (for associated Air Gap)

FAQs

What is the primary function of the Watts 957AG-SPLASHGUARD?

The primary function of this splash guard is to manage nuisance discharge from the air gap, ensuring proper operation of the associated Watts 957AG air gap and the Reduced Pressure Zone assembly.

Which Watts series of air gaps and assemblies is this splash guard compatible with?

This splash guard is compatible with Watts 957AG air gaps and is designed for 2 1/2 to 10 inch Watts 957 Series Reduced Pressure Zone (RPZ) assemblies.

What material is the 957AG-SPLASHGUARD made from?

The Watts 957AG-SPLASHGUARD is constructed from durable, lightweight plastic.

What are the key dimensions and weight of this splash guard?

The splash guard has a height (Dimension A) of 4 3/4 inches (119 mm), a width (Dimension B) of 2 1/2 inches (62 mm), and weighs 0.4 lb (0.18 kg).

Is this splash guard an essential component for the air gap system?

While the air gap itself provides the critical physical separation, the splash guard is recommended to effectively manage nuisance discharge, which can help maintain a clean and safe operating environment around the backflow assembly.
