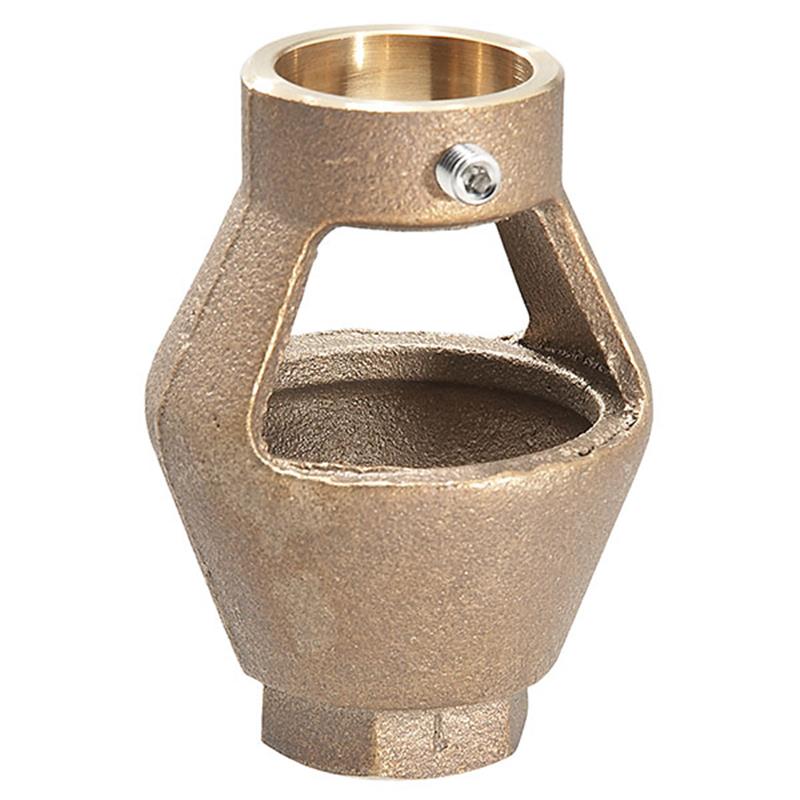

Ames 1/2 - 3/4" 4000B-AG Air Gap Drain Fitting

Item Number: 7014267
1 1
$105.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Designed for 1/2", 3/4" Ames 4000B/LF4000B RPZ
  • Weight: 19.2 lb
  • Collects relief valve discharge
  • Funnels minor discharges into drains
  • Nozzle design reduces side spray
  • Conforms to air gap installation requirements
  • Factory replacement part
  • Approved to ANSI/ASME A112.1.2
  • Weight: 0.63 lb

Description

The Ames 1/2" - 3/4" 4000B-AG Air Gap Drain Fitting (7014267) is a factory replacement part designed to collect and redirect water discharged from the relief valve of Ames 4000B and LF4000B Series Reduced Pressure Zone (RPZ) backflow assemblies. It funnels minor discharges into drains, preventing side spray with its specialized nozzle design. This fitting ensures compliant air gap installation and is approved to ANSI/ASME A112.1.2 standards for reliable performance in fire-safety applications.

Help Me Connect

This air gap drain fitting is specifically designed for use with 1/2 inch and 3/4 inch Ames 4000B Series Reduced Pressure Zone (RPZ) backflow assemblies. It attaches to the relief port of the backflow device and should be piped to a suitable drain to safely redirect any water discharge.

View full details

Additional Details

This Ames air gap drain fitting is designed to collect water discharged by the relief valve of a Reduced Pressure Zone (RPZ) backflow assembly. It funnels minor relief valve discharges into drains due to minor check valve fouling or line pressure fluctuations, ensuring safe and compliant water redirection.

Key Features

  • Collects Discharge: Effectively gathers water discharged by the relief valve from an RPZ backflow preventer.
  • Reduces Side Spray: Features a nozzle design that directs flow directly into the funnel, minimizing side spray.
  • Compliant Installation: Conforms to air gap installation requirements for backflow assemblies.
  • Factory Replacement: An authentic replacement part for specific Ames backflow preventer series.

Specifications

  • Series Compatibility: Ames 4000B and LF4000B
  • Size Compatibility: 1/2 inch, 3/4 inch
  • Weight: 0.63 lb (0.28 kg)

Dimensions

  • Overall Height (A): 2 3/8 inches (60 mm)
  • Width (B): 3 1/8 inches (79 mm)
  • Outlet Diameter (C): 1/2 inch (13 mm)

Certificates & Approvals

  • Approval Standard: ANSI/ASME A112.1.2

FAQs

What is the primary purpose of this air gap drain fitting?

It is designed to collect water discharged by the relief valve of a Reduced Pressure Zone (RPZ) backflow assembly and direct it safely into a drain, managing minor check valve fouling or line pressure fluctuations.

What backflow preventer series is this air gap compatible with?

This air gap drain fitting is specifically compatible with 1/2" and 3/4" Ames 4000B and LF4000B Series Reduced Pressure Zone (RPZ) backflow assemblies.

Does this product help prevent water spray?

Yes, its specialized nozzle design directs the flow directly into the funnel, which effectively helps to reduce side spray during discharge events.

What certifications or approvals does this air gap drain fitting have?

This air gap drain fitting conforms to the ANSI/ASME A112.1.2 approval standard, ensuring compliance with relevant plumbing codes.

Is this a replacement part?

Yes, this is an authentic factory replacement part, suitable for maintaining the original specifications and performance of your Ames 4000B/LF4000B Series backflow preventer.
