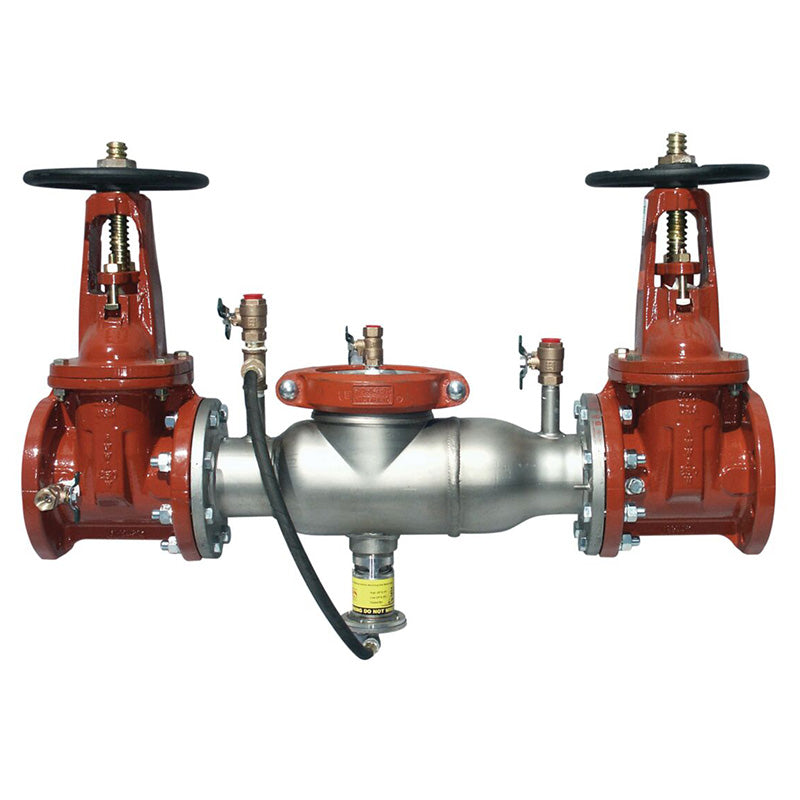

Ames 12" 4000SS Reduced Pressure Zone Backflow Preventer Assembly, Domestic OSY Shutoffs, Special, Cam-Check Valves, No Approvals, Backflow Flood Sensor

Item Number: DDPF0691848
Regular price $57,704.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames

  • Inlet Connection Size: 12"
  • Weight: 1450.0 lb
  • Outlet Connection Size: 12"
  • Flood sensor with SentryPlus Alert technology to detect water discharges from the relief valve
  • Stainless steel body is half the weight of competitive designs reducing installation and shipping costs
  • Domestic outside stem and yoke gate valves
  • Cam-check assembly provides maximum flow at low pressure drop
  • Top mounted test cocks
  • Compact construction for smaller enclosures
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs
  • Stainless steel construction provides long term corrosion resistance and maximum strength
View full details

Collapsible content

Additional Details

This 12" stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure. It is ideal for protection at cross-connections identified as health hazard applications and from other contaminants found at the service line entrance. This compact and short lay length design with a single access cover consists of a lightweight stainless steel body, domestic outside stem and yoke resilient seated gate valves, spring loaded cam-check valves, pressure differential relief valve and test cocks. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.
