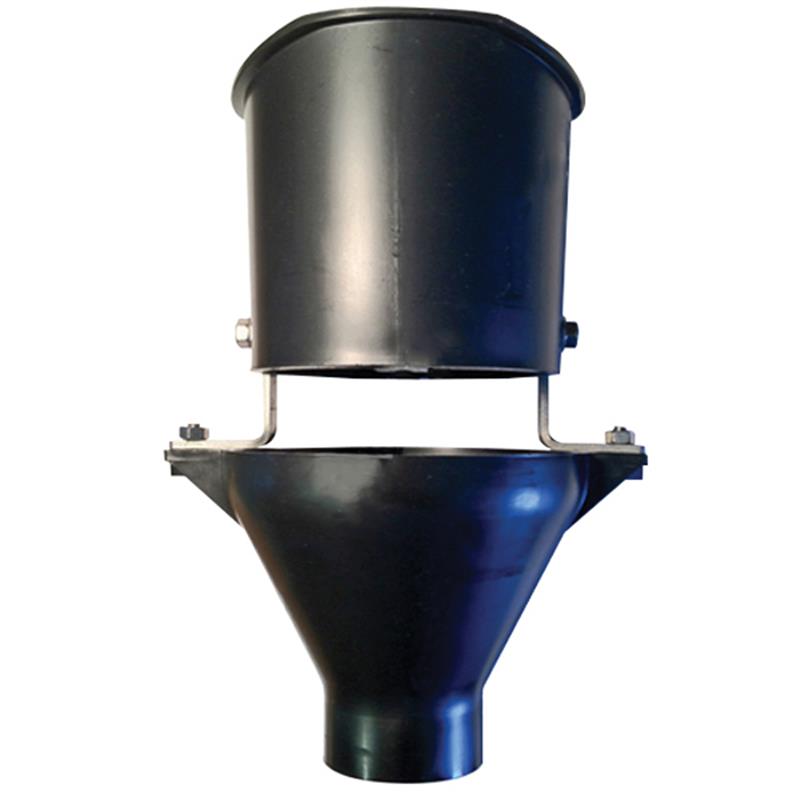

Ames 2 1/2 - 10" 4000/5000SS-AG Air Gap Drain Fitting

Item Number: 0691842
1 1
$330.38
Limited Stock (8)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Ames
  • Product Type: Air Gap Drain Fitting
  • Weight: 1.7 lb
  • Material: Plastic
  • Compatible with Ames 4000SS & 5000SS backflow series
  • Fits 2 1/2 inch to 10 inch backflow preventers
  • Collects relief valve discharge
  • Conforms to air gap installation requirements
  • Factory replacement part
  • Approved to ANSI/ASME A112.1.2

Description

The Ames 2 1/2 - 10" 4000/5000SS-AG Air Gap Drain Fitting is a plastic factory replacement part designed for Ames Reduced Pressure Zone backflow preventers. This fitting collects water discharged by the relief valve, channeling it into a drain to prevent pooling from minor check valve fouling or pressure fluctuations. It is compatible with 2 1/2 to 10 inch Ames 4000SS and 5000SS series backflow assemblies and conforms to air gap installation requirements. This component is essential for maintaining proper backflow device function and preventing water damage.

Help Me Connect

Installation & Compatibility

This air gap drain fitting is specifically designed as a direct replacement part for Ames 2 1/2 to 10 inch Reduced Pressure Zone (RPZ) backflow preventers from the 4000SS and 5000SS series. It attaches directly to the relief port of the backflow device and is then piped to a drain to direct any discharge to a safe location, ensuring proper air gap requirements are met.

View full details

Additional Details

The Ames Air Gap Drain Fitting is designed to collect water discharged by the relief valve of a backflow preventer, directing it safely into a drain. This prevents water from pooling due to minor check valve fouling or line pressure fluctuations.

Features

  • Collects water discharged by a relief valve
  • Funnels minor relief valve discharges into drains
  • Conforms to air gap installation requirements
  • Factory replacement part

Compatibility

  • Designed for use with Ames 2 1/2 to 10 inch Reduced Pressure Zone Assembly Series 4000SS and 5000SS backflow preventers.

Specifications

  • Product Type: Air Gap Drain Fitting
  • Material: Plastic
  • Compatible Backflow Series: Ames 4000SS, Ames 5000SS
  • Compatible Backflow Sizes: 2 1/2 inch to 10 inch

Certificates & Approvals

  • ANSI/ASME A112.1.2
  • CSA B64.4

FAQs

What is the primary purpose of the Ames 2 1/2 - 10" 4000/5000SS-AG Air Gap Drain Fitting?

Its primary purpose is to collect water discharged by the relief valve of a backflow preventer and safely direct it into a drain, preventing spills due to minor malfunctions or pressure changes.

Which backflow preventer series is this air gap drain compatible with?

This air gap drain fitting is compatible with Ames Reduced Pressure Zone (RPZ) backflow preventers from the 4000SS and 5000SS series.

What size backflow preventers can this air gap drain be used with?

It is designed to fit Ames backflow preventers ranging from 2 1/2 inches to 10 inches in size.

What material is the air gap drain made from?

The air gap drain fitting is constructed from durable plastic.

Does this air gap meet standard installation requirements?

Yes, this air gap drain fitting conforms to standard air gap installation requirements, ensuring proper function for your backflow system.
