Ames 2 1/2" Colt 200 OS&Y Gate Valves

Item Number: DDP0191198
1 1
$4,766.90
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Valves: OS&Y (Outside Stem & Yoke) Flanged Inlet X Flanged Outlet
  • Lay Length: 30.5" (775mm)
  • Weight: 125 lbs (57 kgs)
  • Temperature Range: 33F-140F (0.5C-60C) continuous
  • Maximum Working Pressure: 175psi (12.1 bar)
    • Weight: 205.0 lb
    • View full details

    Additional Details

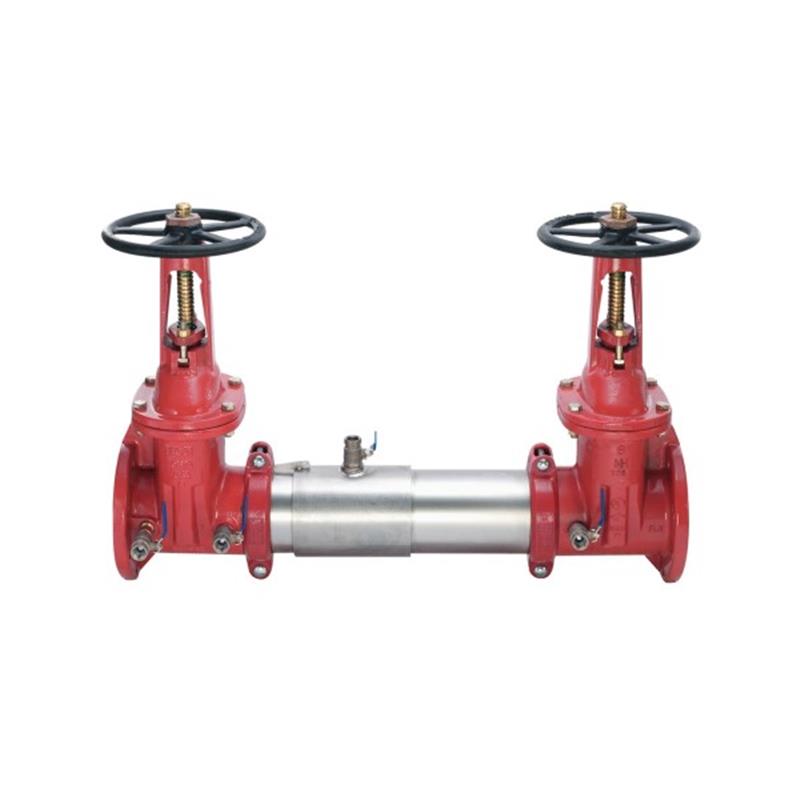

    2 1/2" Ames Colt 200 Series Double Check Valve Assembly. Constructed of stainless steel, the device features OS&Y (Outside Stem & Yoke) Gate Valves with flanged ends. To access the check assemblies there is a stainless steel sleeve that will slide open. You must unthread the #3 test cock then slide the cover. The Colt 200 uses two self contained cam checks that use a tri-link check mechanism. Numerous repair parts are available for the Colt series devices, including rubber parts and complete parts. There are no special tools required for service.
    This is a non-stock, special order item and could take up to 2 weeks or more to deliver. All non-stock items are non-refundable, Please be sure you order carefully. If you have ANY questions please contact us before ordering.
