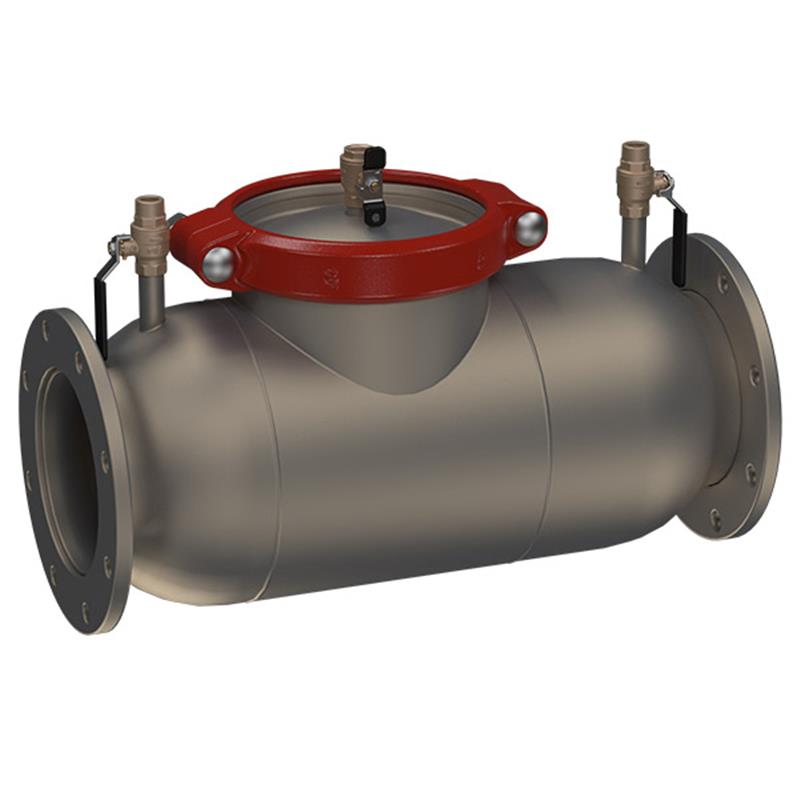

Ames 6" 2000SS Less Gates

Item Number: 0690499
1 1
$7,680.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 92.0 lb
  • Assembly Type: Double Check Valve, Less Gates
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Lay Length: 27.5 inches
  • Weight (Without Gates): 105 lbs
  • Lead Content: Less than 0.25% by weight

Description

The Ames 6 inch 2000SS Series Double Check Valve Assembly, Less Gates, prevents the reverse flow of polluted water into potable water systems. Designed for non-health hazard applications, this assembly features a durable, lightweight, lead-free 300 Series stainless steel body, offering excellent corrosion protection and reduced installation costs. Its compact design and 27.5-inch short lay length are ideal for retrofit projects and installations in confined spaces. The unit includes Cam-Check Assemblies for low head loss and a single top access cover, allowing for easy maintenance without special tools. It is approved for both horizontal and vertical "flow up" installations. Maximum working pressure is 175 psi, with a temperature range of 33°F to 110°F.

Help Me Connect

Connections

  • This 6 inch double check valve assembly features flanged ends for connection to corresponding flanged piping systems.
  • Flange dimensions are in accordance with AWWA Class D standards, ensuring compatibility with standard piping.
View full details

Additional Details

The Ames 6 inch 2000SS Series Double Check Valve Assembly is designed to prevent the reverse flow of polluted water from entering the potable water system. This assembly is ideal for cross-connections identified as non-health hazard applications and can be installed in horizontal or vertical "flow up" positions.

This device is supplied less gates and features a lead-free stainless steel body for corrosion resistance and reduced weight, making it suitable for retrofit installations with its short lay length and compact design.

Features

  • Cam-Check Assembly provides low head loss for efficient operation
  • Short lay length (27.5 inches) is ideal for retrofit installations and tight spaces
  • Lightweight stainless steel body (105 lbs) provides superior corrosion protection and reduces installation costs
  • Single top access cover with two-bolt grooved style coupling ensures ease of maintenance and requires no special tools for servicing
  • Compact construction allows for installation in smaller vaults and enclosures
  • Approved for horizontal or vertical "flow up" installation (ASSE Only)
  • Wetted surface contacted by consumable water contains less than 0.25% of lead by weight

This is a non-stock, special order item and could take up to 2 weeks or more to deliver. All non-stock items are non-refundable, Please be sure you order carefully. If you have ANY questions please contact us before ordering.

Specifications

  • Size: 6 inch
  • Assembly Type: Double Check Valve Assembly, Less Gates
  • Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Lay Length: 27.5 inches (699 mm)
  • Weight (Without Gates): 105 lbs (48 kg)
  • Maximum Working Pressure: 175 psi (12.06 bar)
  • Temperature Range: 33°F - 110°F (5°C - 43°C)
  • Lead Content: Less than 0.25% by weight (wetted surface)
  • Flange Dimension Standard: AWWA Class D
  • Installation Position: Horizontal or Vertical "Flow Up" (ASSE Only)

Certificates & Approvals

  • AWWA C510-92
  • CSA B64.5
  • ASSE 1015
  • cULus
  • FM Approved (OSY ONLY)

FAQs

What is the primary function of the Ames 2000SS Double Check Valve Assembly?

This backflow preventer is designed to prevent the reverse flow of polluted water from entering a potable water supply system, primarily in non-health hazard applications where approved by local authorities.

What does 'Less Gates' signify for this model?

The 'Less Gates' designation means this assembly is supplied without the traditional shutoff or isolation gate valves. It includes the double check valve mechanism and test cocks, designed for integration into existing systems or where separate shutoff valves are not required.

What are the advantages of the stainless steel construction?

The 300 Series stainless steel body provides long-term corrosion protection and maximum strength. Its lightweight design also reduces overall installation and shipping costs compared to heavier alternatives.

Can this backflow preventer be installed in various orientations?

Yes, this model is approved for installation in both horizontal and vertical 'flow up' positions, offering flexibility for different site requirements, particularly in retrofit scenarios (ASSE Only).

How easy is it to maintain the Ames 2000SS assembly?

Maintenance is simplified with a single top access cover featuring a two-bolt grooved style coupling. This design allows for easy access and servicing of the internal components without the need for special tools.
