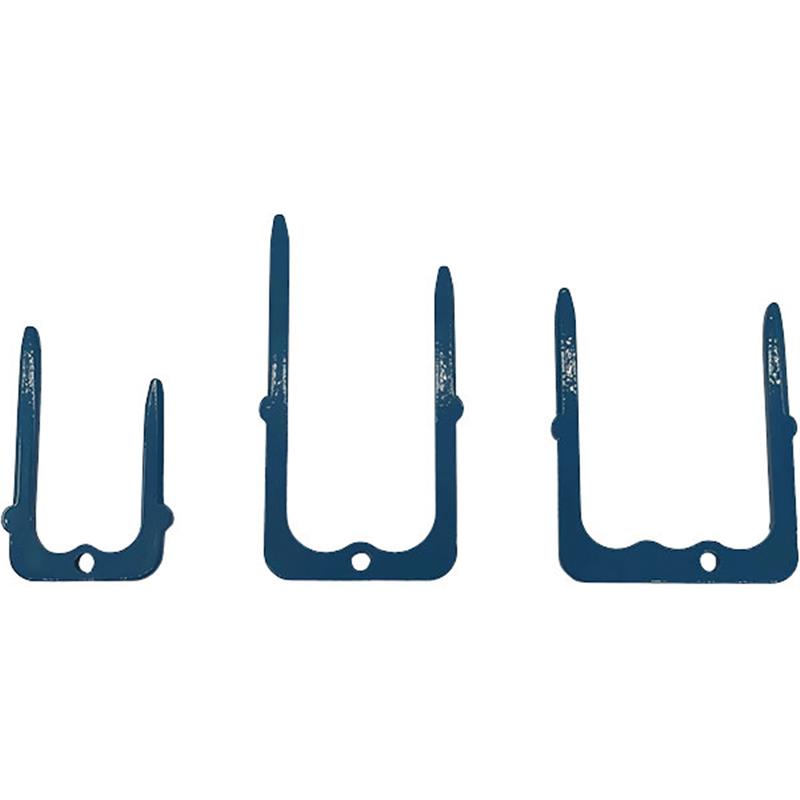

Ames Clapper Retainer Set (3)

Item Number: ARC3
Skip to product information
1 of 1
Regular price $99.99
Limited Stock (3)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Arbiter

  • Product Type: Clapper Retainer Clip Set
  • Quantity: Set of 3 clips
  • Compatible with Ames 2000, 3000, & 4000 backflow assemblies
  • Supports 4 inch, 6 inch, and 8-10 inch assembly sizes
  • Aids in second check clapper removal
  • Keeps clapper assembly compact during removal
  • Alternative to Ames Part Numbers 7013911, 7013912, 7013913

Description

The Ames Clapper Retainer Set (3) is an essential tool for technicians servicing Ames 2000, 3000, and 4000 backflow prevention assemblies. This set of three clips is specifically designed to aid in the safe and compact removal of the second check clapper for sizes 4, 6, and 8-10 inches. By holding the clapper assembly together after being loosened, these clips streamline the servicing process, making it easier to extract the clapper and perform maintenance outside the assembly. It offers a reliable alternative to original Ames part numbers for these specific tasks.

Help Me Connect

How to Use the Ames Clapper Retainer Set

  • To use, select the appropriate size retainer clip (small, medium, or large) corresponding to your assembly's second check clapper.
  • Push the clip completely into the second check clapper.
  • Once inserted, loosen and remove the exterior mounting bolts of the second clapper from the assembly.
  • The clip will securely keep the clapper assembly from unfolding after the bolts are loosened, allowing it to be removed in a compact configuration.
  • Remove the entire clapper assembly with the clip still inserted from the backflow unit.
  • To safely remove the retainer clip, secure the clapper assembly to the outside of the body using the mounting bolts, then push on the clapper while carefully removing the retaining clip. This allows for easier and safer servicing of the clapper outside the assembly.
View full details

Collapsible content

Additional Details

The Ames Clapper Retainer Set (3) is a specialized tool designed to assist in the removal and servicing of the second check clapper in specific Ames backflow prevention assemblies.

These clips prevent the clapper assembly from unfolding after being loosened, allowing for easier and safer removal through the assembly opening.

Purpose

  • Aids in the efficient removal of the second check clapper from backflow prevention assemblies.
  • Keeps the clapper assembly intact in its compact configuration after bolts are loosened.
  • Facilitates easier servicing of the clapper outside of the assembly body.

Compatibility

  • For use with Ames 2000, Ames 3000, and Ames 4000 backflow prevention assemblies.
  • Compatible with assembly sizes 4 inch, 6 inch, and 8-10 inch.

Specifications

  • Product Type: Clapper Retainer Clip Set
  • Quantity: 3 clips per set
  • Brand: Ames (Alternative Part)

Compatibility

  • Compatible Assemblies: Ames 2000, Ames 3000, Ames 4000
  • Compatible Assembly Sizes: 4 inch, 6 inch, 8-10 inch
  • Replaces Ames Part Numbers: 7013911 (4"), 7013912 (6"), 7013913 (8-10")

FAQs

What is the primary function of the Ames Clapper Retainer Set?

This set of three clips is designed to assist in the removal of the second check clapper from Ames backflow prevention assemblies. It keeps the clapper assembly from unfolding once loosened, allowing for easier extraction.

Which Ames backflow models are compatible with this retainer clip set?

The Ames Clapper Retainer Set is compatible with Ames 2000, Ames 3000, and Ames 4000 series backflow prevention assemblies.

What sizes of backflow assemblies does this set work with?

This set includes three clips to accommodate Ames backflow assembly sizes 4 inch, 6 inch, and 8-10 inch.

How many retainer clips are included in the ARC3 set?

The ARC3 set includes three clapper retainer clips, one for each compatible size: 4 inch, 6 inch, and 8-10 inch.

Does this set replace original Ames part numbers?

Yes, this set serves as an alternative to Ames Part Numbers 7013911 (for 4" assemblies), 7013912 (for 6" assemblies), and 7013913 (for 8-10" assemblies).
