BF-BMS-MCK LF007-IOT

Item Number: 88003067
1 1
$7,344.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts

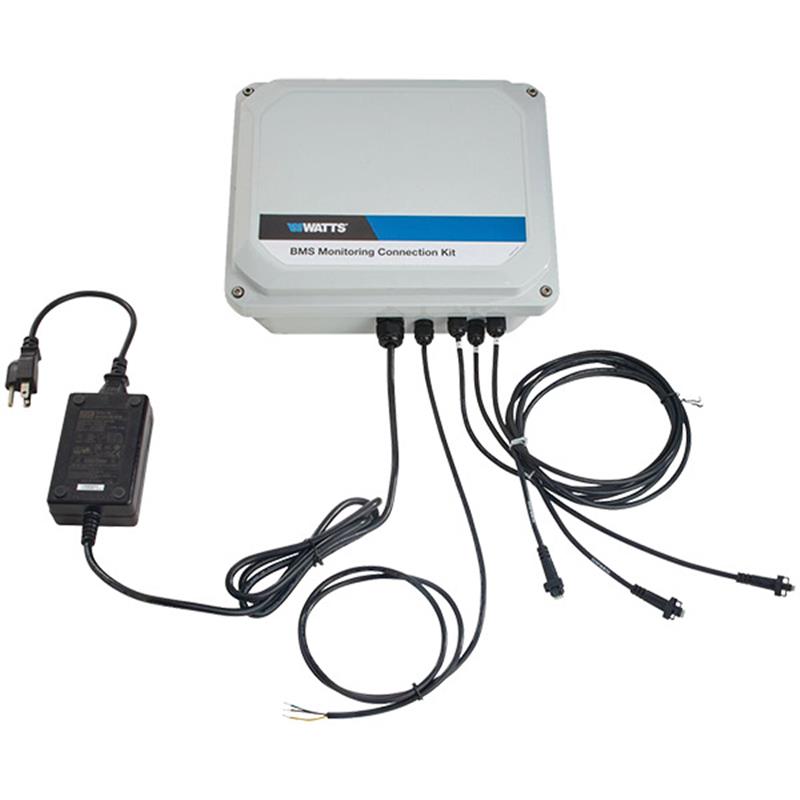

  • Kit includes interface module, 3 sensor cables, data cable, and power adapter.
  • Communicates with BMS using Modbus RTU protocol.
  • Provides real-time water pressure data for monitoring.
  • Plug-and-play connection for easy setup.
  • IP66 rated enclosure ensures durability.
  • Monitors valve assembly performance between annual code testing.
  • Sensor Pressure Measuring Range: 0-175 psig.
  • Sensor Temperature Measuring Range: 0-120 °C (32-248 °F).

Description

The Watts BMS Monitoring Connection Kit (SKU 88003067) is a comprehensive solution for transmitting real-time valve assembly pressure measurements to a building management system. This turnkey kit includes an interface module, three sensor cables, a data cable, and a power adapter. It utilizes Modbus RTU protocol for communication and features a durable IP66 rated enclosure, making it ideal for continuous performance monitoring between annual code testing. The system enables quick, plug-and-play installation, providing crucial data for effective facility management.

Help Me Connect

Connection and Compatibility

  • The kit offers plug-and-play connection to both the valve assembly for sensor data collection and to a Building Management System (BMS) for data transmission.
  • Communication with the BMS is established using the Modbus RTU protocol.
  • The system is designed to acquire measurements from pressure and temperature sensors compatible with aqueous media.
  • The three included sensor cables provide the necessary connections between the interface module and compatible pressure sensors.
View full details

Additional Details

The WATTS BMS Monitoring Connection Kit is a turnkey solution designed for transmitting valve assembly pressure measurements to a building management system (BMS). This kit provides real-time data for effective monitoring of critical systems.

Features

  • Communicates with BMS using Modbus RTU protocol, ensuring seamless integration.
  • Provides a reliable solution for monitoring assembly performance between annual code testing.
  • Delivers real-time water pressure data for any building or service location.
  • Features plug-and-play connection to valve assembly and BMS for quick and straightforward setup.
  • Equipped with an IP66 rated enclosure, offering robust protection against dust and water jets.

Kit Contents

  • Interface module
  • Three sensor cables
  • Data cable
  • Power adapter

Integrated Sensor Capabilities

The kit enables the monitoring of advanced pressure sensor capabilities:

  • Combines pressure and temperature measurement in a single sensor for efficient installation.
  • Utilizes MEMS technology for precise and reliable readings.
  • Allows direct contact with aqueous media for a fast response time.
  • Boasts a compact and robust design, suitable for demanding environments.
  • Fully compatible with a wide range of aqueous media.

Specifications

  • Brand: WATTS
  • SKU: 88003067

Kit Details

  • Enclosure Rating: IP66
  • Communication Protocol: Modbus RTU
  • Maximum Cable Length (Sensor to Kit): 3 m (9.10 ft)

Sensor Specifications (for connected sensors)

  • Sensing Element: Silicon-based MEMS
  • Pressure Measuring Range: 0-175 psig
  • Temperature Measuring Range: 0-120 °C (32-248 °F)
  • Liquid Compatibility: Aqueous media compatible with wetted materials
  • Maximum System Pressure: 24 bar (348 psi)
  • Burst Pressure: 30 bar (435 psi)
  • Wetted Materials: Corrosion-resistant coating, PPS, EPDM or FKM Adapter ISO 7/1 - R1/2" and NPT 1/2", EN 1.4408 (AISI 316)
  • Sealing: EPDM O-rings, FKM O-rings or EPDM sealing cap with FKM O-rings
  • Housing (Sensor): Composite, PPS
  • Power Supply (for sensor): 5 VDC (±5%), PELV (Ratiometric)
  • Output Signals (from sensor): Analog 0.5-3.5 V for pressure; Analog 0.5-4.1 V for temperature

Certificates & Approvals

  • CSA Certified (C US)

FAQs

What is the primary purpose of the WATTS BMS Monitoring Connection Kit?

The primary purpose is to provide a turnkey solution for transmitting real-time valve assembly pressure measurements to a building management system (BMS).

What components are included in this kit?

Each kit includes an interface module, three sensor cables, a data cable, and a power adapter.

How does the kit communicate with a building management system?

The kit communicates with a building management system (BMS) by using the Modbus RTU protocol.

What kind of data can this kit provide?

The kit is designed to provide real-time water pressure data for a building or service location. The connected sensors also support temperature measurement.

What is the environmental rating of the kit's enclosure?

The kit features an IP66 rated enclosure, offering robust protection against dust and powerful water jets.
