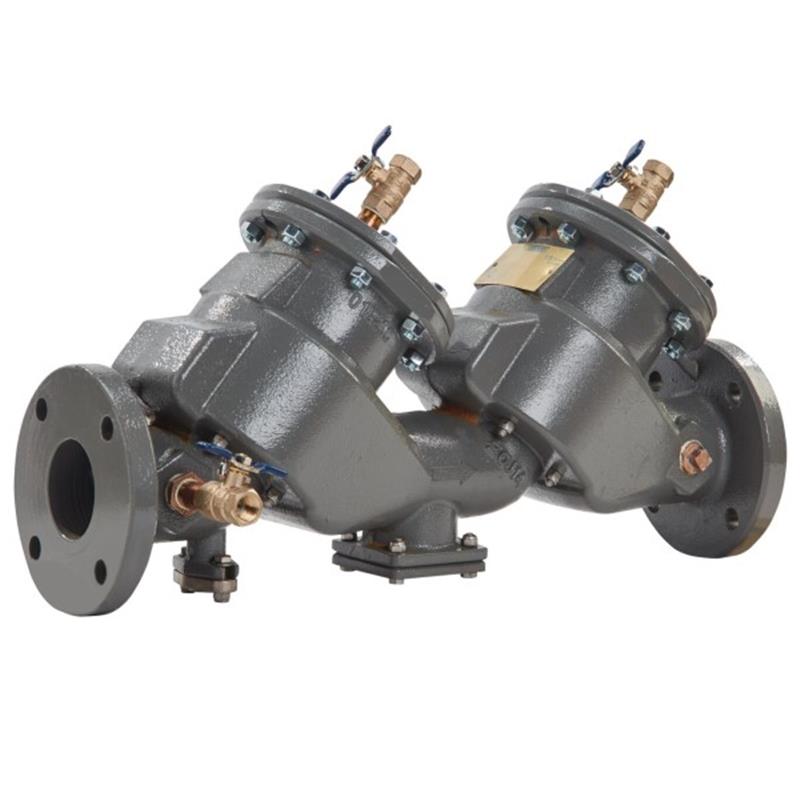

Febco 10" LF850 Less Gates

Item Number: 0124526
1 1
$22,403.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Valve Type: Double Check Valve Assembly (Less Shutoff Valves)
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Powder Coating (MIC & corrosion protection)
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Lay Length: 46 3/8 inches
  • Lead Free Construction

Description

The Febco 10 inch LF850 MasterSeries Lead Free Double Check Valve Assembly is an in-line backflow preventer designed for non-health hazard applications. It safeguards potable water supplies from pollution caused by backpressure or backsiphonage. Featuring a durable ductile iron body and ArmorTek® advanced epoxy coating for superior corrosion and MIC resistance, this assembly ensures longevity. It includes two independent check valves, replaceable stainless steel seats, and can be serviced without special tools. This model is supplied without shutoff valves (less gates) and is suitable for both horizontal and vertical up-flow installations, meeting ASSE 1015, UL, FM, and AWWA C510 standards. Item number 0124526.

Help Me Connect

Connection Information

  • This 10 inch LF850 Double Check Valve Assembly is designed with flanged end connections, compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards.
  • It is suitable for horizontal and vertical up-flow installations.
  • This assembly is supplied less shutoff valves (less gates), intended for integration into systems where shutoff valves are already present or will be provided separately.
  • It provides backflow prevention for non-health hazard (pollutant) applications to protect potable water systems from backsiphonage and backpressure.
View full details

Additional Details

The Febco 10 inch LF850 MasterSeries Lead Free Double Check Valve Assembly is designed for non-health hazard applications, protecting potable water systems from backsiphonage and backpressure of pollutants that are objectionable but not toxic. This assembly is sold without shutoff valves (less gates) for integration into existing systems.

The assembly features a durable ductile iron body with flanged end connections, and two in-line independent check valves, making it ideal for containment at the service line entrance or other non-health hazard cross-connections.

Advanced Coating Technology

  • Internal and external surfaces are coated with ArmorTek®, a patented three-part advanced epoxy system.
  • This coating is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates from corrosion.

Design and Serviceability

  • In-line serviceable assembly requiring no special tools for servicing.
  • Features a captured modular spring assembly, reversible and replaceable discs, and field replaceable seats.
  • Stainless steel check components with a clapper check assembly and captured O-ring design.
  • Includes a winterization feature with disc retainers and valve body drain ports.

Please note: This is a non-stock, special order item and could take up to 2 weeks or more to deliver. All non-stock items are non-refundable. Please be sure you order carefully. If you have any questions, contact us before ordering.

Specifications

  • Size: 10 inch
  • Valve Type: Double Check Valve Assembly
  • Valves Included: Less Shutoff Valves (Less Gates)
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (internal and external surfaces)
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606 (for 10 inch)

Pressure & Temperature Ratings

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) Continuous

Dimensions & Weight

  • Lay Length (B): 46 3/8 inches (1178 mm)
  • Width (A): 72 5/8 inches (1845 mm)
  • Height (C): 15 5/8 inches (397 mm)
  • Weight: 595 lbs

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • CSA B64.5 Listed
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • NSF Certified to NSF/ANSI 61-G

FAQs

What type of applications is the Febco 10" LF850 Double Check Valve Assembly suitable for?

This assembly is specifically designed for non-health hazard (pollutant) applications to prevent the backflow of objectionable but non-toxic pollutants into the potable water supply.

Does this backflow preventer come with shutoff valves?

No, this specific model is supplied "less gates," meaning it does not include shutoff valves. It is intended for systems where shutoff valves are already present or will be provided separately.

What is the maximum operating pressure and temperature range for this assembly?

The maximum working pressure for the 10" LF850 is 175 psi (12.1 bar), and it can operate continuously in a temperature range of 33°F to 140°F (0.5°C to 60°C).

What type of coating is used on the valve body, and what are its benefits?

The ductile iron valve body is coated with ArmorTek®, a patented three-part advanced epoxy system. This coating is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates from general corrosion.

Are special tools required to service the Febco LF850 Double Check Valve Assembly?

No, the LF850 MasterSeries is designed to be in-line serviceable without requiring any special tools, making maintenance straightforward.
