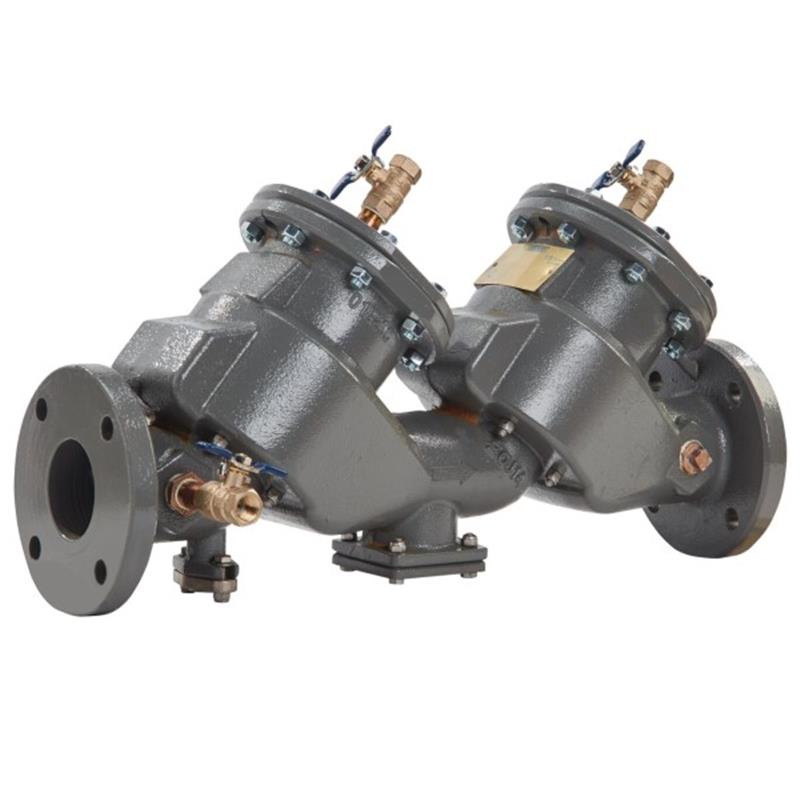

Febco 2 1/2" LF850 Less Gates

Item Number: 0124520
1 1
$4,464.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Lead Free Double Check Valve Assembly
  • Size: 2 1/2 inches
  • Valve Configuration: Less Shutoff Valves
  • Body Material: Ductile Iron
  • Coating: ArmorTek® Epoxy Coating for MIC and corrosion protection
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • In-line serviceable with no special tools required
  • Approved for non-health hazard applications

Description

The Febco 2 1/2 inch MasterSeries LF850 is a Lead Free double check valve backflow preventer designed for non-health hazard applications. It prevents the backflow of pollutants into potable water systems due to backsiphonage or backpressure. Featuring a durable ductile iron body with ArmorTek® epoxy coating for superior corrosion resistance, this assembly offers in-line serviceability without special tools. It includes two independent check modules, replaceable stainless steel seats, and flanged connections. Approved by ASSE 1015, UL Classified, and FM Approved, it ensures reliable performance for vital water system protection.

Help Me Connect

Connections & Applications

  • This 2 1/2 inch backflow preventer is designed for non-health hazard (pollutant) applications to prevent backflow into potable water systems.
  • It features flanged end connections compliant to ASME B16.1 Class 125 and AWWA Class D Flange for installation into main water lines.
  • The assembly is suitable for both horizontal and vertical-up flow orientations.
  • Always consult with local water authorities for specific installation and application requirements for non-health hazard cross-connections.
View full details

Additional Details

The Febco 2 1/2 inch MasterSeries LF850 Double Check Valve Assembly is an in-line backflow preventer designed to protect potable water supplies from backpressure and backsiphonage in non-health hazard (pollutant) applications. This assembly is ideal for containing objectionable, but non-toxic, pollutants at the service line entrance without shutoff valves.

The LF850 features Lead Free construction, meeting low lead installation requirements with less than 0.25% lead by weight. Its iron components are coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal surfaces, ensuring long-lasting performance.

This is a non-stock, special order item and could take up to 2 weeks or more to deliver. All non-stock items are non-refundable. Please be sure to order carefully, and contact us if you have any questions before ordering.

Features

  • In-line serviceable assembly requires no special tools for servicing.
  • Features two independently acting clapper-style check modules with replaceable seats and disc rubbers.
  • Ductile iron valve body design with stainless steel internal components.
  • Includes winterization feature with disc retainers and valve body drain ports.
  • Approved for horizontal and vertical-up flow orientations.

Specifications

  • Product Type: Double Check Valve Assembly
  • Valve Size: 2 1/2 inches
  • Valve Configuration: Less Shutoff Valves (Less Gates)
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (internal and external surfaces)
  • Check Seats: Stainless Steel
  • Disc Holder: Stainless Steel
  • Elastomer Disc: Silicone
  • Spring Material: Stainless Steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Lay Length (Dimension B): 25 1/2 inches (648 mm)
  • Nominal Weight (NRS): 226 lbs (103 kg)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • CSA Listed
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Certified to NSF/ANSI 61-G

FAQs

What is the primary application for the Febco LF850 Double Check Valve Assembly?

This assembly is primarily used for non-health hazard (pollutant) applications to prevent the backflow of objectionable, but not toxic, water into the potable supply due to backsiphonage or backpressure conditions.

Does this backflow preventer include shutoff valves?

No, this specific model is configured as "Less Shutoff Valves" (or "Less Gates"). Shutoff valves would need to be purchased separately if required for the installation.

What material is the body made from, and what kind of coating does it have?

The main valve body is made from ductile iron Grade 65-45-12. It features an ArmorTek® patented three-part advanced epoxy coating system applied to internal and external surfaces for superior corrosion protection.

What is the maximum operating pressure and temperature range for this device?

The maximum working pressure for the Febco LF850 is 175 psi (12.1 bar). It can operate continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Are special tools required to service the Febco LF850?

No, the assembly is designed for in-line serviceability and does not require any special tools for routine servicing of the check modules.
