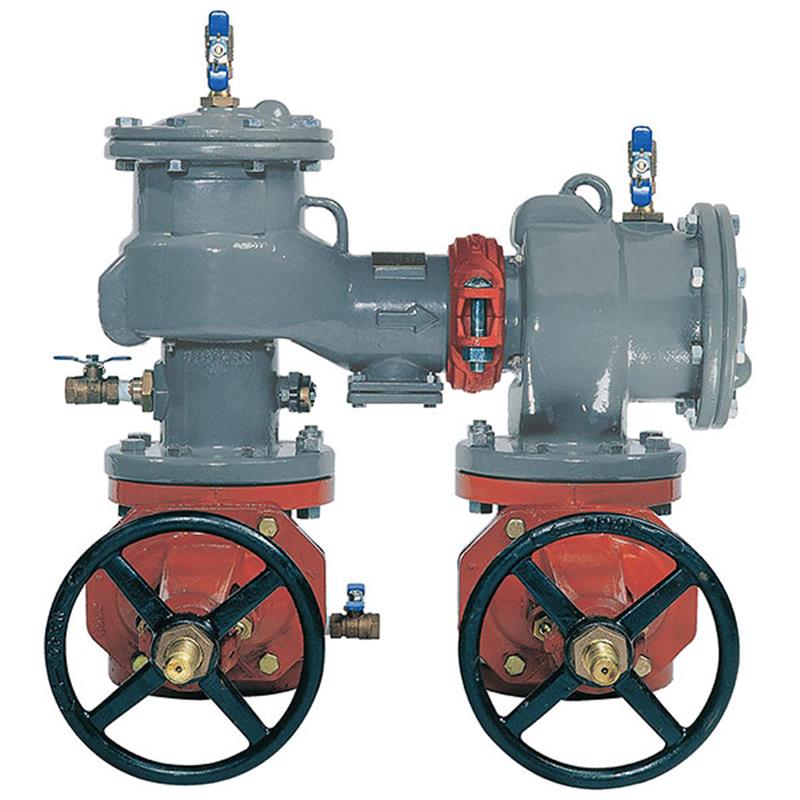

Febco 2 1/2" LF870V OS&Y Gates Valves

Item Number: 0683110
1 1
$7,845.49
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 2 1/2 inch
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek powder coating
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Shutoff Valves: OS&Y Resilient Wedge Gate
  • Lead-Free construction
  • ASSE 1015, UL Classified, FM Approved

Description

The Febco 2 1/2 inch LF870V Double Check Valve Assembly is a lead-free backflow preventer designed to protect potable water from pollution due to backsiphonage or backpressure. This MasterSeries® device features a durable ductile iron body with ArmorTek® epoxy coating for corrosion resistance and OS&Y resilient seated gate valves. It is approved to ASSE 1015, UL Classified, and FM Approved, suitable for continuous pressure applications. Its modular design allows for easy in-line maintenance, shipping in an N-pattern for horizontal flow but reconfigurable for vertical offset. Item number 0683110.

Help Me Connect

Installation Orientation

  • The LF870V is shipped in the standard N-Pattern orientation for horizontal flow.
  • It can be reconfigured for a vertical offset (Z-Pattern) installation where the flow is vertical up.

Connections

  • End connections are Standard Flange, compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.
  • Ensure compatibility with matching 2 1/2 inch flanged piping systems.
View full details

Additional Details

The Febco 2 1/2 inch LF870V Double Check Valve Assembly is a lead-free backflow preventer designed to protect potable water supply from pollution caused by backsiphonage and backpressure.

This MasterSeries® configurable device is suitable for continuous pressure piping applications and cross-connections identified as non-health hazards, preventing the entry of non-toxic contaminants.

Construction & Design

  • Features a ductile iron body with a patented ArmorTek® 3-part advanced epoxy coating system to limit microbial induced corrosion (MIC) and protect exposed metal substrate.
  • Equipped with domestic OS&Y (Outside Stem & Yoke) resilient seated gate valves.
  • Includes two in-line independent positive seating check modules with stainless steel components, captured springs, and replaceable check discs and seats.
  • The modular design facilitates easy in-line maintenance, requiring no special tools for servicing.
  • Ships in the standard N-Pattern orientation, but can be reconfigured for vertical offset patterns.
  • Includes top mounted test cocks.
  • Features a clapper check assembly with commonality between 1st and 2nd check components and a captured O-ring design.

Specifications

  • Size: 2 1/2 inch
  • Lay Length: 12.5 inches
  • Weight: 250 lbs

Materials

  • Main Valve Body: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek powder coating, applied to internal and external surfaces
  • Shutoff Valves: OS&Y resilient wedge gate valve AWWA C515 (UL Classified/FM Approved)
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Performance

  • Maximum Working Pressure: 175 psi
  • Minimum Working Pressure: 10 psi
  • Hydrostatic Test Pressure: 350 psi
  • Hydrostatic Safety Pressure: 700 psi
  • Temperature Range: 33°F - 140°F (continuous)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Certified to NSF/ANSI 61-G

FAQs

What type of backflow prevention does the Febco LF870V provide?

The Febco LF870V is a Double Check Valve Assembly, designed to prevent the backflow of polluted water from entering the potable water supply due to backsiphonage or backpressure from non-health hazard cross-connections.

What materials are used in the construction of this backflow preventer?

The main valve body is made from ductile iron (Grade 65-45-12) with ArmorTek powder coating. Check seats and springs are stainless steel, disc holders are stainless steel, and elastomer discs are silicone.

What is the maximum operating pressure and temperature range?

This assembly has a maximum working pressure of 175 psi and operates continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Can this backflow preventer be installed vertically?

Yes, while it ships in the standard N-Pattern for horizontal flow, the LF870V can be reconfigured for a vertical offset (Z-Pattern) installation where the flow is vertical up.

What certifications and approvals does the LF870V carry?

The Febco LF870V is ASSE 1015 listed, UL Classified, FM Approved, IAPMO, AWWA Standard C510 compliant, and certified to NSF/ANSI 61-G.
