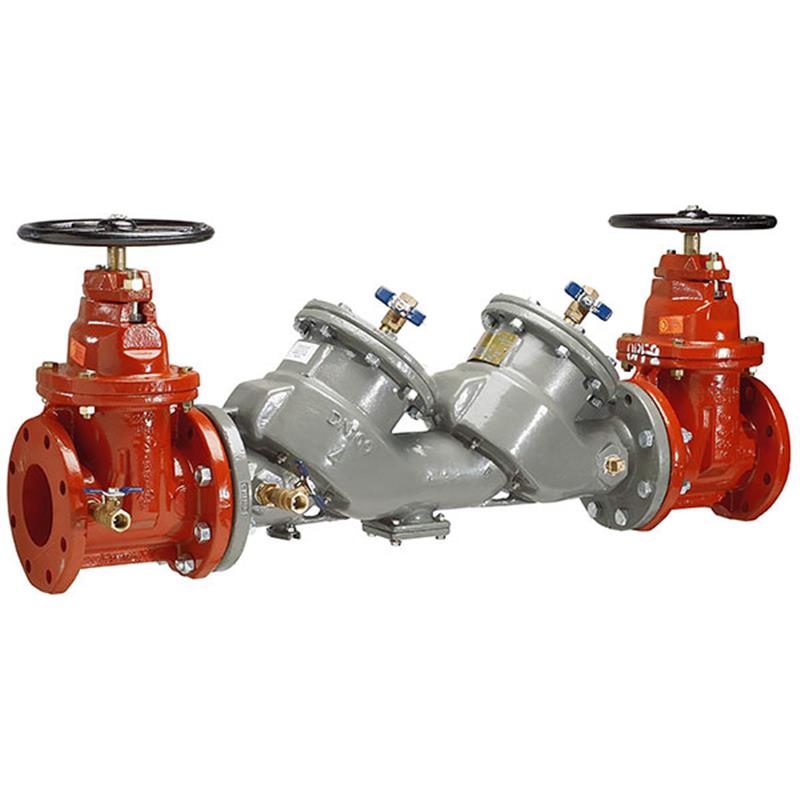

Febco 4" LF850 NRS Gate Valves

Item Number: 0124529
1 1
$7,901.42
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 4 inch
  • Lead Free construction
  • Ductile Iron Body Material: Grade 65-45-12
  • ArmorTek® epoxy coating for corrosion resistance
  • NRS (Non-Rising Stem) Shutoff Valves
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F Continuous
  • In-line serviceable assembly without special tools

Description

The Febco 4 inch LF850 MasterSeries Double Check Valve Assembly with NRS gate valves is designed to protect potable water supplies from non-health hazard pollutants. Its lead-free ductile iron body is coated with ArmorTek®, a patented three-part advanced epoxy system to resist microbial-induced and electrochemical corrosion. This assembly prevents backflow from backsiphonage and backpressure in non-toxic applications. It features flanged end connections, stainless steel check components, and is serviceable in-line without special tools. Rated for 175 psi maximum working pressure and a 33°F to 140°F temperature range. Item number 0124529.

Help Me Connect

Connections

  • The assembly features flanged end connections. These connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.

Flow Orientation

  • This double check valve assembly is approved for installation in both horizontal and vertical-up flow orientations.
View full details

Additional Details

This 4 inch lead free Febco MasterSeries LF850 Double Check Valve Assembly is an in-line design backflow preventer. It is specifically engineered for non-health hazard applications, preventing the backflow of pollutants that are objectionable but not toxic from entering the potable water supply due to backsiphonage and/or backpressure. It is ideal for protecting non-health hazard cross-connections or for containment at the service line entrance.

The assembly features an epoxy coated ductile iron body with flanged end connections, two in-line independent check valves, replaceable stainless steel check seats, test cocks, and Non-Rising Stem (NRS) resilient wedge gate valves. The coating utilizes ArmorTek®, a patented three-part advanced epoxy system, to limit microbial-induced corrosion (MIC) and protect exposed metal substrates. The LF850 series is designed for in-line serviceability, requiring no special tools for maintenance.

Please note: This is a non-stock, special order item and could take up to 2 weeks or more to deliver. All non-stock items are non-refundable, please be sure you order carefully. If you have ANY questions, please contact us before ordering.

Features

  • Lead Free construction complies with low lead installation requirements
  • ArmorTek® coating technology resists corrosion of internals
  • In-line serviceable assembly with no special tools required for servicing
  • Ductile iron valve body design with flanged end connections
  • Includes NRS resilient wedge gate valves
  • Stainless steel check components and replaceable seats
  • Captured modular spring assembly, reversible and replaceable discs, and captured O-ring design
  • Winterization feature with disc retainers and valve body drain ports
  • Clapper check assembly with commonality between 1st and 2nd check components

Specifications

  • Size: 4 inch
  • Product Type: Double Check Valve Assembly
  • Application: Non-Health Hazard (Pollutant)
  • Shutoff Valve Type: NRS (Non-Rising Stem) Resilient Wedge Gate Valves
  • Flow Orientation: Horizontal & Vertical Up
  • Lay Length: 46.25 inches
  • Weight: 435 lbs

Materials

  • Main Valve Body: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Powder Coating (applied to internal and external surfaces), AWWA C550
  • Check Seats: Stainless Steel
  • Disc Holder: Stainless Steel
  • Elastomer Disc: Silicone
  • Spring: Stainless Steel

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) Continuous

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • CSA Listed
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Certified to NSF/ANSI 61-G

FAQs

What is the primary application of the Febco 4" LF850 Double Check Valve Assembly?

This backflow preventer is designed for non-health hazard (pollutant) applications. It protects potable drinking water systems from backpressure and backsiphonage conditions where the pollutants are objectionable but not toxic.

What does the "Lead Free" construction mean?

The product's wetted surface contains less than 0.25% lead by weight. This complies with low lead installation requirements and relevant state codes and standards.

What is ArmorTek® coating, and what are its benefits?

ArmorTek® is a patented three-part advanced epoxy system applied to the ductile iron body. It is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates from electrochemical corrosion.

Are special tools required for servicing this backflow preventer?

No, the Febco LF850 is designed as an in-line serviceable assembly, and no special tools are required for routine maintenance or servicing of its check modules.

What type of shutoff valves are included with this assembly?

This model includes NRS (Non-Rising Stem) resilient wedge gate valves, which comply with AWWA C509 standards.
