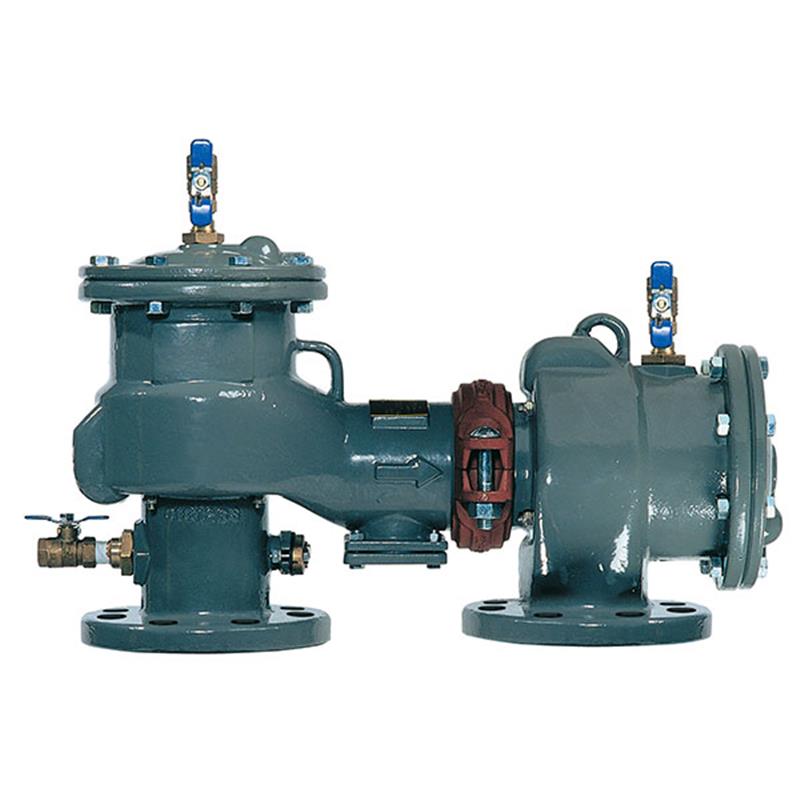

Febco 4" LF870V Less Gates

Item Number: 0124538
1 1
$5,802.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 4 inch Double Check Valve Assembly
  • Valves: Less Shutoff Gates
  • Ductile iron body with ArmorTek® coating
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Lead Free Compliant
  • Lay Length: 14 inch
  • ASSE 1015, UL, FM, IAPMO Approved

Description

The Febco 4 inch LF870V is a Lead Free Double Check Valve Assembly designed for non-health hazard applications, preventing backflow of pollutants into potable water systems. This assembly, supplied without shutoff gates, features an ArmorTek® epoxy-coated ductile iron body for enhanced corrosion resistance. It supports horizontal N-pattern or vertical Z-pattern installations and has flanged end connections. Key features include in-line serviceability, stainless steel check components, and compliance with ASSE 1015, UL, FM, and AWWA standards. The maximum working pressure is 175 psi, with a temperature range of 33°F to 140°F. Item number 0124538.

Help Me Connect

This FEBCO LF870V Double Check Valve Assembly is designed for installation on a potable water supply. The unit is typically shipped in a horizontal N-pattern orientation but can be reconfigured for vertical up Z-pattern installations. It features flanged end connections compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards. Ensure proper flange size and pressure class compatibility with your existing piping system.

View full details

Additional Details

This 4 inch lead free MasterSeries® configurable design double check valve backflow preventer assembly is designed for non-health hazard applications. It prevents the backflow of pollutants that are objectionable but not toxic, from entering into the potable water supply due to backsiphonage and/or backpressure.

The LF870V is an N-Pattern device that can be reconfigured for a vertical offset pattern. It features an epoxy coated, ductile iron body with bronze check assemblies and a two cover design with replaceable seats. No special tools are required for servicing the 870V series.

The assembly's ductile iron body is coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate. This product features Lead Free* construction, with the wetted surface contacted by consumable water containing less than 0.25% of lead by weight.

Features

  • In-line serviceable assembly
  • Horizontal N-pattern installations
  • Vertical up Z-pattern installations
  • No special tools required for servicing
  • Captured modular spring assembly
  • Reversible and replaceable discs
  • Field replaceable seats
  • Ductile iron valve body design
  • Stainless steel check components
  • ArmorTek coating technology to resist corrosion of internals
  • Winterization feature with disc retainers and valve body drain ports
  • Clapper check assembly
  • Commonality between 1st and 2nd check components
  • Captured O-ring design

Available options are listed below. This is a non-stock, special order item and could take up to 2 weeks or more to deliver. All non-stock items are non-refundable. Please be sure you order carefully. If you have ANY questions please contact us before ordering.

Specifications

General

  • Product Type: Double Check Valve Assembly
  • Valve Size: 4 inch
  • Valves Included: Less Shutoff Valves (Less Gates)
  • Body Material: Ductile iron Grade 65-45-12
  • Body Coating: ArmorTek® powder coating (internal and external), AWWA C550
  • Check Seat Material: Stainless steel
  • Disc Holder Material: Stainless steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless steel
  • Clamp Material: AWWA C606
  • Lay Length: 14 inch (356 mm)
  • Weight (NRS Valves): 320 lbs (145 kg)

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous

Connections

  • End Connections: Flanged
  • Flange Compliance: ASME B16.1 Class 125, AWWA Class D

Certificates & Approvals

  • Approved by The Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C510 Compliant
  • Lead Free Compliant (less than 0.25% lead content by wetted surface weight)

FAQs

What is the primary application of the Febco 4" LF870V Double Check Valve Assembly?

This assembly is designed for non-health hazard applications to protect potable drinking water systems from backpressure and backsiphonage of pollutants.

Does this assembly include shutoff valves?

No, this specific Febco 4" LF870V model is supplied "Less Gates," meaning it does not include shutoff valves.

What type of corrosion protection does this backflow preventer use?

The ductile iron body is coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.

Can this backflow preventer be installed in both horizontal and vertical orientations?

Yes, the LF870V is shipped in a standard horizontal N-pattern but can be reconfigured for vertical up Z-pattern installations.

Is this product Lead Free compliant?

Yes, it features Lead Free construction, with the wetted surface contacted by consumable water containing less than 0.25% of lead by weight.
