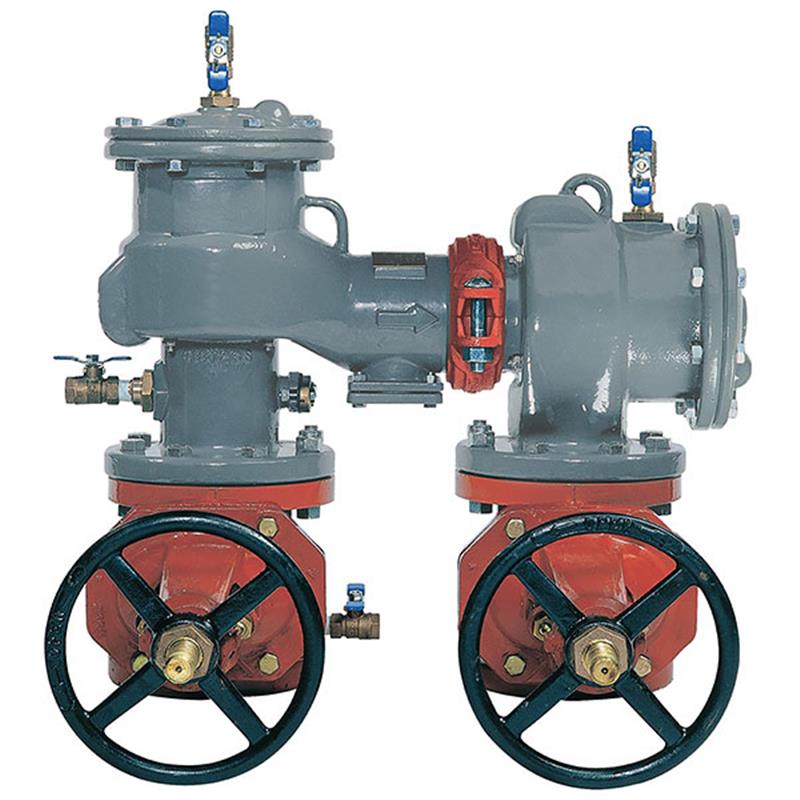

Febco 6" DOSY Gates Valves

Item Number: 0683113
1 1
$14,486.44
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Lead Free Construction: Contains less than 0.25% lead by weight
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Epoxy Coated (Internal & External)
  • Valve Type: OS&Y (Outside Stem & Yoke) Gate Valves
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F continuous
  • Approved for Horizontal (N-Pattern) and Vertical-Up (Z-Pattern) installations

Description

The Febco 6 inch LF870V MasterSeries Lead Free Double Check Valve Assembly protects potable water systems from non-health hazard backflow caused by backsiphonage or backpressure. Featuring a ductile iron body with ArmorTek epoxy coating for corrosion resistance, this 175 psi rated device includes OS&Y gate valves and stainless steel check components. It's designed for easy in-line servicing without special tools and is approved for both horizontal (N-pattern) and vertical-up (Z-pattern) installations. It complies with ASSE 1015, UL, FM, IAPMO, AWWA C510, and NSF/ANSI 61-G standards.

Help Me Connect

Connections

  • This 6 inch double check valve assembly is equipped with standard flange connections that are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.
  • It is designed for installation on potable water supply lines to protect against non-health hazard backflow conditions.
  • The assembly supports both horizontal (N-pattern) and vertical-up (Z-pattern) flow orientations, providing flexibility for various piping configurations.
View full details

Additional Details

The FEBCO 6 inch LF870V MasterSeries® Double Check Valve Assembly is designed to prevent the backflow of polluted water into the potable water supply due to backsiphonage or backpressure conditions. It is ideal for continuous pressure piping applications and at cross-connections identified as non-health hazards. This assembly is lead-free and features a compact, modular design for easy in-line maintenance.

Construction & Design

  • Features a ductile iron valve body (Grade 65-45-12) with a patented 3-part ArmorTek® advanced epoxy coating system, applied internally and externally, to resist microbial-induced corrosion (MIC) and protect exposed metal substrates.
  • Equipped with domestic OS&Y (Outside Stem & Yoke) resilient seated gate valves that are AWWA C515 compliant and UL Classified/FM Approved.
  • Two in-line independent clapper-style check modules with stainless steel components, field-replaceable seats, and reversible and replaceable silicone discs.
  • The design allows for servicing of check modules through independently top entry covers without special tools.
  • Includes four (4) properly located resilient seated test cocks.
  • Designed for winterization with disc retainers and valve body drain ports.
  • Commonality between 1st and 2nd check components with a captured O-ring design.

Installation & Orientation

  • Approved for both horizontal (N-pattern) and vertical-up (Z-pattern) installations.
  • The valve assembly is shipped in the standard N-pattern orientation, where inlet flow is vertical up and outlet flow is vertical down.

NOTICE: The information provided is not a substitute for complete product installation and safety instructions. Always read all instructions thoroughly before installation and inquire with local governing authorities for specific requirements.

Specifications

  • Product Type: Double Check Valve Assembly
  • Model: LF870V MasterSeries®
  • Size: 6 inch
  • Valve Type: OS&Y (Outside Stem & Yoke) Gate Valves
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Powder Coating (Internal & External)
  • Check Components: Stainless Steel
  • Check Seats: Stainless Steel
  • Disc Material: Silicone
  • Spring Material: Stainless Steel
  • Clamp: AWWA C606

Performance Ratings

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Dimensions & Weight (6 inch OS&Y)

  • Lay Length (C for N-Pattern): 18 7/8 inch (479 mm)
  • Weight: 810 lbs (367 kg)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • NSF Certified to NSF/ANSI 61-G

FAQs

What type of backflow protection does the LF870V provide?

The LF870V Double Check Valve Assembly is designed to protect potable water systems from backpressure and backsiphonage conditions where the potential contaminant is classified as a non-health hazard (pollutant).

What are the key materials used in the construction of this assembly?

The main valve body is made of ductile iron (Grade 65-45-12) with an ArmorTek® powder coating. It features stainless steel check components, stainless steel springs, and silicone elastomer discs.

Can this backflow preventer be installed vertically?

Yes, the LF870V is approved for both horizontal (N-pattern) and vertical-up (Z-pattern) installations, offering flexibility for different piping configurations.

What is the maximum operating pressure and temperature range for this device?

This assembly has a maximum working pressure of 175 psi (12.1 bar) and operates continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Does this product meet lead-free requirements?

Yes, the LF870V features Lead Free* construction, meaning the wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with low lead installation requirements.
