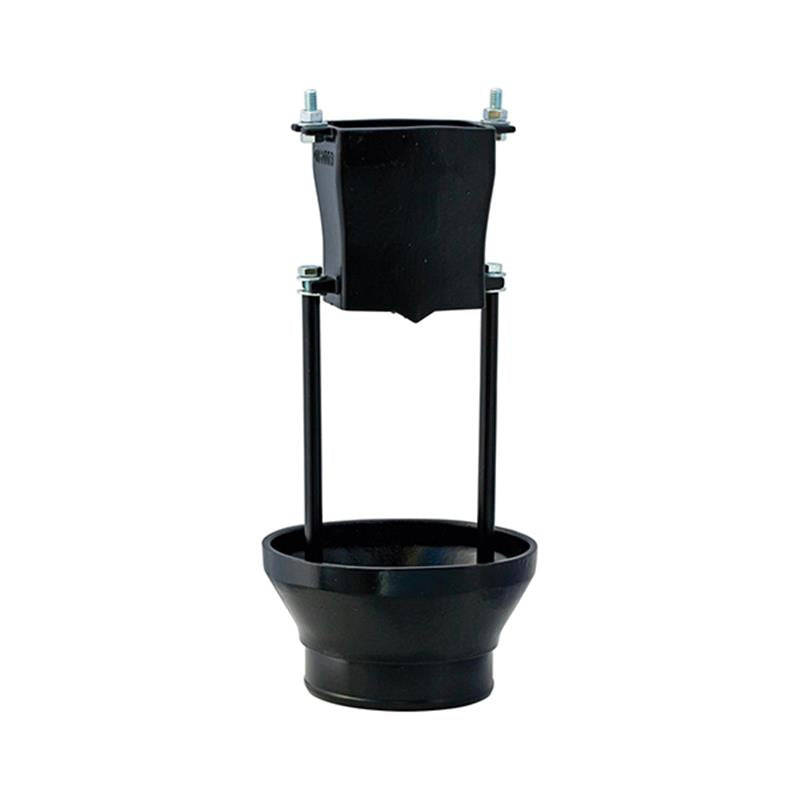

Febco 905-213 Air Gap Drain Fitting (Steel)

Item Number: 905213
1 1
$475.13
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco
  • For MasterSeries® Reduced Pressure Assemblies 2.5" to 10"
  • Weight: 2.6 lb
  • Material: Coated Aluminum
  • Funnel Outlet Size: 4 inch
  • Reduces side spray from relief valve discharges
  • Lightweight for easy installation
  • Corrosion resistant coating
  • Funnels minor relief valve discharges into drains
  • Overall Weight: 2.2 lb

Description

The Febco 601 Air Gap Drain (SKU 905213) is a coated aluminum fitting designed for MasterSeries® reduced pressure assemblies from 2.5 to 10 inches. It prevents water splashing by directing minor relief valve discharges due to pressure fluctuations or check valve fouling into a drain. Featuring a 4-inch funnel outlet for easy connection to drain piping, this lightweight and corrosion-resistant air gap drain helps maintain a clean area around backflow prevention devices. It is easy to install and suitable for non-health hazard applications.

Help Me Connect

Compatibility & Connections

  • This Febco Series 601 Air Gap Drain is specifically designed for use with Febco MasterSeries® Reduced Pressure Assemblies ranging in size from 2½ inches to 10 inches.
  • The air gap drain can be attached directly to the flood sensor on the relief valve of the backflow assembly.
  • The 4-inch funnel outlet is designed to accept a standard hubless pipe coupling, allowing for simple connection to 4-inch drainage piping.
View full details

Additional Details

The Febco Series 601 Air Gap Drain is designed for installation on the relief valve of MasterSeries® reduced pressure assemblies ranging from 2½ inches to 10 inches. It effectively catches and removes minor relief valve discharges caused by pressure fluctuations or minor check valve fouling, preventing water splashing and directing flow to a drain.

Features

  • Directs flow into the funnel with a nozzle design, reducing side spray.
  • Funnels minor relief valve discharges into drains.
  • Lightweight construction for easy installation.
  • Coated for corrosion resistance.
  • The 4-inch funnel outlet accommodates a hubless pipe coupling for simple drain pipe installation.

Materials

  • Nozzle: ASTM B26 Alloy 356 Aluminum
  • Funnel: ASTM B26 Alloy 356 Aluminum
  • Rod: ASTM B241 Alloy 6063 Coated Aluminum with Vitralon polyurethane coating black #88-1204 or equivalent.

NOTICE: This air gap drain is not designed to catch the maximum discharge possible from the relief valve. Always ensure the floor drain size is adequate to prevent water damage from catastrophic failure conditions. Do not reduce the size of the drain line from the air gap fitting.

Specifications

General

  • Brand: Febco
  • Series: 601
  • Application: Air Gap Drain for MasterSeries® Reduced Pressure Assembly
  • Compatible Assembly Sizes: 2½ inch to 10 inch

Construction & Dimensions

  • Overall Material: Coated Aluminum
  • Nozzle Material: ASTM B26 Alloy 356
  • Funnel Material: ASTM B26 Alloy 356
  • Rod Material: ASTM B241 Alloy 6063 Coating
  • Funnel Outlet Size: 4 inch
  • Overall Height (A): 13 1/8 inch (333 mm)
  • Width (B): 6 3/8 inch (162 mm)
  • Depth (C): 5 3/8 inch (137 mm)
  • Weight: 2.2 lb (1.0 kg)

FAQs

What is the primary purpose of the Febco 601 Air Gap Drain?

The primary purpose is to catch and direct minor relief valve discharges from MasterSeries® reduced pressure assemblies, preventing water splashing and funneling the discharge safely into a drain.

What sizes of backflow assemblies is this air gap drain compatible with?

This air gap drain is designed for use with MasterSeries® reduced pressure assemblies in sizes ranging from 2½ inches to 10 inches.

What material is the Febco 601 Air Gap Drain made from?

The Febco 601 Air Gap Drain is constructed from coated aluminum for corrosion resistance. Specifically, the nozzle and funnel are ASTM B26 Alloy 356, and the rod is ASTM B241 Alloy 6063.

How does the air gap drain connect to the drainage system?

The air gap drain features a 4-inch funnel outlet that is designed to accept a hubless pipe coupling, allowing for straightforward connection to 4-inch drainage piping.

Can this air gap drain handle major discharges from a catastrophic backflow assembly failure?

No, the Febco 601 Air Gap Drain is designed to manage normal, minor discharges and nuisance spitting. It is not intended to handle the maximum discharge possible from a catastrophic relief valve failure. The drain line and floor drain size should be adequately designed for such events.
