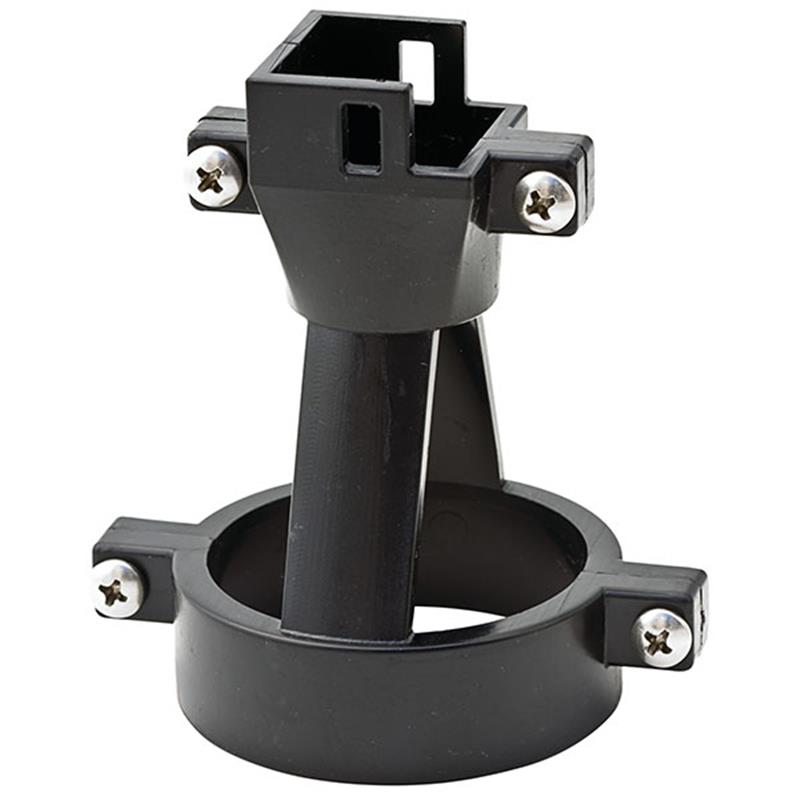

Febco 905-358 Air Gap Drain Fitting (Plastic)

Item Number: 905358
1 1
$46.69
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Febco Series: 601-P
  • Weight: 0.51 lb
  • Compatible Backflow Sizes: 1/2 to 1 inch
  • Funnel Material: Corrosion resistant ABS Plastic
  • Mounting Fasteners: Stainless steel
  • Drain Pipe Connection: 2 inch
  • Reduces water splashing
  • Funnels moderate relief valve discharge
  • Use with Febco 860/LF860 and 860U/LF860U Series

Description

The Febco 905-358 Series 601-P is an air gap drain designed for 1/2 to 1 inch Febco 860/LF860 and 860U/LF860U reduced pressure backflow assemblies. This corrosion-resistant ABS plastic funnel efficiently directs moderate relief valve discharge, preventing water splashing caused by pressure fluctuations or minor check valve fouling. It connects to a standard 2-inch drain pipe for safe disposal. Ideal for managing nuisance discharge, this lightweight fitting includes stainless steel mounting fasteners for secure installation. It is not suitable for Series 860 assemblies with flood sensors. Item number 905358.

Help Me Connect

Compatibility and Installation

This Febco Series 601-P air gap drain (model 905-358) is specifically designed for attachment to the relief valve port of 1/2 to 1 inch Febco Series 860/LF860 and 860U/LF860U reduced pressure assemblies. It is not compatible with Series 860 assemblies equipped with flood sensors. The drain provides a connection for a minimum 2 inch drain pipe. Attachment involves joining the drain funnel halves using the provided self-tapping screws, ensuring slots align over relief valve port tabs. Installation should always comply with local codes, and the assembly should be placed near an adequately sized floor drain if indoors.

  • Connects To: Relief valve port on Febco 860/LF860, 860U/LF860U (1/2" to 1")
  • Connects From: Discharges to a standard 2 inch drain pipe
  • Installation Note: Consult local codes; not for use with Series 860 flood sensor assemblies.
View full details

Additional Details

The Febco 905-358 Series 601-P air gap drain is designed for installation on 1/2 to 1 inch reduced pressure backflow assemblies to manage moderate relief valve discharge.

This drain helps prevent water splashing and directs discharge into a connected drain pipe, typically due to pressure fluctuations or minor check valve fouling.

Compatibility

  • For use with Febco Series 860/LF860 and 860U/LF860U reduced pressure assemblies from 1/2 to 1 inch
  • Note: This air gap drain is not designed for use on Series 860 assemblies with flood sensors.

Features

  • Reduces water splashing around the reduced pressure assembly
  • Funnels moderate relief valve discharge into a drain
  • Designed to fit a standard 2 inch drain pipe
  • Lightweight and constructed from corrosion-resistant ABS plastic

Important Considerations

This drain is intended to catch moderate relief valve discharges only. Under certain conditions, relief valves can discharge water at rates greater than the drain capacity. Consult local codes for installation requirements and proper drain pipe sizing to prevent water damage from catastrophic failure conditions. The drain funnel is a slip fit design and is not designed to support drainpipe weight.

Specifications

  • Product Series: FEBCO Series 601-P
  • Product Type: Air Gap Drain
  • Nominal Size Compatibility: 1/2 to 1 inch (for Reduced Pressure Assemblies)
  • Funnel Material: Corrosion resistant ABS Plastic
  • Mounting Fastener Material: Stainless Steel
  • Drain Pipe Connection Size: 2 inch (standard pipe)
  • Assembly Compatibility: Febco Series 860/LF860, 860U/LF860U

FAQs

What Febco backflow assemblies is this air gap drain compatible with?

This air gap drain is compatible with Febco Series 860/LF860 and 860U/LF860U reduced pressure assemblies ranging from 1/2 to 1 inch in size.

What is the primary purpose of the Febco 905-358 air gap drain?

Its primary purpose is to catch and funnel moderate relief valve discharge into a drain, reducing water splashing around reduced pressure assemblies. This typically occurs due to minor check valve fouling or pressure fluctuations.

What material is the air gap drain made from?

The funnel of the air gap drain is made from corrosion-resistant ABS plastic, and it includes stainless steel mounting fasteners for durability.

What size drain pipe does this air gap drain connect to?

This air gap drain is designed to fit a standard 2-inch drain pipe for discharge. Smaller diameter drain pipes are not recommended to prevent potential overflow.

Can this air gap drain be used with Febco Series 860 assemblies that have flood sensors?

No, this air gap drain is specifically not designed for use on Series 860 assemblies equipped with flood sensors.
