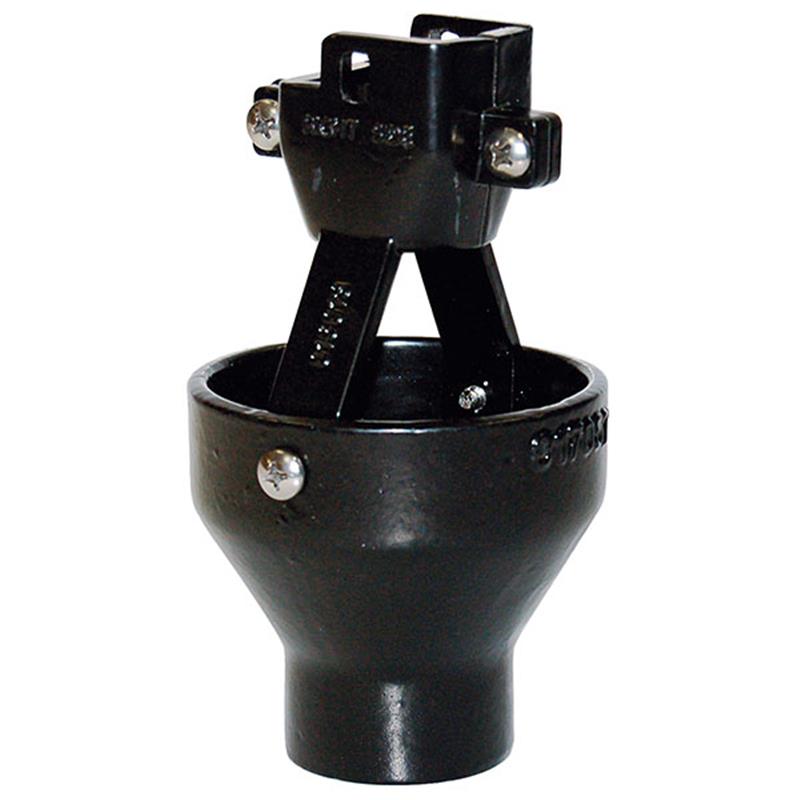

Febco 905-532 Air Gap Drain Fitting (Steel)

Item Number: 905532
1 1
$345.37
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Model: Series 601-M
  • Use with 1/2 to 1 inch Febco 860/LF860 Series
  • Funnels moderate relief valve discharge
  • Reduces water splashing
  • Funnel Material: ASTM A48
  • Funnel Connector Material: ASTM B26 Alloy 356
  • Coating: Vitralon polyurethane, black
  • Drain Connection: 1 inch Female NPT

Description

The Febco 905-532 Series 601-M air gap drain fitting provides a crucial connection for 1/2 to 1 inch Febco 860/LF860 and 860U/LF860U reduced pressure backflow preventers. Constructed with a durable ASTM A48 funnel and ASTM B26 Alloy 356 connector, this metal drain fitting is coated with black Vitralon polyurethane for corrosion resistance. It effectively funnels moderate relief valve discharge from pressure fluctuations or minor check valve fouling, reducing splashing. The unit features a 1 inch Female NPT connection for direct piping to a drain, ensuring proper water management in non-health hazard applications.

Help Me Connect

Backflow Assembly Connection

  • The air gap drain attaches directly to the relief valve port of 1/2 inch to 1 inch Febco Series 860/LF860 and 860U/LF860U reduced pressure backflow assemblies. Use the provided self-tapping screws to join the funnel halves over the tabs on the relief valve port.

Drain Pipe Connection

  • The bottom of the air gap drain features a 1 inch Female NPT connection for piping discharge to a suitable drain. Ensure the drain line diameter is not reduced from the air gap fitting.
View full details

Additional Details

The Febco Series 601-M Air Gap Drain is designed for installation on 1/2 to 1 inch reduced pressure assemblies to manage moderate relief valve discharge.

This metal drain fitting reduces water splashing and funnels discharge from backflow prevention devices into a drain, specifically for Series 860/LF860 and 860U/LF860U models experiencing pressure fluctuations or minor check valve fouling.

Features

  • Reduces water splashing around the reduced pressure assembly.
  • Funnels moderate relief valve discharge directly into a drain.
  • Constructed of corrosion-resistant material with stainless steel mounting fasteners.
  • Designed for non-health hazard applications.

A CAUTION: This drain is intended to catch moderate relief valve discharges. Under certain conditions, relief valves can discharge water at rates greater than the drain capacity. Consult local codes for installation requirements.

Specifications

  • Model: Series 601-M
  • Drain Compatibility: For 1/2 to 1 inch Febco Series 860/LF860 and 860U/LF860U Reduced Pressure Assemblies
  • Funnel Material: ASTM A48
  • Funnel Connector Material: ASTM B26 Alloy 356
  • Coating: Vitralon polyurethane, black (Epoxy coated)
  • Mounting Fasteners: Stainless Steel
  • Drain Connection: 1 inch Female NPT

FAQs

What Febco backflow preventer models is this air gap drain compatible with?

This air gap drain is designed for use with Febco Series 860/LF860 and 860U/LF860U reduced pressure assemblies in sizes from 1/2 inch to 1 inch.

What is the primary purpose of this air gap drain fitting?

Its primary purpose is to catch and funnel moderate relief valve discharge caused by pressure fluctuations or minor check valve fouling, directing it safely into a drain and reducing splashing.

What are the main materials used in the construction of this air gap drain?

The funnel is made from ASTM A48 material, and the funnel connector is ASTM B26 Alloy 356. It features stainless steel mounting fasteners and is coated with black Vitralon polyurethane (epoxy).

What size drain pipe connection does this air gap drain have?

The bottom of this air gap drain fitting features a 1 inch Female NPT threaded connection for easy attachment to a drain pipe.

Can this air gap drain handle maximum discharge from a relief valve?

No, this air gap drain is designed for moderate relief valve discharges only, such as those resulting from pressure fluctuations or minor check valve fouling. It is not intended for catastrophic failure conditions.
