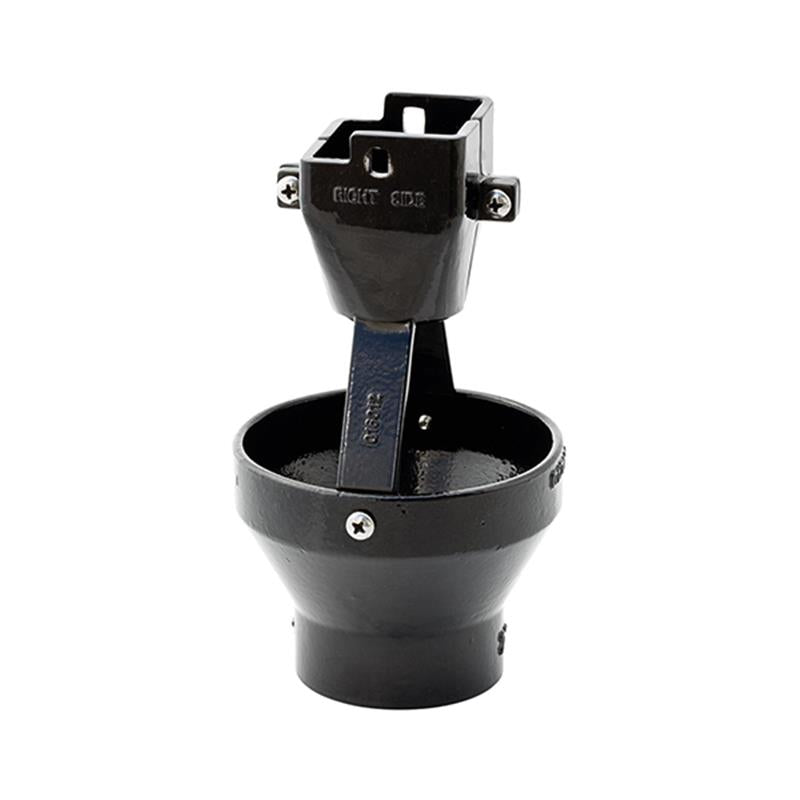

Febco 905-533 Air Gap Drain Fitting (Aluminum)

Item Number: 905533
1 1
$219.01
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Compatible with 1 1/4 to 2 inch Febco 860/LF860 and 860U/LF860U assemblies
  • Weight: 1.48 lb
  • Reduces water splashing from relief valve discharge
  • Funnels moderate relief valve discharge into drain
  • Funnel Connector Material: ASTM B26 Alloy 356 (Aluminum)
  • Funnel Material: ASTM A48 (Grey Iron)
  • Coating: Vitration Polyurethane, Black
  • Connects to standard 1 inch and 2 inch drain pipes
  • Includes stainless steel mounting fasteners

Description

The Febco 601-M Air Gap Drain is an aluminum and grey iron fitting designed for 1 1/4 to 2 inch Febco Series 860/LF860 and 860U/LF860U reduced pressure assemblies. It is engineered to catch and funnel moderate relief valve discharge, preventing water splashing around the assembly area and directing flow safely into a drain. Constructed with corrosion-resistant materials including an ASTM B26 Alloy 356 (aluminum) funnel connector and ASTM A48 (grey iron) funnel with black polyurethane coating, it offers durability and reliable performance for backflow prevention systems. It connects to standard 1 or 2 inch drain pipes.

Help Me Connect

This air gap drain fitting is designed to attach directly to the relief valve discharge port of a compatible reduced pressure assembly. It secures to the backflow device using self-tapping screws and is positioned so the drain funnel is located over the tabs on the relief valve port.

  • Ensure the air gap drain size is appropriate for your backflow assembly.
  • Mount the drain funnel adjacent to the backflow assembly, near a floor drain if possible.
  • After installing your backflow assembly and piping, attach the drain funnel to the relief valve discharge on ports 2.1.
  • Use the supplied self-tapping screws to make sure the slots in the drain funnel are aligned over the tabs on the relief valve port.
  • The bottom of the funnel is designed to connect to standard 1 inch or 2 inch drain pipes for safe discharge.
View full details

Additional Details

The Febco 601-M Air Gap Drain is designed for installation on Febco Series 860/LF860 and 860U/LF860U reduced pressure assemblies with sizes from 1 1/4 to 2 inches. This drain fitting effectively catches moderate relief valve discharge caused by pressure fluctuations or minor check valve fouling, funneling it safely into a drain pipe.

The unit reduces water splashing around the backflow assembly, protecting the surrounding area and directing discharge to a safe location. This model features a corrosion-resistant construction and is equipped with stainless steel mounting fasteners.

Features

  • Reduces the amount of water splashing in the area of the reduced pressure assembly.
  • Funnels moderate relief valve discharge into the drain.
  • Designed to fit standard 1 inch and 2 inch drain pipes for discharge.
  • Attaches to the relief port of compatible reduced pressure assemblies.

Safety Warning: This drain is intended to catch moderate relief valve discharges only. Under certain conditions, relief valves can discharge water at rates greater than the drain's capacity, which could lead to water damage.

Specifications

  • Series: 601-M
  • Product Type: Air Gap Drain Fitting
  • Compatible Backflow Assemblies: Febco Series 860/LF860 and 860U/LF860U
  • Backflow Assembly Sizes: 1 1/4 to 2 inch
  • Funnel Material: ASTM A48 (Grey Iron)
  • Funnel Connector Material: ASTM B26 Alloy 356 (Aluminum)
  • Coating: Vitration Polyurethane, Black
  • Mounting Fasteners: Stainless Steel
  • Drain Pipe Connection: Standard 1 inch and 2 inch

FAQs

What reduced pressure assemblies is the Febco 601-M Air Gap Drain compatible with?

This air gap drain is specifically designed for installation on Febco Series 860/LF860 and 860U/LF860U reduced pressure assemblies. It is compatible with backflow assembly sizes ranging from 1 1/4 to 2 inches.

What is the primary function of this air gap drain fitting?

Its primary function is to catch and funnel moderate relief valve discharge, preventing water splashing in the area around the reduced pressure assembly. It directs the discharge safely into a connected drain pipe.

What materials is the Febco 601-M Air Gap Drain made from?

The funnel is constructed from ASTM A48 (Grey Iron), and the funnel connector is made from ASTM B26 Alloy 356 (Aluminum). The entire unit features a Vitration polyurethane black coating and includes stainless steel mounting fasteners for corrosion resistance.

What size drain pipes can this air gap drain connect to?

The Febco 601-M Air Gap Drain is designed to connect to standard 1 inch and 2 inch drain pipes for the safe disposal of relief valve discharge.

What should I be aware of regarding discharge capacity?

This drain is intended for moderate relief valve discharges. It's important to note that under certain conditions, relief valves can discharge water at rates greater than the drain's capacity, potentially leading to water damage.
