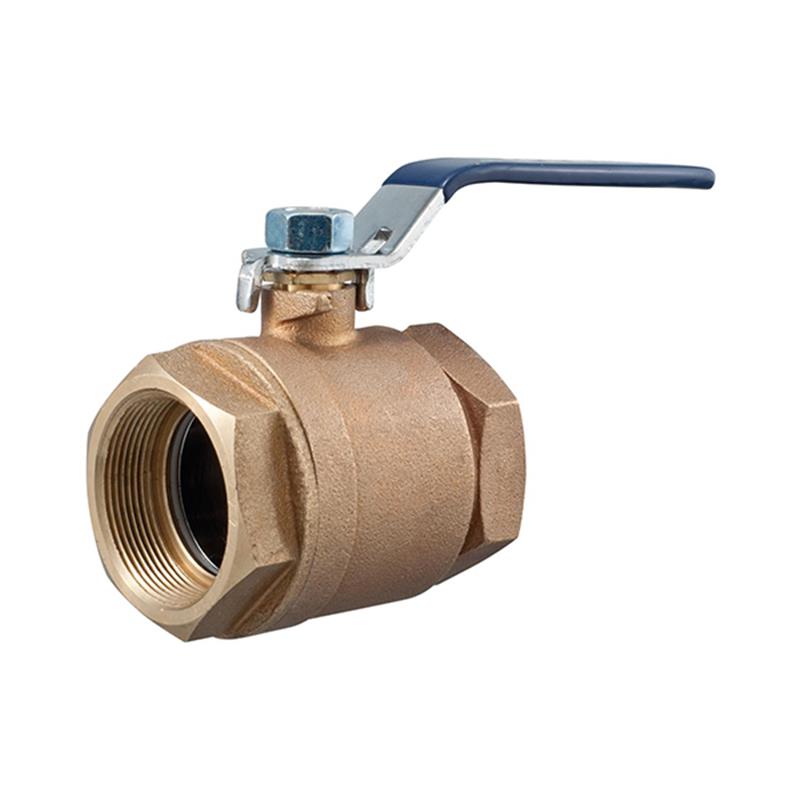

Febco LF622 2" IPS Ball Valve QT

Item Number: 781052LL
Skip to product information
1 of 1
Regular price $259.88
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco

  • Valve Size: 2 inch
  • Weight: 5.2 lb
  • Connection Type: Female NPT Threaded
  • Port Type: Full Port
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Maximum Operating Pressure (WOG): 600 PSI
  • Maximum Operating Pressure (WSP): 125 PSI
  • Lever handle for quarter-turn operation

Description

The Febco LF622 2 inch full port ball valve is designed for non-health hazard water service applications. Its lead-free cast copper silicon alloy body, chrome-plated brass ball, and PTFE seats ensure durable, low-pressure drop operation. This valve is ideal for throttling and balancing nonabrasive fluids, providing reliable quarter-turn control. Rated for 600 PSI WOG (water, oil, gas, non-shock) and 125 PSI WSP (saturated steam), it offers a robust solution for industrial and commercial water lines. Item number 781052LL.

Help Me Connect

Connections

  • The 2 inch Female NPT (National Pipe Taper) threaded connections are designed to connect to 2 inch Male NPT threads.

Compatibility

  • This valve is suitable for water service applications.
  • It is ideal for throttling and balancing nonabrasive fluids where the minimum flow is 20% to 100% of the valve's capacity.
  • This valve is intended for non-health hazard applications.

Warranty Information

Limited Warranty FEBCO warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. THE WARRANTY SET FORTH HEREIN IS GIVEN EXPRESSLY AND IS THE ONLY WARRANTY GIVEN BY THE COMPANY WITH RESPECT TO THE PRODUCT. THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE COMPANY HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for breach of warranty, and the Company shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if this product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control. This warranty shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the product. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable state laws to determine your rights. SO FAR AS IS CONSISTENT WITH APPLICABLE STATE LAW, ANY IMPLIED WARRANTIES THAT MAY NOT BE DISCLAIMED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL SHIPMENT. Service Policy For inoperative products beyond the warranty period, we assume no liability for replacement of valves due to service conditions beyond our control.
View full details

Collapsible content

Additional Details

This Febco LF622 2 inch full port ball valve is designed for non-health hazard water service applications, offering reliable quarter-turn control. Its full port design minimizes pressure drop, making it suitable for throttling and balancing nonabrasive fluids.

Features

  • Lead Free* construction: Wetted surface contains less than 0.25% lead by weight
  • Full port design for low pressure drop and unrestricted flow
  • Quarter-turn operation with a lever handle
  • Ideal for throttling and balancing of nonabrasive fluids where minimum flow is 20% to 100% of valve capacity
  • Equipped with PTFE stem packing seal, thrust washer, and seats for durability
  • Pressure rated at 600 PSI WOG (water, oil, gas, non-shock)
  • Pressure rated at 125 PSI WSP (saturated steam)

Construction Materials

  • Body: Lead Free* Cast Copper Silicon Alloy (Bronze)
  • Ball: Chrome Plated Lead Free* Brass
  • Stem: Brass
  • Seats & Packing: PTFE
  • Handle: Plated Steel with Vinyl Insulator

Specifications

  • Valve Size: 2 inch
  • Connection Type: Female NPT Threaded
  • Port Type: Full Port
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Ball Material: Chrome Plated Lead Free* Brass
  • Stem Material: Brass
  • Seat Material: PTFE
  • Packing Material: PTFE
  • Handle Material: Plated Steel with Vinyl Insulator
  • Maximum Operating Pressure (WOG, non-shock): 600 PSI (41.3 bar)
  • Maximum Operating Pressure (WSP, saturated steam): 125 PSI (8.6 bar)
  • Operating Temperature Range: 32°F to 350°F (0°C to 177°C) at 600 PSI

Certificates & Approvals

  • Lead Free* Compliant: Wetted surface contains less than 0.25% lead by weight
  • Designed for use in general application WMC, PEX, Type II, Composition, B2, Style 3, End Connection A

FAQs

What type of applications is this valve suitable for?

This Febco LF622 ball valve is designed for water service applications, including throttling and balancing nonabrasive fluids. It is specifically intended for non-health hazard applications.

What is the maximum pressure rating for this valve?

The valve is rated for a maximum operating pressure of 600 PSI WOG (water, oil, gas, non-shock) and 125 PSI WSP (saturated steam).

Is this a full port valve?

Yes, this is a full port ball valve. This design ensures a low pressure drop and provides unrestricted flow through the valve.

What materials are used in the construction of this valve?

The valve features a Lead Free* Cast Copper Silicon Alloy body, a Chrome Plated Lead Free* Brass ball, a brass stem, and PTFE seats and stem packing. The handle is made of plated steel with a vinyl insulator.

Does this valve meet lead-free requirements?

Yes, the wetted surface of this product contains less than 0.25% of lead by weight, making it compliant with lead-free standards. However, it is specified for non-health hazard applications.
